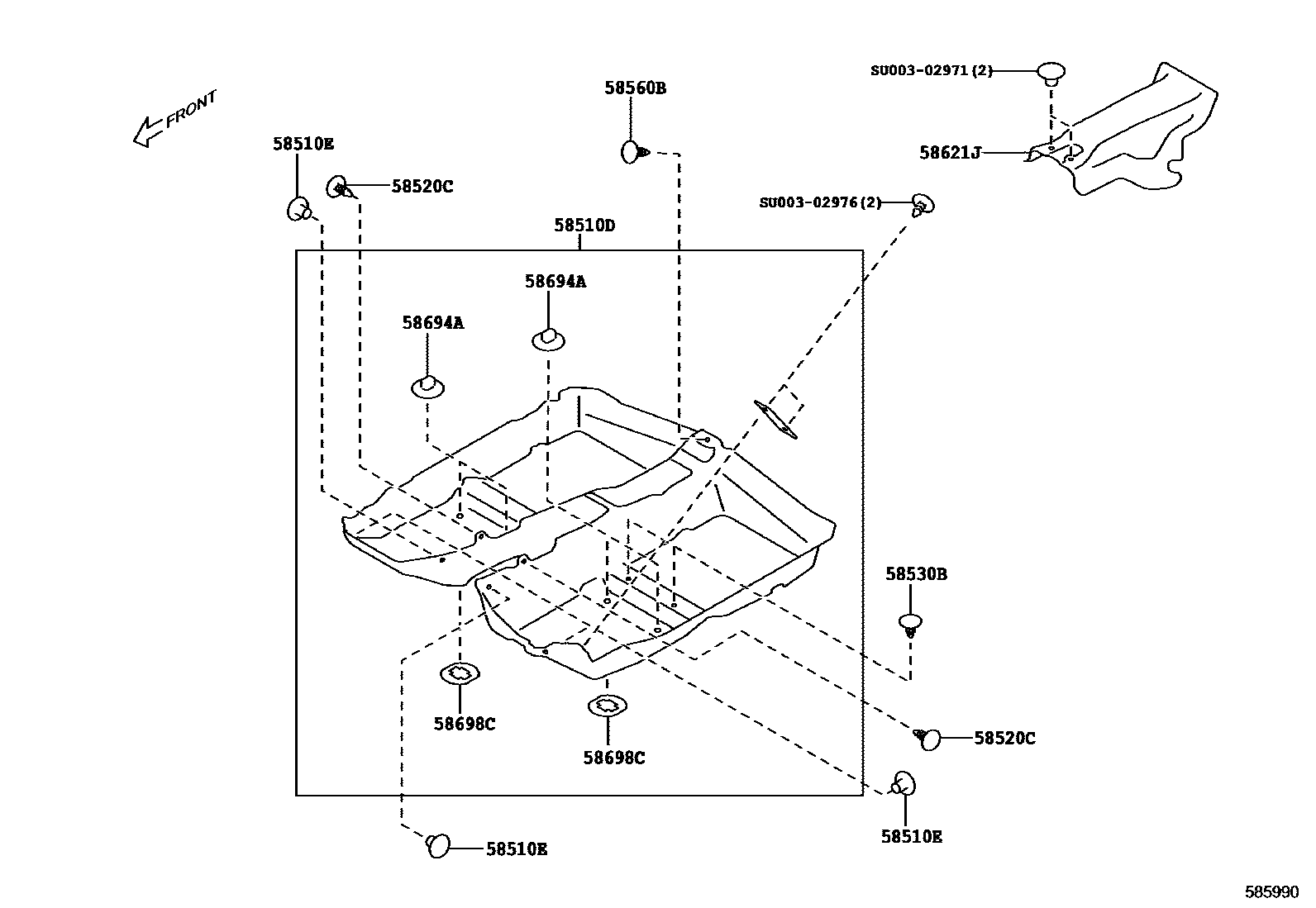

Toyota 86 — MAT & CARPET

58510DCARPET ASSY, FLOOR, FRONT

mainSU00304927i201607-201711

BLACK,TRIM2#,3#

58510ERETAINER, FLOOR CARPET

mainSU00303328×4i201607-201711

MAT GRAY,TRIM2#,3#

58520CCLIP(FOR FRONT FLOOR CARPET)

mainSU00302972×2i201607-201711

58530BCLIP(FOR FRONT FLOOR CARPET)

mainSU00303344×2i201607-201711

58560BCLIP(FOR FLOOR CARPET, REAR)

mainSU00303344i201607-201711

58621JSILENCER, CENTER CONSOLE, NO.1

mainSU00303339i201711-201806

BLACK

mainSU00306700i201607-201711

BLACK,TRIM2#

mainSU00306701i201807-201907

BLACK,TRIM3#

mainSU00307381i201607-201711

BLACK

mainSU00308128i201908-202012

BLACK

58694APLATE, MAT SET, UPPER

mainSU00303342×4i201607-201711

58698CPLATE, MAT SET, LOWER

mainSU00303343×4i201607-201711

SU00302971

mainSU003-02971

SU00302976

mainSU003-02976

10 parts on this diagram · 3 diagrams in section

MAT & CARPET for Toyota 86

This section contains 25 genuine Toyota parts for the MAT & CARPET system of the Toyota 86. Key components include: FLOOR PAN & LOWER BACK PANEL, PAD, FRONT FLOOR, CARPET ASSY, FLOOR, FRONT, RETAINER, FLOOR CARPET, MAT, FLOOR, FRONT RH.
