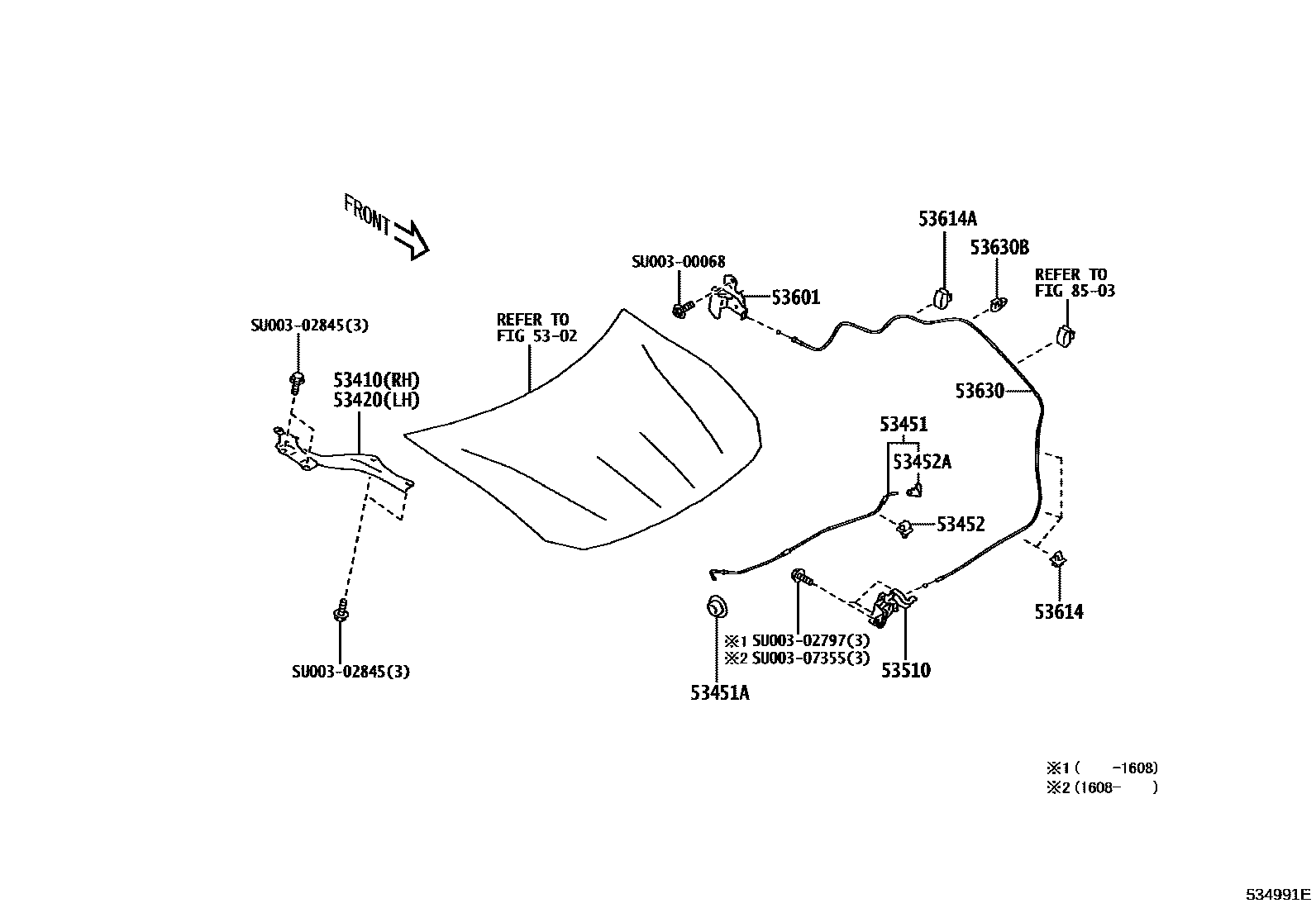

Toyota 86 — HOOD LOCK & HINGE

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

53410HINGE ASSY, HOOD, RH

mainSU00301399i201607-201711

53420HINGE ASSY, HOOD, LH

mainSU00301400i201607-201711

53451ROD, HOOD SUPPORT

mainSU00301395i201607-201711

53451AGROMMET(FOR HOOD SUPPORT ROD)

mainSU00303012i201607-201711

53452HOLDER, HOOD STAY

mainSU00303010i201607-201711

53452AHOLDER, HOOD STAY

mainSU00307454i201607-201711

53510LOCK ASSY, HOOD

mainSU00301402i201607-201608

mainSU00306314i201608-201711

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

mainSU00301410i201607-201711

53614CLAMP, HOOD LOCK CONTROL CABLE

mainSU00301413×3i201607-201711

53614ACLAMP, HOOD LOCK CONTROL CABLE, NO.1

mainSU00303006i201607-201711

53630CABLE ASSY, HOOD LOCK CONTROL

mainSU00301403i201607-201711

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

mainSU00302691i201607-201711

8503WINDSHIELD WASHER

→ Go to FIG 85-03

SU00300068

mainSU003-00068

SU00302797

mainSU003-02797

SU00302845

mainSU003-02845

SU00307355

mainSU003-07355

18 parts on this diagram · 1 diagram in section

HOOD LOCK & HINGE for Toyota 86

This section contains 18 genuine Toyota parts for the HOOD LOCK & HINGE system of the Toyota 86. Key components include: HOOD & FRONT FENDER, HINGE ASSY, HOOD, RH, HINGE ASSY, HOOD, LH, ROD, HOOD SUPPORT, GROMMET(FOR HOOD SUPPORT ROD).
