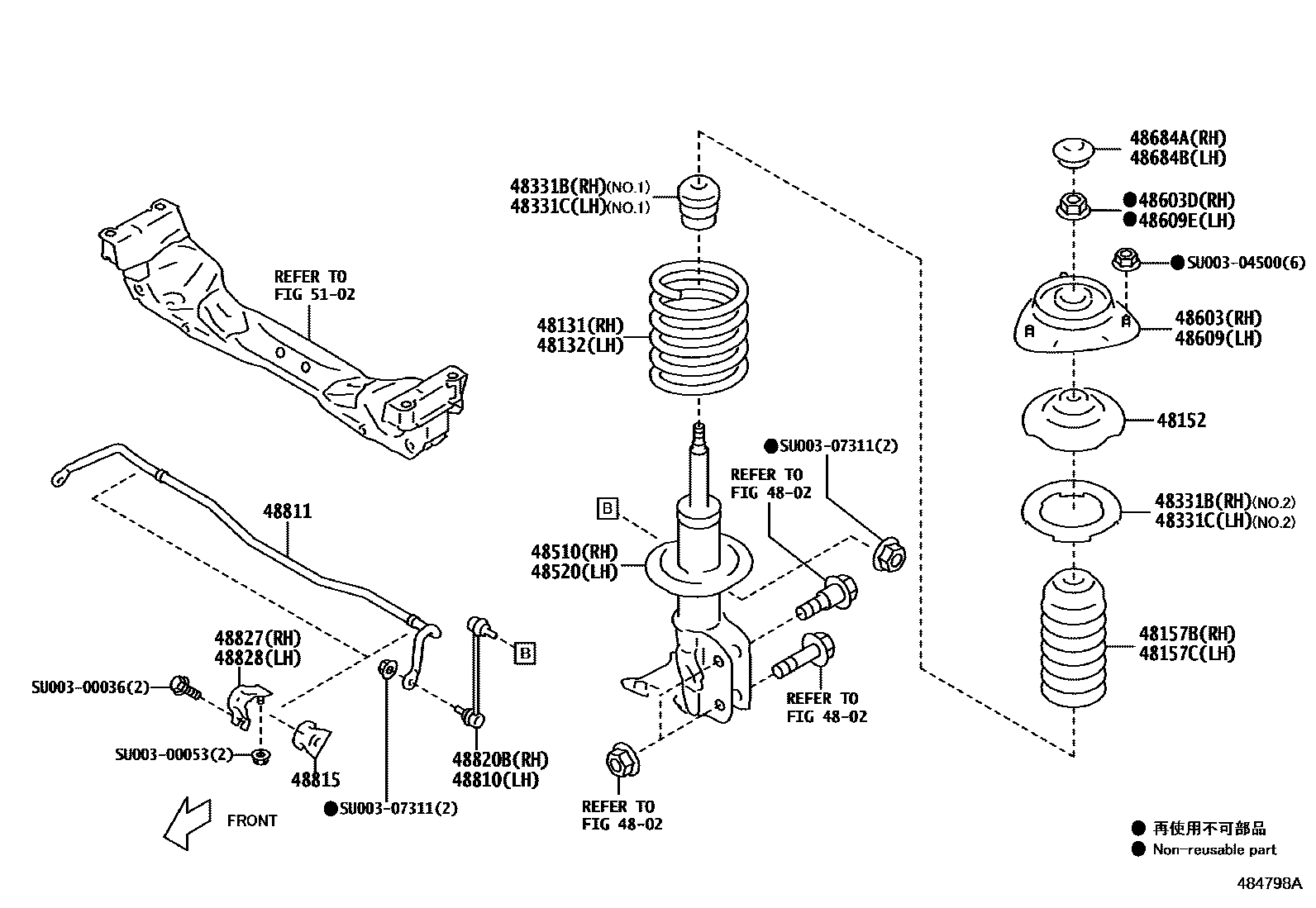

Toyota 86 — FRONT SPRING & SHOCK ABSORBER
4802
48152SEAT, FRONT SPRING
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
48331BBUMPER, FRONT SPRING, RH
OPTION CODE=MC,NO.1:REFER ILLUST.
OPTION CODE=NC,NO.2:REFER ILLUST.
48331CBUMPER, FRONT SPRING, LH
OPTION CODE=MC,NO.1:REFER ILLUST.
OPTION CODE=NC,NO.2:REFER ILLUST.
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK 20310-CA140
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK 20310-CA150,OPTION CODE=DK
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
subSU003-09509
48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
subSU003-09509
48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH
48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH
48810LINK ASSY, FRONT STABILIZER, LH
48811BAR, STABILIZER, FRONT
48815BUSH, FRONT STABILIZER BAR, NO.1
48820BLINK ASSY, FRONT STABILIZER, RH
48827BRACKET, FRONT STABILIZER, NO.2 RH
48828BRACKET, FRONT STABILIZER, NO.2 LH
5102
SU00300036
mainSU003-00036
SU00300053
mainSU003-00053
SU00304500
mainSU003-04500
SU00307311
mainSU003-07311
27 parts on this diagram · 1 diagram in section
