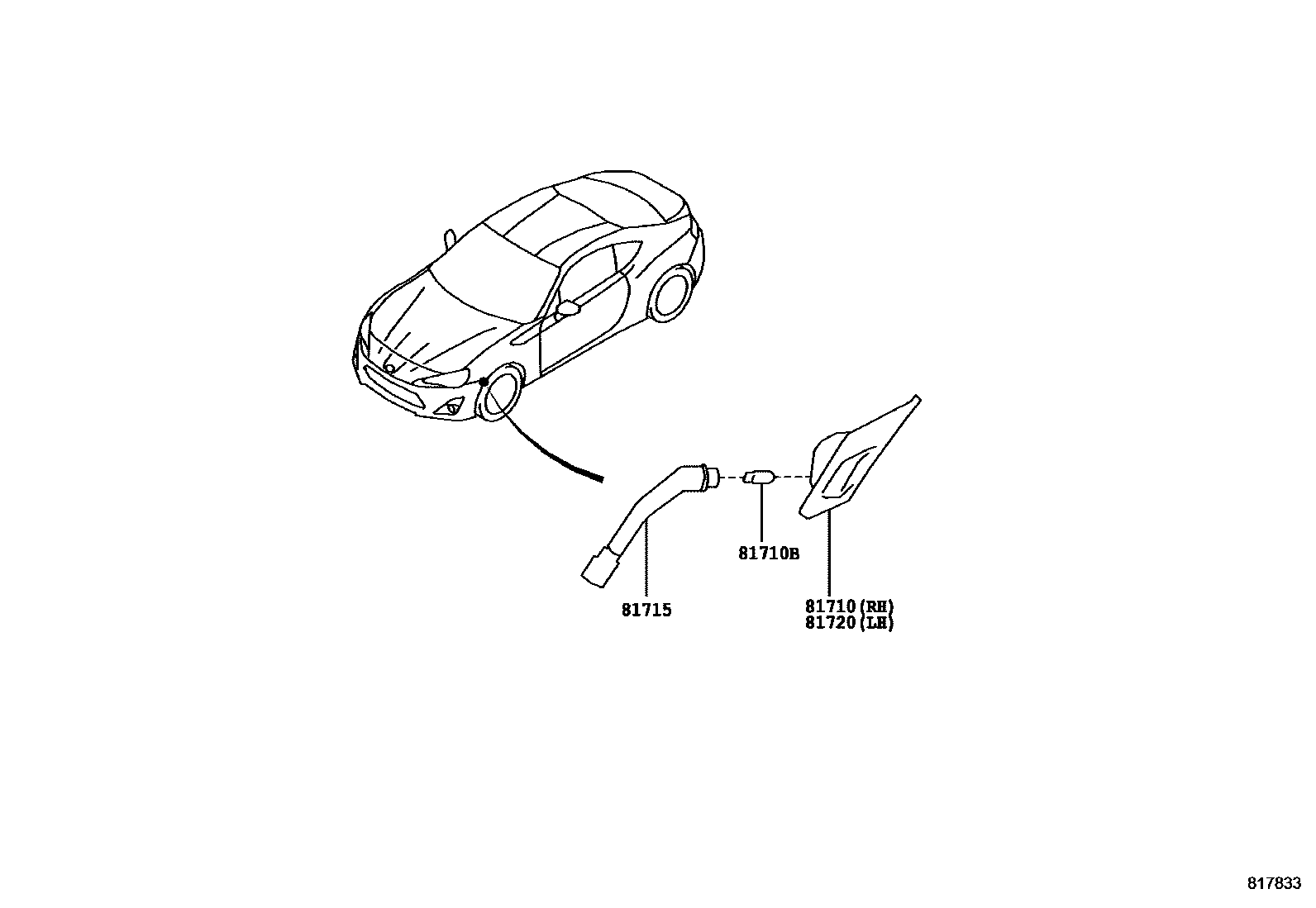

Toyota 86 — FRONT MARKER LAMP

81710LAMP ASSY, FRONT MARKER, RH

mainSU00302540i201711-201806

81710BBULB, FRONT MARKER LAMP

mainSU00301985×2i201607-201711

12V 3.8W

81715SOCKET & WIRE, FRONT MARKER LAMP

mainSU00302580i201711-201806

mainSU00302581i201807-201907

81720LAMP ASSY, FRONT MARKER, LH

mainSU00302541i201607-201711

4 parts on this diagram · 1 diagram in section

FRONT MARKER LAMP for Toyota 86

This section contains 4 genuine Toyota parts for the FRONT MARKER LAMP system of the Toyota 86. Key components include: LAMP ASSY, FRONT MARKER, RH, BULB, FRONT MARKER LAMP, SOCKET & WIRE, FRONT MARKER LAMP, LAMP ASSY, FRONT MARKER, LH.
