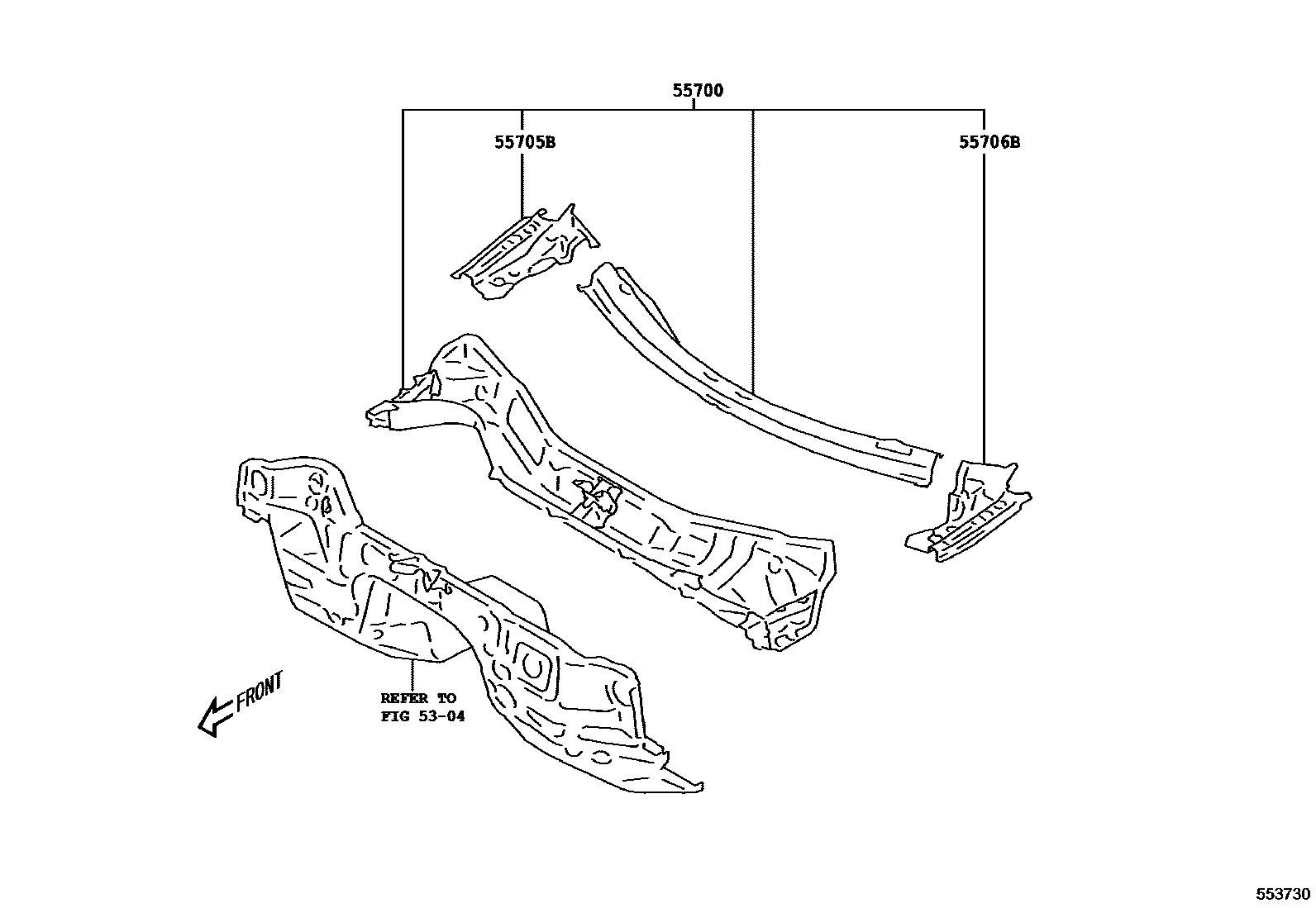

Toyota 86 — COWL PANEL & WINDSHIELD GLASS

5304FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-04

55700PANEL ASSY, FRONT

mainSU00301236i201607-201711

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

mainSU00301237i201607-201711

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

mainSU00301238i201607-201711

4 parts on this diagram · 3 diagrams in section

COWL PANEL & WINDSHIELD GLASS for Toyota 86

This section contains 22 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota 86. Key components include: HOOD & FRONT FENDER, FRONT FENDER APRON & DASH PANEL, SEAL, HOOD TO COWL TOP, SEAL, FRONT FENDER TO COWL SIDE, RH, SEAL, FRONT FENDER TO COWL SIDE, LH.
