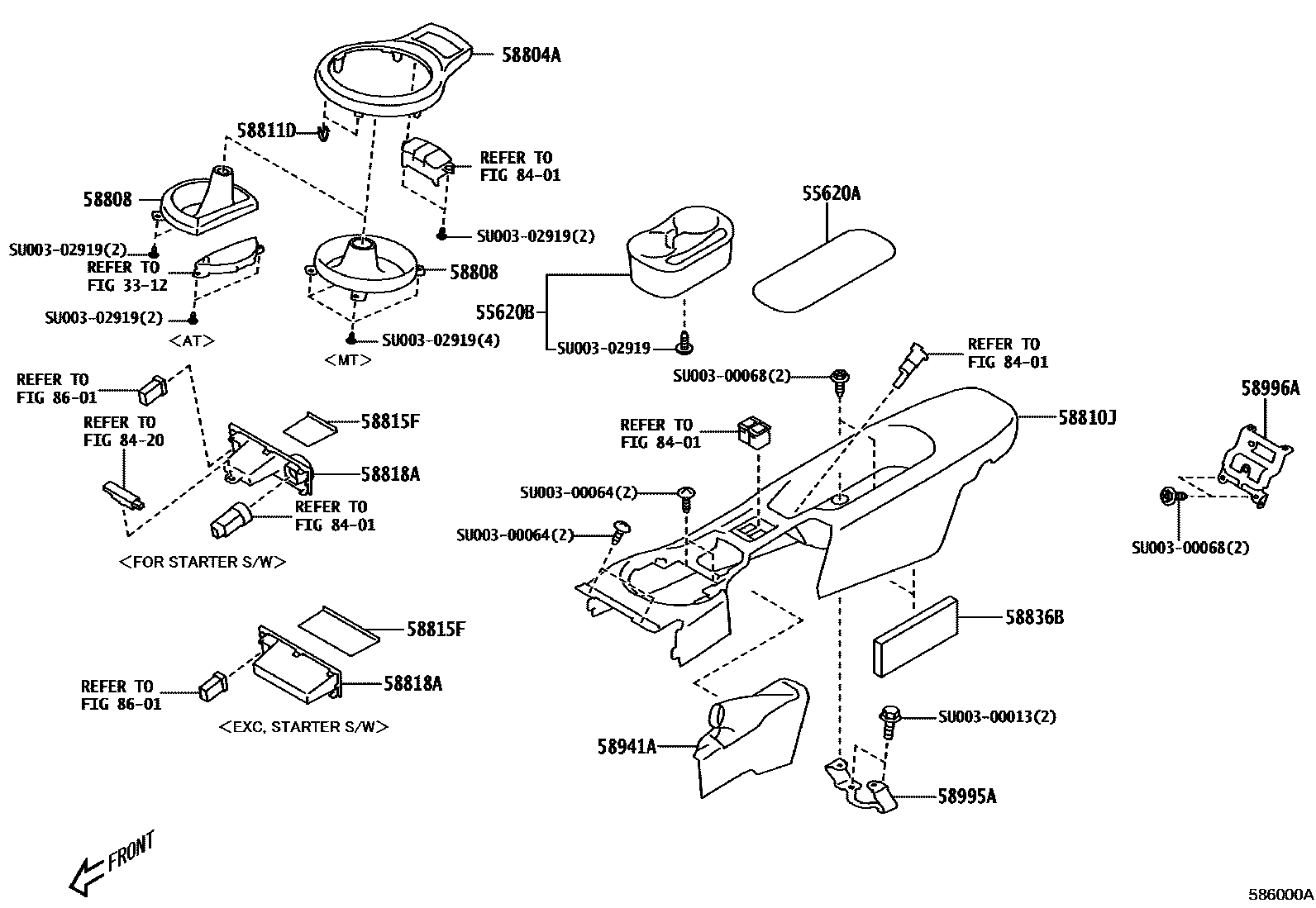

Toyota 86 — CONSOLE BOX & BRACKET

3312

55620ACUSHION(FOR CUP HOLDER)

mainSU00303213iZN6..F201711-201806

55620BHOLDER, INSTRUMENT PANEL CUP

mainSU00303208iZN6201607-201711

58804APANEL SUB-ASSY, CONSOLE, UPPER

mainSU00306016iZN6201807-201907

mainSU00306136iZN6..SPE2201908-202012

58808COVER SUB-ASSY, SHIFTING HOLE

mainSU00303195iZN6..6FC..HI201607-201711

TRIM3#

mainSU00303197iZN6..6F..(HI1,HI2,SPE1)201908-202012

STITCH:RED

mainSU00306693iZN6..6F..SPE2201908-202012

mainSU00307100iZN6..6FC201807-201907

STITCH:SILVER

mainSU00307101iZN6..6F..(HI1,HI2,SPE1,SPE2,STD)201807-201907

STITCH:SILVER

mainSU00307376iZN6..6FC..SPE201607-201711

mainSU00307377iZN6..6F..SPE201607-201711

mainSU00308078iZN6..6FC..SPE2201908-202012

58810JBOX ASSY, CONSOLE

mainSU00303188iZN6..STD..F201711-201806

mainSU00303189iZN6..HI1,HI2,SPE1,SPE2201807-201907

58811DCLIP(FOR CONSOLE BOX)

mainSU00302967×2iZN6201807-201907

58815FCARPET, CONSOLE BOX

mainSU00303211iZN6..STD201607-201711

mainSU00303212iZN6..HI1,HI2,SPE1,SPE2201908-202012

58818ACOVER, CONSOLE BOX, FR

mainSU00303202iZN6..STD..F201711-201806

subSU003-10421

mainSU00303206iZN6..HI1,HI2,SPE1,SPE2,TRD201807-201907

subSU003-10425

58836BPAD, CONSOLE BOX SILENCER, NO.1

mainSU00303209×2iZN6201607-201711

58941ACOVER, PARKING BRAKE HOLE

mainSU00303200iZN6..STD201807-201907

mainSU00303201iZN6..HI201607-201711

TRIM3#

mainSU00307098iZN6..HI1,HI2,SPE1,SPE2201807-201907

STITCH:SILVER

mainSU00307379iZN6..SPE201607-201711

mainSU00308077iZN6..SPE2201908-202012

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

mainSU00303214iZN6..F201711-201806

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

mainSU00303215iZN6201607-201711

8401

8420

8601

SU00300013

mainSU003-00013

SU00300064

mainSU003-00064

SU00300068

mainSU003-00068

SU00302919

mainSU003-02919

20 parts on this diagram · 1 diagram in section
