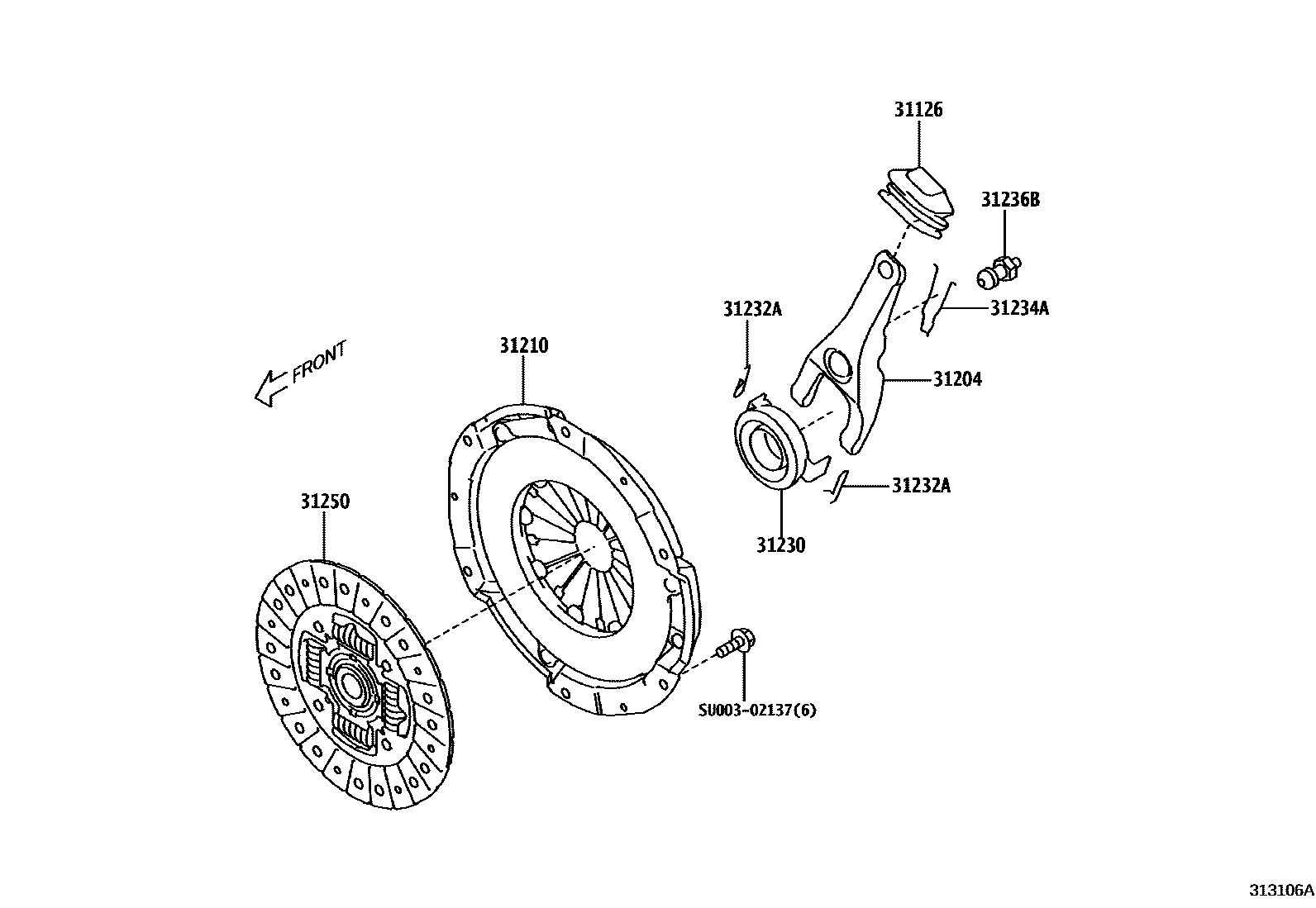

Toyota 86 — CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

mainSU00300807iZN6..6F201607-201711

31204FORK SUB-ASSY, CLUTCH RELEASE

mainSU00300803iZN6..6F201607-201711

31210COVER ASSY, CLUTCH

mainSU00300800iZN6..6F201607-201711

31230BEARING ASSY, CLUTCH RELEASE

mainSU00300802iZN6..6F201607-201609

mainSU00307349iZN6..6F201609-201711

31232ACLIP, RELEASE BEARING HUB

mainSU00300806×2iZN6..6F201607-201711

31234ASPRING, RELEASE FORK SUPPORT

mainSU00300804iZN6..6F201607-201711

31236BSUPPORT, RELEASE FORK

mainSU00300805iZN6..6F201607-201711

31250DISC ASSY, CLUTCH

mainSU00300799iZN6..6F201607-201711

SU00302137

mainSU003-02137

9 parts on this diagram · 1 diagram in section
