Toyota 86 — BACK UP LAMP

81670BBULB(FOR BACK-UP LAMP)

mainSU00302130×2i201607-201711

12V 16W

81671ALENS & BODY, BACK-UP LAMP

mainSU00302528i201607-201711

81675SOCKET & WIRE, BACK-UP LAMP

mainSU00302575i201607-201711

SU00302800

mainSU003-02800

SU00302984

mainSU003-02984

5 parts on this diagram · 1 diagram in section

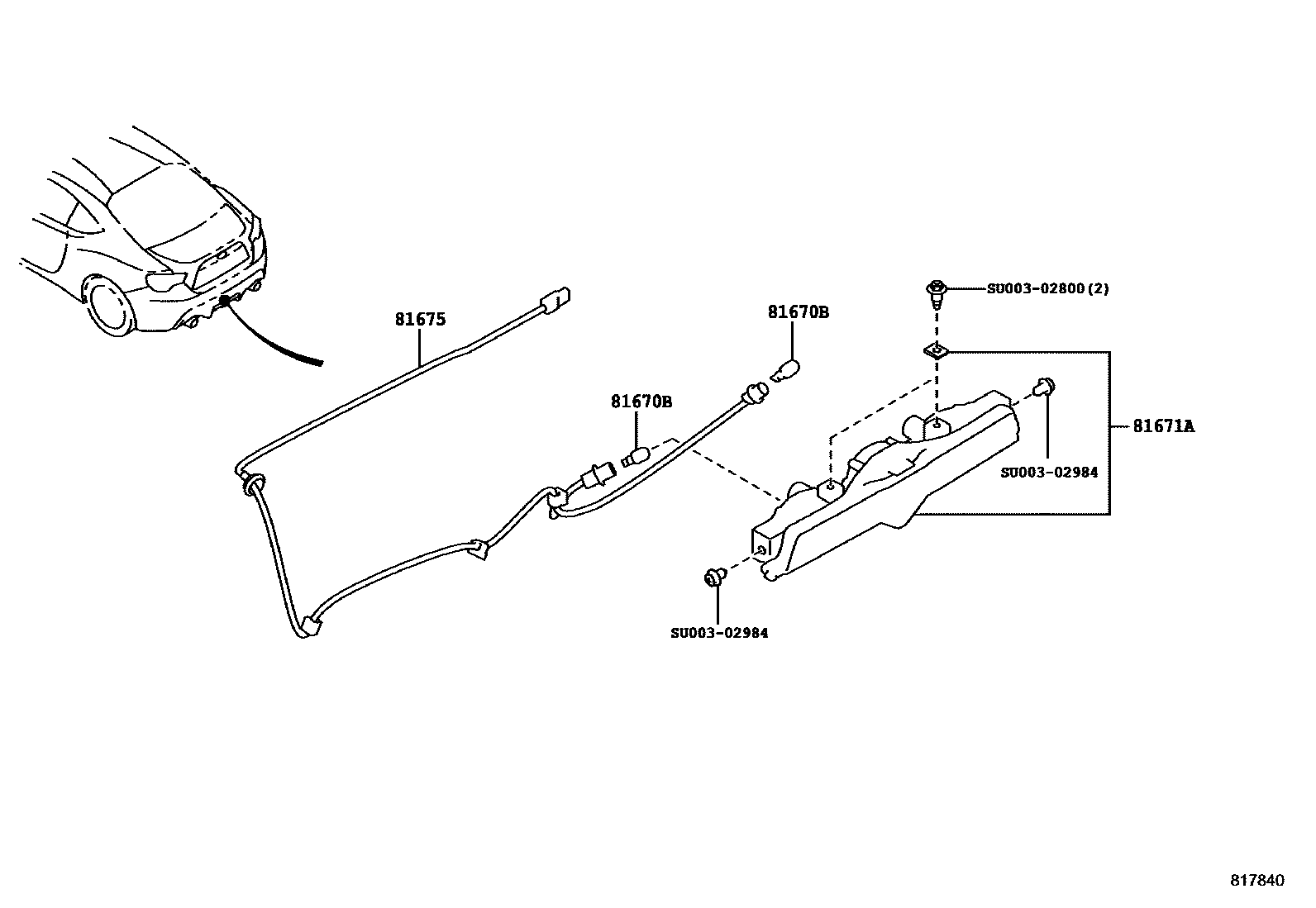

BACK UP LAMP for Toyota 86

This section contains 5 genuine Toyota parts for the BACK UP LAMP system of the Toyota 86. Key components include: BULB(FOR BACK-UP LAMP), LENS & BODY, BACK-UP LAMP, SOCKET & WIRE, BACK-UP LAMP.
