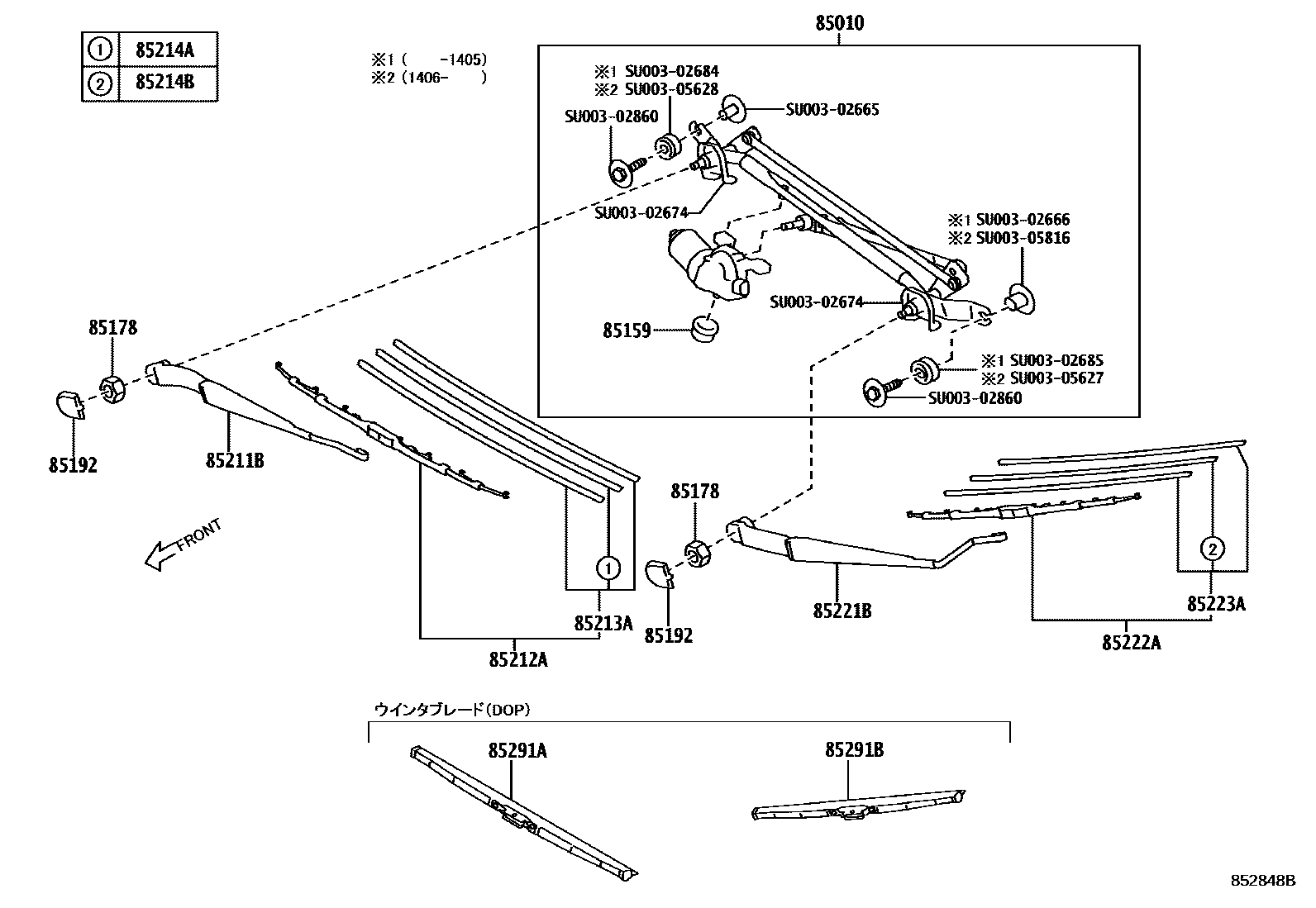

Toyota 86 — WINDSHIELD WIPER

85010MOTOR & LINK ASSY, FR WIPER

mainSU00302663iZN6201203-201308

mainSU00305709iZN6201406-201503

85159CUSHION, WINDSHIELD WIPER MOTOR

mainSU00302686iZN6201203-201308

85178NUT (FOR FRONT WIPER ARM SETTING)

mainSU00300045×2iZN6201203-201307

subSU003-00046

mainSU00304731×2iZN6201307-201308

85192COVER, WINDSHIELD WIPER ARM

mainSU00302675×2iZN6201203-201308

85211BARM, FRONT WIPER, RH

mainSU00302669iZN6201203-201308

85212ABLADE, FR WIPER, RH

mainSU00302676iZN6201203-201308

sub85212-53070

85213ARUBBER, WIPER BLADE, RH

mainSU00304213iZN6201203-201308

85214ARUBBER, WIPER, RH

mainSU00304215iZN6201203-201308

sub85214-53080

85214BRUBBER, WIPER, LH

mainSU00304216iZN6201203-201308

sub85214-53090

85221BARM, FRONT WIPER, LH

mainSU00302671iZN6201203-201308

85222ABLADE, FR WIPER, LH

mainSU00302680iZN6201203-201308

sub85222-12880

85223ARUBBER, FRONT WIPER BLADE, LH

mainSU00304214iZN6201203-201308

85291ABLADE, FRONT WIPER, WINTER, RH

main85291-22090iZN6201203

85291BBLADE, FRONT WIPER, WINTER, LH

main85291-33060iZN6201203

SU00302665

mainSU003-02665

SU00302666

mainSU003-02666

SU00302674

mainSU003-02674

SU00302684

mainSU003-02684

SU00302685

mainSU003-02685

SU00302860

mainSU003-02860

SU00305627

mainSU003-05627

SU00305628

mainSU003-05628

SU00305816

mainSU003-05816

23 parts on this diagram · 1 diagram in section
