Toyota 86 — WINDSHIELD WIPER

85010MOTOR & LINK ASSY, FR WIPER

mainSU00302663i201203-201405

mainSU00305709i201406-201607

85159CUSHION, WINDSHIELD WIPER MOTOR

mainSU00302686i201203-201607

85178NUT (FOR FRONT WIPER ARM SETTING)

mainSU00300045i201203-201307

mainSU00304731i201307-201607

85192COVER, WINDSHIELD WIPER ARM

mainSU00302675i201203-201607

85211BARM, FRONT WIPER, RH

mainSU00302669i201203-201607

85212ABLADE, FR WIPER, RH

mainSU00302676i201203-201607

85213ARUBBER, WIPER BLADE, RH

mainSU00304213i201203-201607

85214ARUBBER, WIPER, RH

mainSU00304215i201203-201607

85214BRUBBER, WIPER, LH

mainSU00304216i201203-201607

85221BARM, FRONT WIPER, LH

mainSU00302671i201203-201607

85222ABLADE, FR WIPER, LH

mainSU00302680i201203-201607

85223ARUBBER, FRONT WIPER BLADE, LH

mainSU00304214i201203-201607

85291ABLADE, FRONT WIPER, WINTER, RH

main85291-22090i201203

85291BBLADE, FRONT WIPER, WINTER, LH

main85291-33060i201203

SU00302665

mainSU003-02665

SU00302666

mainSU003-02666

SU00302674

mainSU003-02674

SU00302684

mainSU003-02684

SU00302685

mainSU003-02685

SU00302860

mainSU003-02860

SU00305627

mainSU003-05627

SU00305628

mainSU003-05628

SU00305816

mainSU003-05816

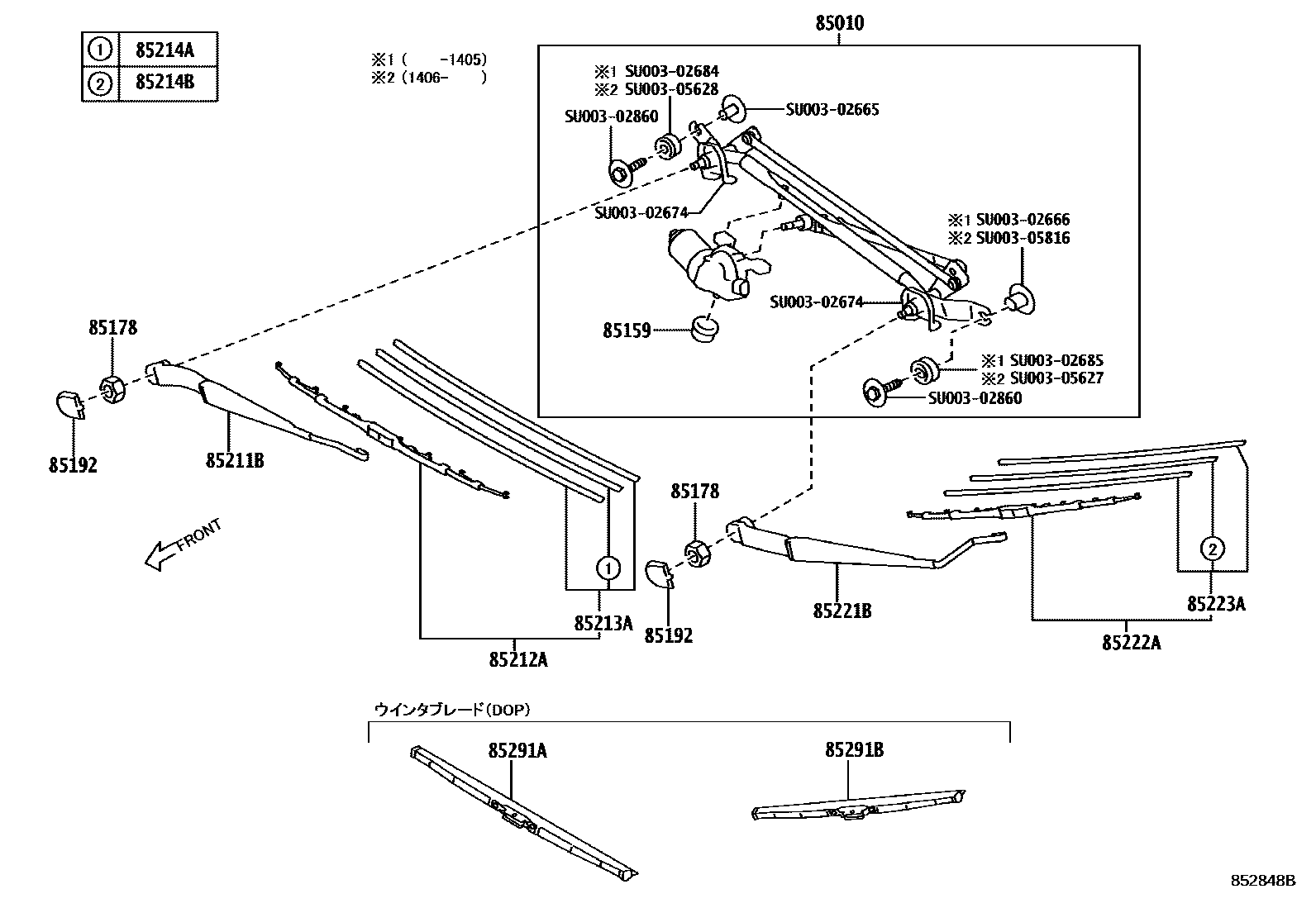

23 parts on this diagram · 1 diagram in section

WINDSHIELD WIPER for Toyota 86

This section contains 23 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota 86. Key components include: MOTOR & LINK ASSY, FR WIPER, CUSHION, WINDSHIELD WIPER MOTOR, NUT (FOR FRONT WIPER ARM SETTING), COVER, WINDSHIELD WIPER ARM, ARM, FRONT WIPER, RH.
