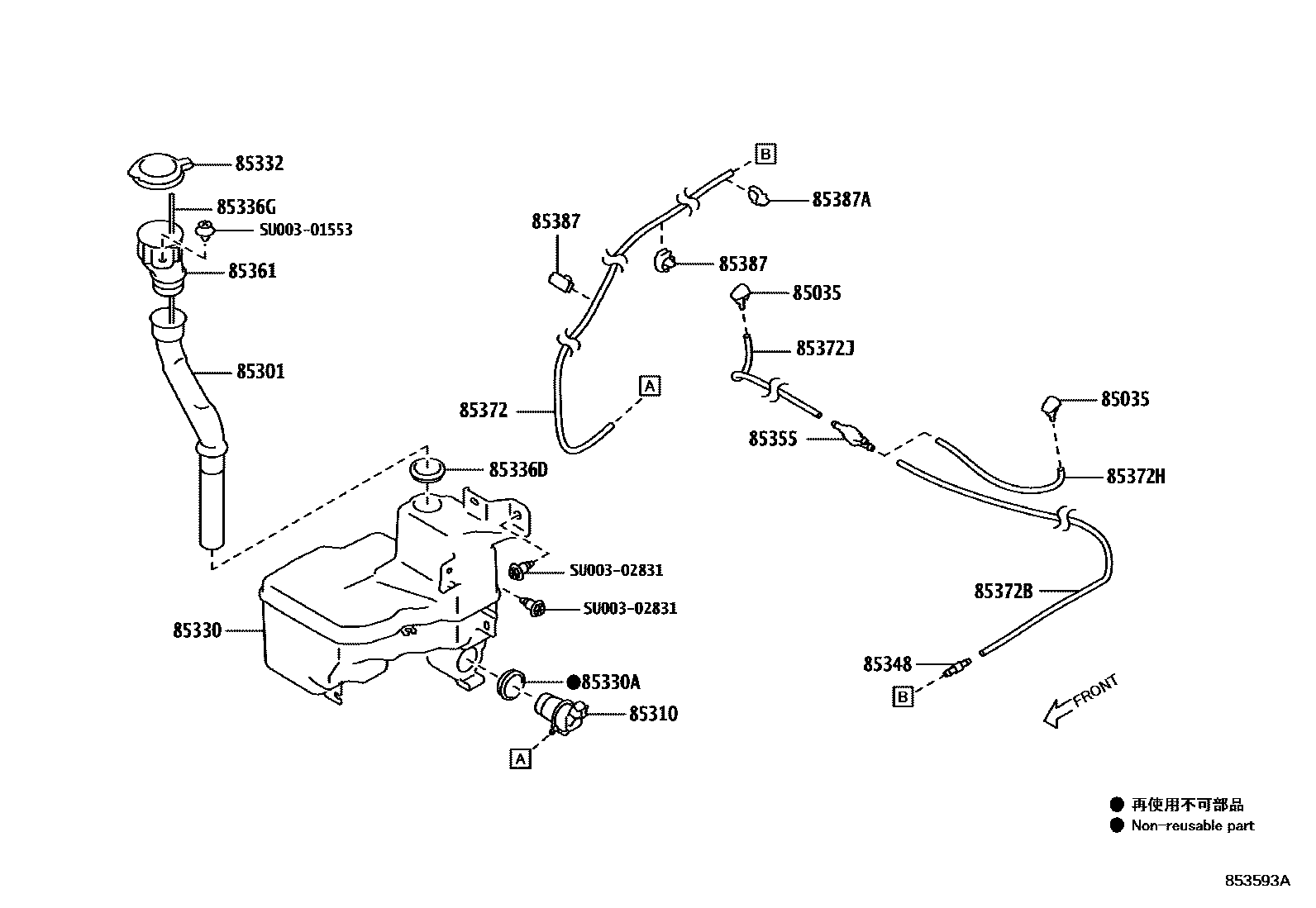

Toyota 86 — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

mainSU00302700×2iZN6201608-201709

85301INLET SUB-ASSY, WASHER

mainSU00302694iZN6201608-201709

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

mainSU00302687iZN6201608-201709

85330JAR ASSY, WINDSHIELD WASHER

mainSU00302697iZN6201608-201709

85330ABUSH, WINDSHIELD WASHER JAR

mainSU00302695iZN6201608-201709

85332CAP, WINDSHIELD WASHER JAR

mainSU00302690iZN6201608-201709

85336DPACKING, WINDSHIELD WASHER JAR

mainSU00302696iZN6201608-201709

85336GGAGE, WATER LEVEL

mainSU00302692iZN6201608-201709

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

mainSU00302717iZN6201608-201709

85355VALVE, WINDSHIELD WASHER HOSE

mainSU00302699iZN6201608-201709

85361HOLDER, WINDSHIELD WASHER

mainSU00302727iZN6201608-201709

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

mainSU00302725iZN6201608-201709

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

mainSU00302721iZN6201608-201709

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

mainSU00302720iZN6201608-201709

85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4

mainSU00302719iZN6201608-201709

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

mainSU00303006×2iZN6201608-201709

85387ACLAMP, WASHER, NO.2

mainSU00302691iZN6201608-201709

SU00301553

mainSU003-01553

SU00302831

mainSU003-02831

19 parts on this diagram · 1 diagram in section
