Toyota 86 — SWITCH & RELAY & COMPUTER

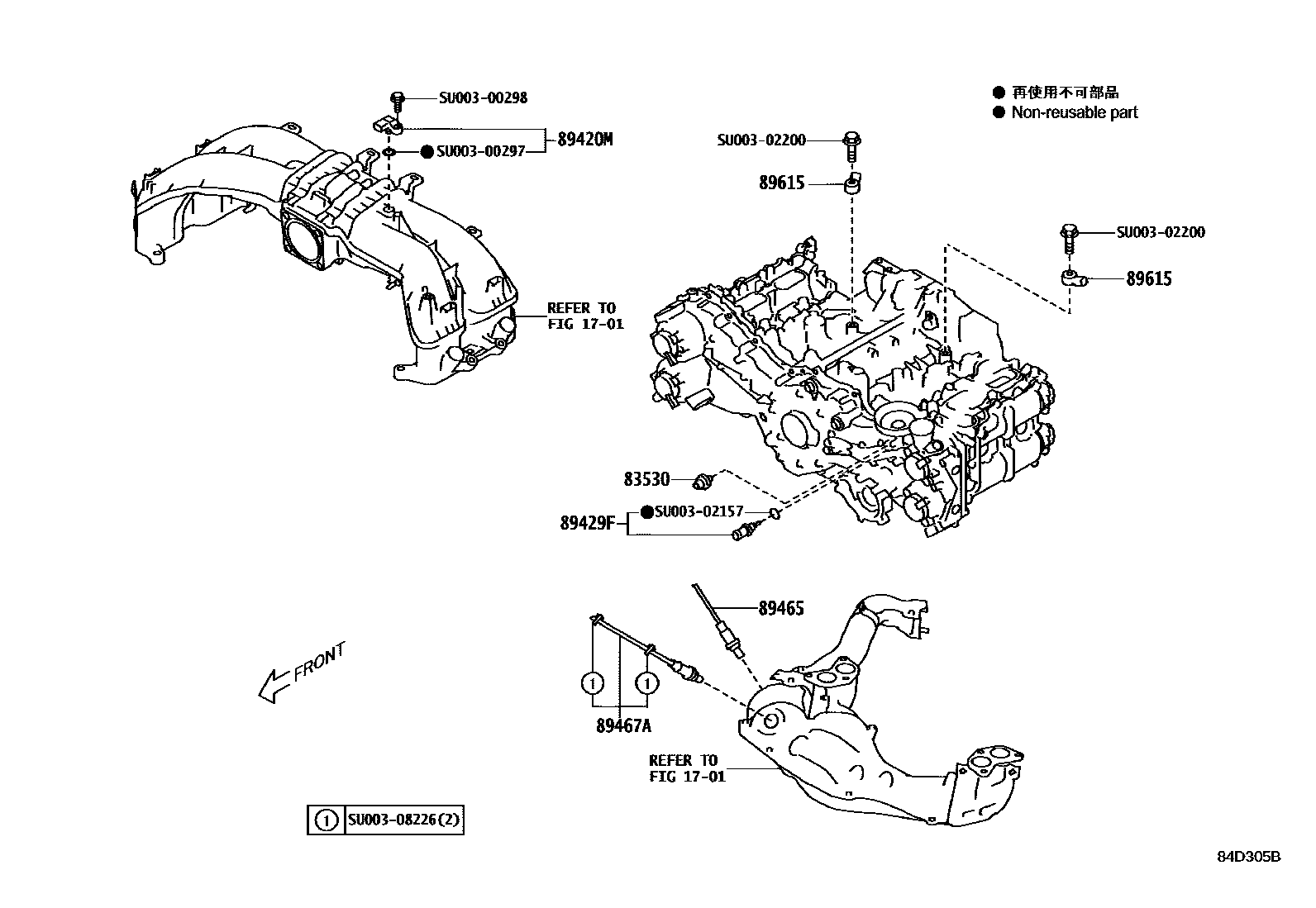

Parts diagram

1701MANIFOLD

→ Go to FIG 17-01

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

mainSU00300523i201203-201505

mainSU00306104i201506-201607

89420MSENSOR ASSY, AIR PRESSURE

mainSU00300419i201203-201607

89429FSENSOR, TEMPERATURE

mainSU00300420i201203-201308

mainSU00304714i201308-201607

89465SENSOR, OXYGEN

mainSU00300428i201203-201607

89467ASENSOR, WIDE RANGE AIR FUEL RATIO

mainSU00300425i201203-201607

89615SENSOR, KNOCK CONTROL

mainSU00300415i201203-201607

SU00300297

mainSU003-00297

SU00300298

mainSU003-00298

SU00302157

mainSU003-02157

SU00302200

mainSU003-02200

SU00308226

mainSU003-08226

12 parts on this diagram · 12 diagrams in section

SWITCH & RELAY & COMPUTER for Toyota 86
