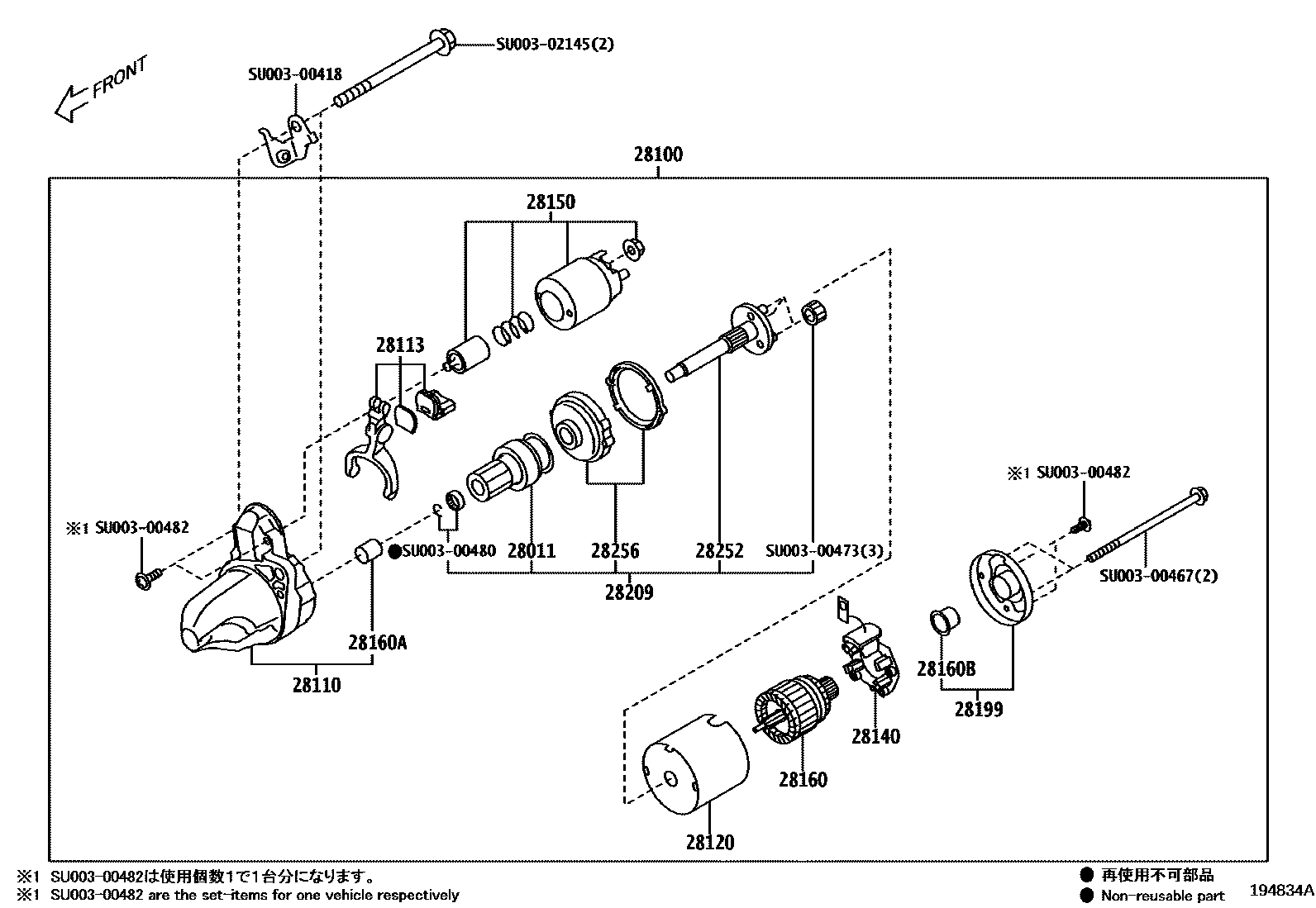

Toyota 86 — STARTER
28011CLUTCH SUB-ASSY, STARTER
28100STARTER ASSY
28110HOUSING ASSY, STARTER DRIVE
28113LEVER, STARTER PINION DRIVE
28120YOKE ASSY, STARTER
28140HOLDER ASSY, STARTER BRUSH
28150SWITCH ASSY, MAGNET STARTER
28160ARMATURE ASSY, STARTER
28160ABEARING, STARTER ARMATURE
28160BBEARING, STARTER ARMATURE, NO.2
28199COVER, STARTER
28209SHAFT SUB-ASSY, STARTER
28252GEAR, STARTER IDLE
28256GEAR, STARTER INTERNAL
SU00300418
mainSU003-00418
SU00300467
mainSU003-00467
SU00300473
mainSU003-00473
SU00300480
mainSU003-00480
SU00300482
mainSU003-00482
SU00302145
mainSU003-02145
20 parts on this diagram · 2 diagrams in section
