Toyota 86 — SHORT BLOCK ASSEMBLY

1105CYLINDER BLOCK

→ Go to FIG 11-05

11400BLOCK ASSY, SHORT

mainSU00307262i201608-201709

mainSU00307263i201904-202104

1301CRANKSHAFT & PISTON

→ Go to FIG 13-01

3 parts on this diagram · 1 diagram in section

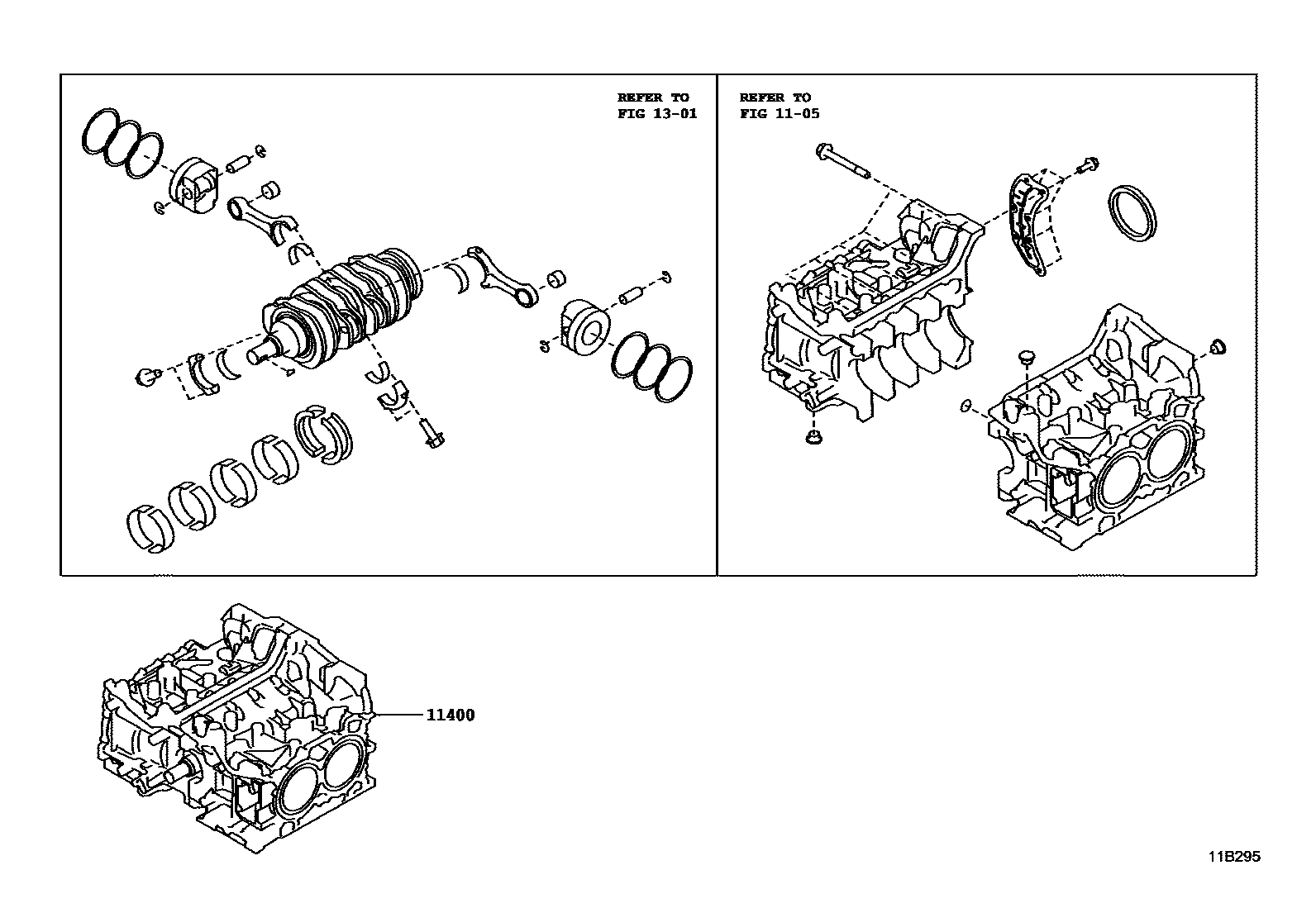

SHORT BLOCK ASSEMBLY for Toyota 86

This section contains 3 genuine Toyota parts for the SHORT BLOCK ASSEMBLY system of the Toyota 86. Key components include: CYLINDER BLOCK, BLOCK ASSY, SHORT, CRANKSHAFT & PISTON.
