Toyota 86 — QUARTER WINDOW

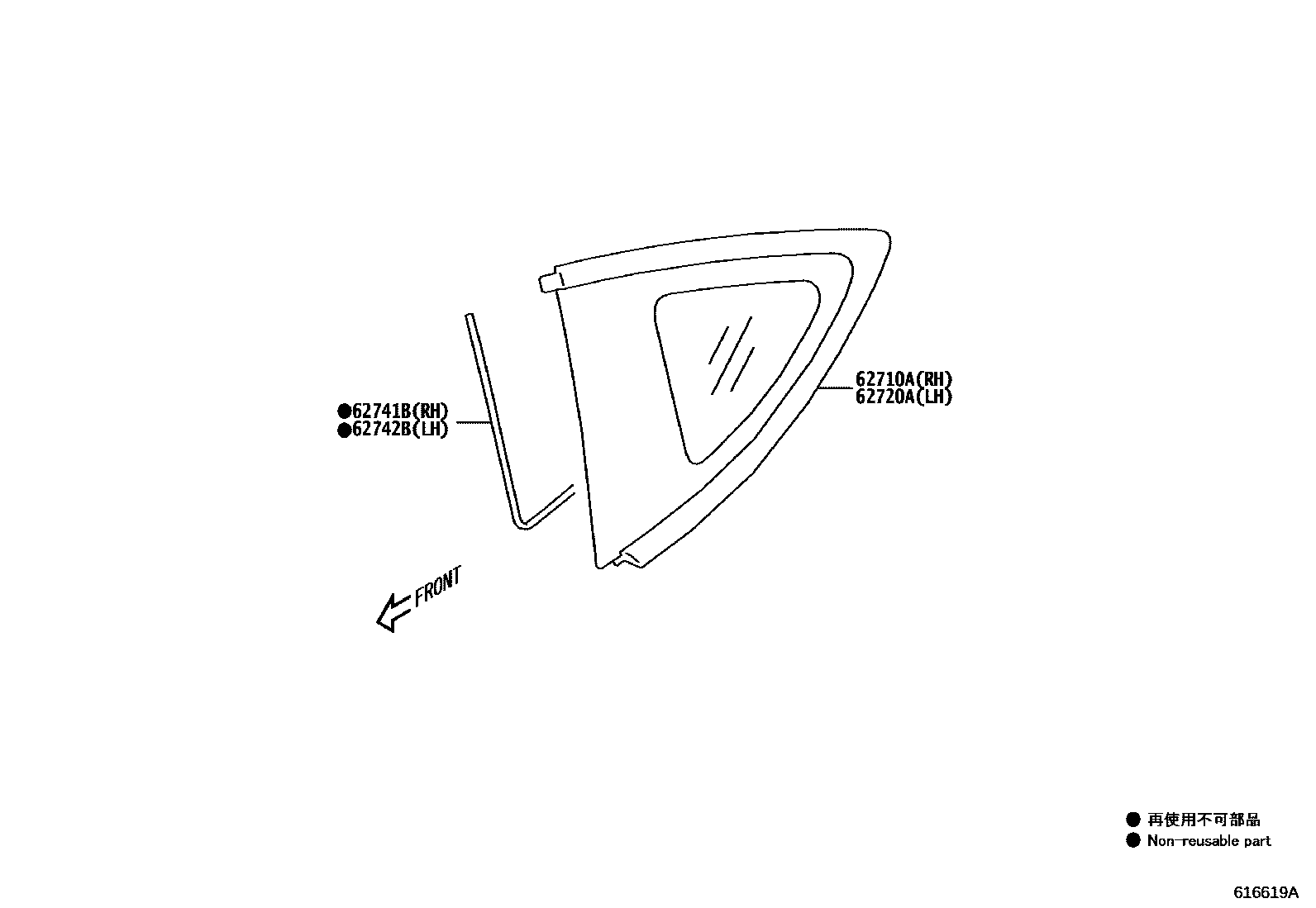

Parts diagram
62710AWINDOW ASSY, QUARTER, RH
mainSU003G0012i201805-201904
mainSU003G0014i201904-202104
62720AWINDOW ASSY, QUARTER, LH
mainSU003G0013i201805-201904
mainSU003G0015i201608-201709
62741BSEAL, QUARTER WINDOW GLASS, RH
mainSU00304121i201608-201709
62742BSEAL, QUARTER WINDOW GLASS, LH
mainSU00304121i201608-201709

4 parts on this diagram · 1 diagram in section

QUARTER WINDOW for Toyota 86

This section contains 4 genuine Toyota parts for the QUARTER WINDOW system of the Toyota 86. Key components include: WINDOW ASSY, QUARTER, RH, WINDOW ASSY, QUARTER, LH, SEAL, QUARTER WINDOW GLASS, RH, SEAL, QUARTER WINDOW GLASS, LH.
