Toyota 86 — MIRROR

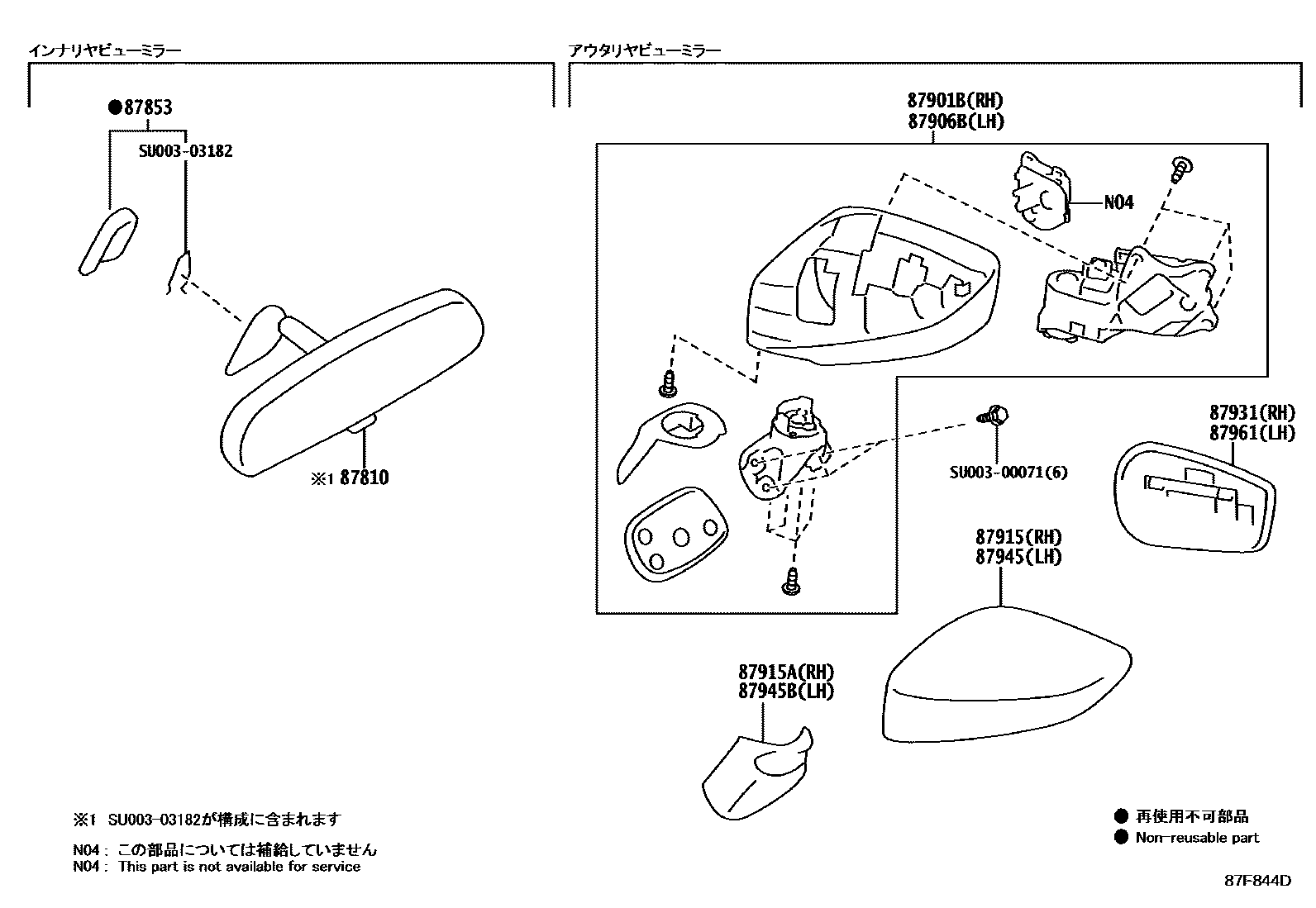

Parts diagram

87810MIRROR ASSY, INNER REAR VIEW

mainSU00303183201608-201804

mainSU00303184201608-202104

mainSU00307866201805-202104

87853BASE, INNER REAR VIEW MIRROR

mainSU00303181201608-202104

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

mainSU00307467201709-202104

mainSU00307469201904-202104

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

mainSU00307468201709-202104

mainSU00307470201904-202104

87915COVER, OUTER MIRROR, RH

mainSU00303071201608-202104

mainSU00303072201608-201709

mainSU00303076201608-202104

mainSU00305586201608-202104

mainSU00305587201608-202104

mainSU00305990201608-202104

mainSU00305991201608-202104

mainSU00307611201709-201804

mainSU00307842201805-202104

mainSU00308110201904-202104

mainSU00308111201904-202104

87915ACOVER, OUTER MIRROR, RH

mainSU00303088201608-202104

87931OUTER MIRROR, RH

mainSU00303056201709-202104

mainSU00305236201904-202104

87945COVER, OUTER MIRROR, LH

mainSU00303079201608-202104

mainSU00303080201608-201709

mainSU00303084201608-202104

mainSU00305588201608-202104

mainSU00305589201608-202104

mainSU00305992201608-202104

mainSU00305993201608-202104

mainSU00307612201709-201804

mainSU00307843201805-202104

mainSU00308112201904-202104

mainSU00308113201904-202104

87945BCOVER, OUTER MIRROR, LH

mainSU00303089201608-202104

87961MIRROR OUTER, LH

mainSU00303057201709-202104

mainSU00305237201904-202104

SU00300071

mainSU003-00071

SU00303182

mainSU003-03182

12 parts on this diagram · 1 diagram in section

MIRROR for Toyota 86

This section contains 12 genuine Toyota parts for the MIRROR system of the Toyota 86. Key components include: MIRROR ASSY, INNER REAR VIEW, BASE, INNER REAR VIEW MIRROR, MIRROR SUB-ASSY, OUTER REAR VIEW, RH, MIRROR SUB-ASSY, OUTER REAR VIEW, LH, COVER, OUTER MIRROR, RH.
