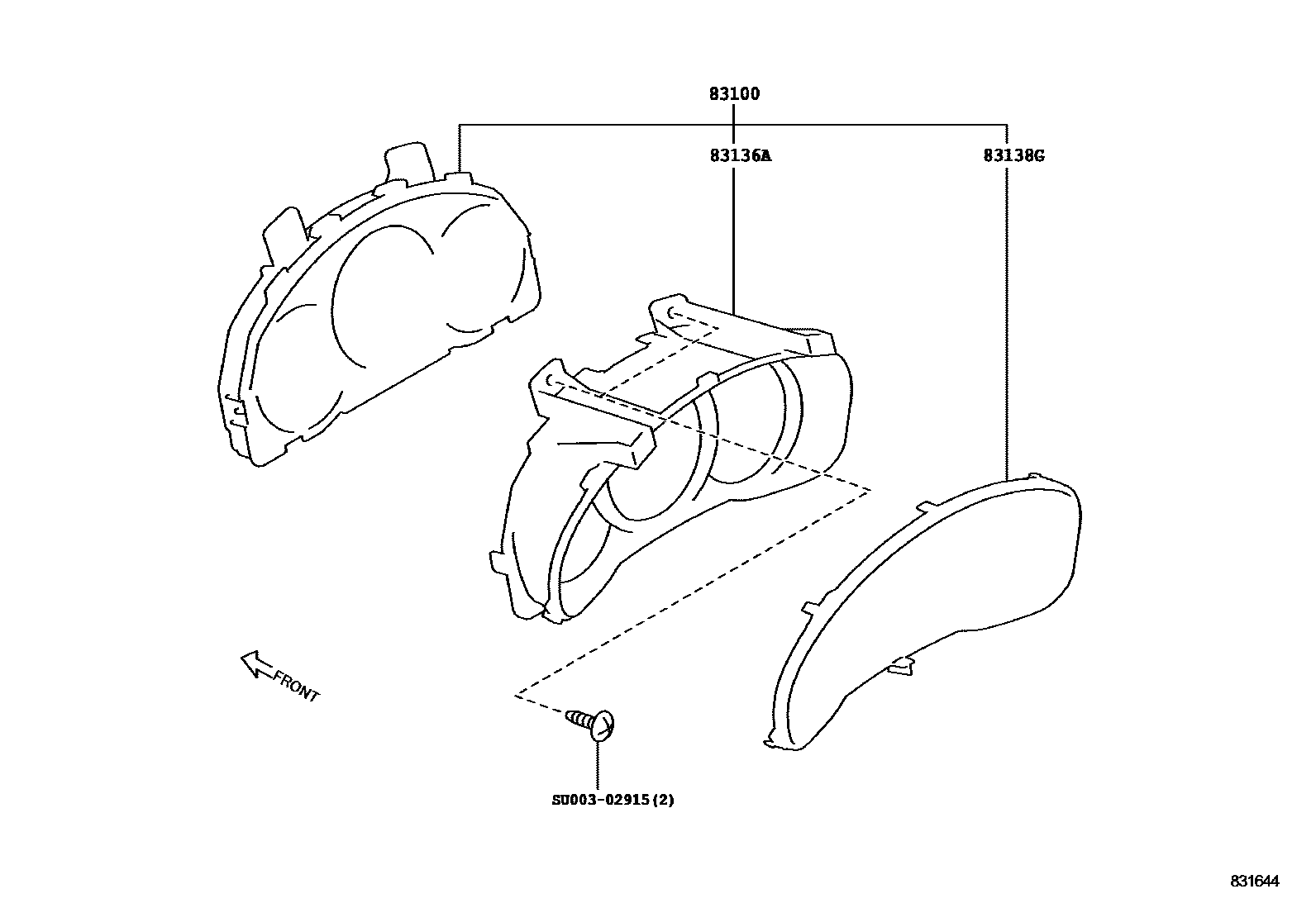

Toyota 86 — METER

83100METER ASSY, COMBINATION

mainSU00302597iZN6..G,RC,RCG201203-201308

subSU003-10829

mainSU00302598iZN6..GT..B201308-201405

subSU003-10830

mainSU00305483iZN6..G,RCG201504-201607

subSU003-10939

mainSU00305484iZN6..(GT,TRDRC)..C201405-201503

subSU003-10940

main83800-WY010iZN6..CB201504-201606

83136ACOVER, COMBINATION METER

mainSU00302617iZN6..(G,RC,RCG)..B201308-201405

mainSU00302618iZN6..CB,GT,GTAE,LIMD,TRDGT,YEL,YLA201504-201607

main83811-WY010iZN6..CB201504-201606

83138GGLASS, COMBINATION METER

mainSU00302619iZN6..C201405-201503

SU00302915

mainSU003-02915

4 parts on this diagram · 1 diagram in section
