Toyota 86 — HORN

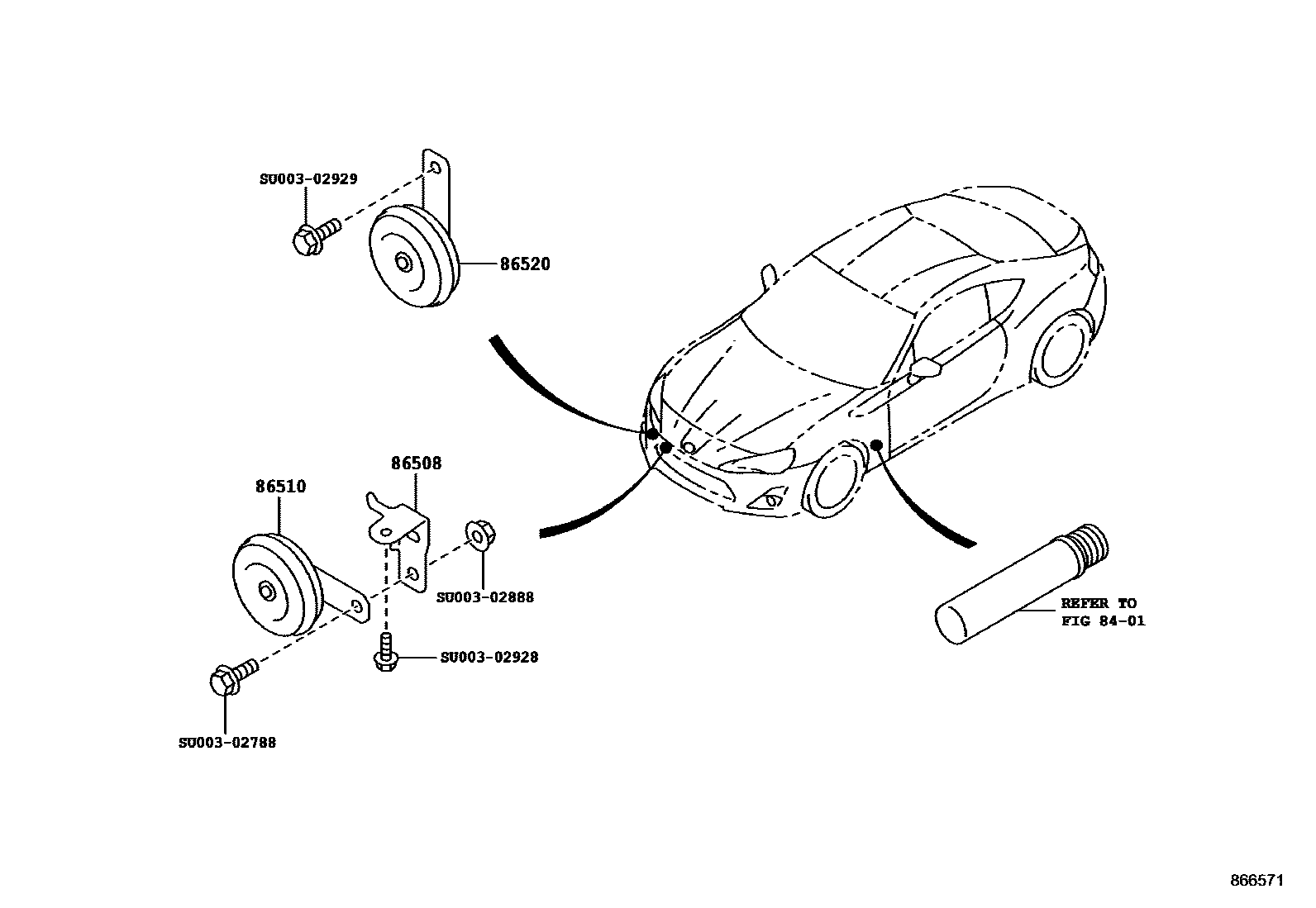

Parts diagram

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

86508BRACKET SUB-ASSY, HORN

mainSU00302629i201608-201709

86510HORN ASSY, HIGH PITCHED

mainSU00302625i201608-201709

86520HORN ASSY, LOW PITCHED

mainSU00302626i201608-201709

SU00302788

mainSU003-02788

SU00302888

mainSU003-02888

SU00302928

mainSU003-02928

SU00302929

mainSU003-02929

8 parts on this diagram · 1 diagram in section

HORN for Toyota 86

This section contains 8 genuine Toyota parts for the HORN system of the Toyota 86. Key components include: SWITCH & RELAY & COMPUTER, BRACKET SUB-ASSY, HORN, HORN ASSY, HIGH PITCHED, HORN ASSY, LOW PITCHED.
