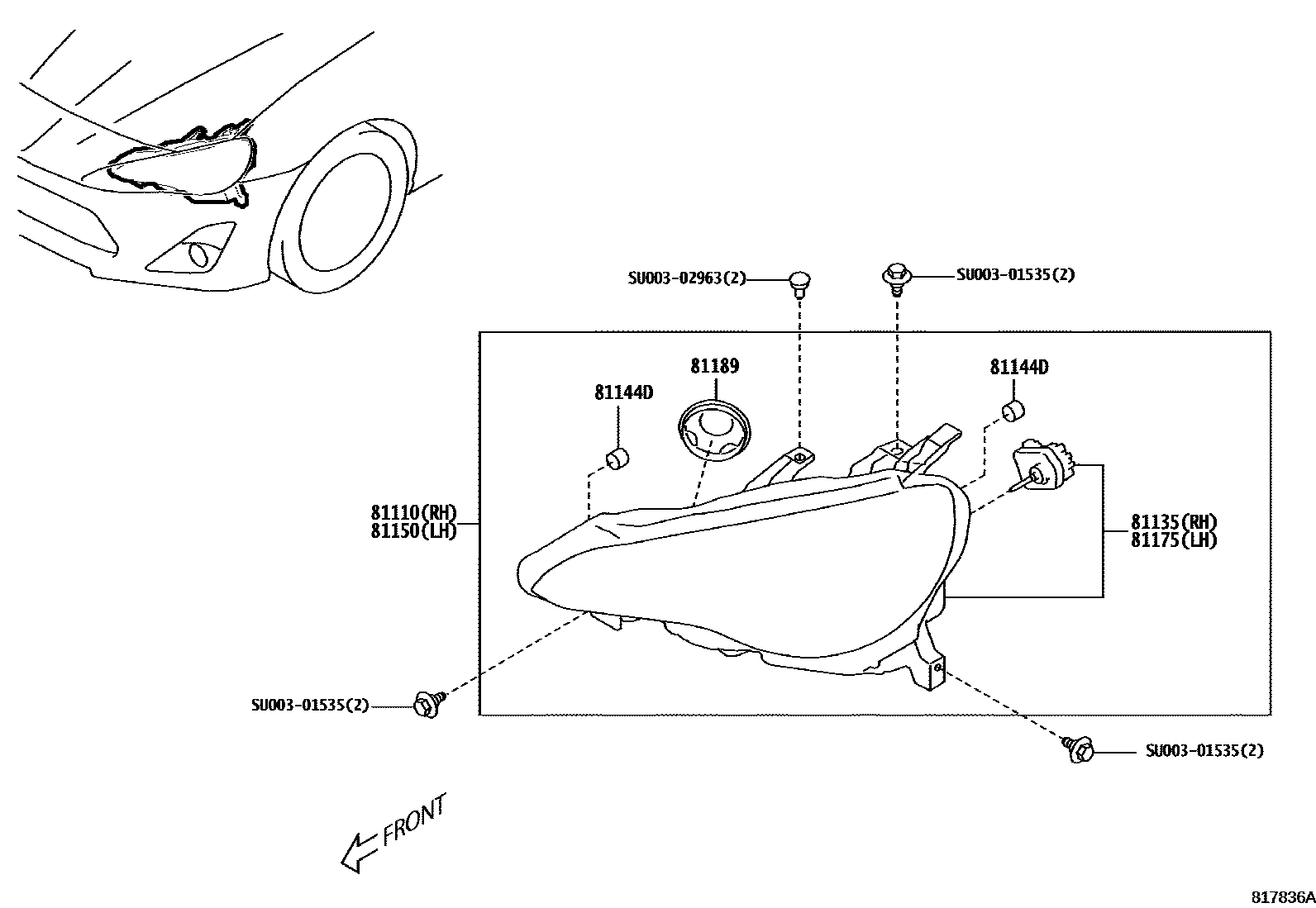

Toyota 86 — HEADLAMP

81110HEADLAMP ASSY, RH

mainSU00306971i201608-201709

mainSU00307938i201801-201804

mainSU00308029i201804-201904

81135UNIT ASSY, HEADLAMP, RH

mainSU00306988i201608-201709

mainSU00307948i201801-201804

mainSU00308037i201804-201904

81144DCAP, HEADLAMP LOCKING

mainSU00302590×4i201608-201709

mainSU00307932×4i201801-201804

81150HEADLAMP ASSY, LH

mainSU00306972i201608-201709

mainSU00307939i201801-201804

mainSU00308030i201804-201904

81175UNIT ASSY, HEADLAMP, LH

mainSU00306989i201608-201709

mainSU00307949i201801-201804

mainSU00308038i201804-201904

81189COVER, HEADLAMP

mainSU00307000×2i201608-201709

SU00301535

mainSU003-01535

SU00302963

mainSU003-02963

8 parts on this diagram · 1 diagram in section

HEADLAMP for Toyota 86

This section contains 8 genuine Toyota parts for the HEADLAMP system of the Toyota 86. Key components include: HEADLAMP ASSY, RH, UNIT ASSY, HEADLAMP, RH, CAP, HEADLAMP LOCKING, HEADLAMP ASSY, LH, UNIT ASSY, HEADLAMP, LH.
