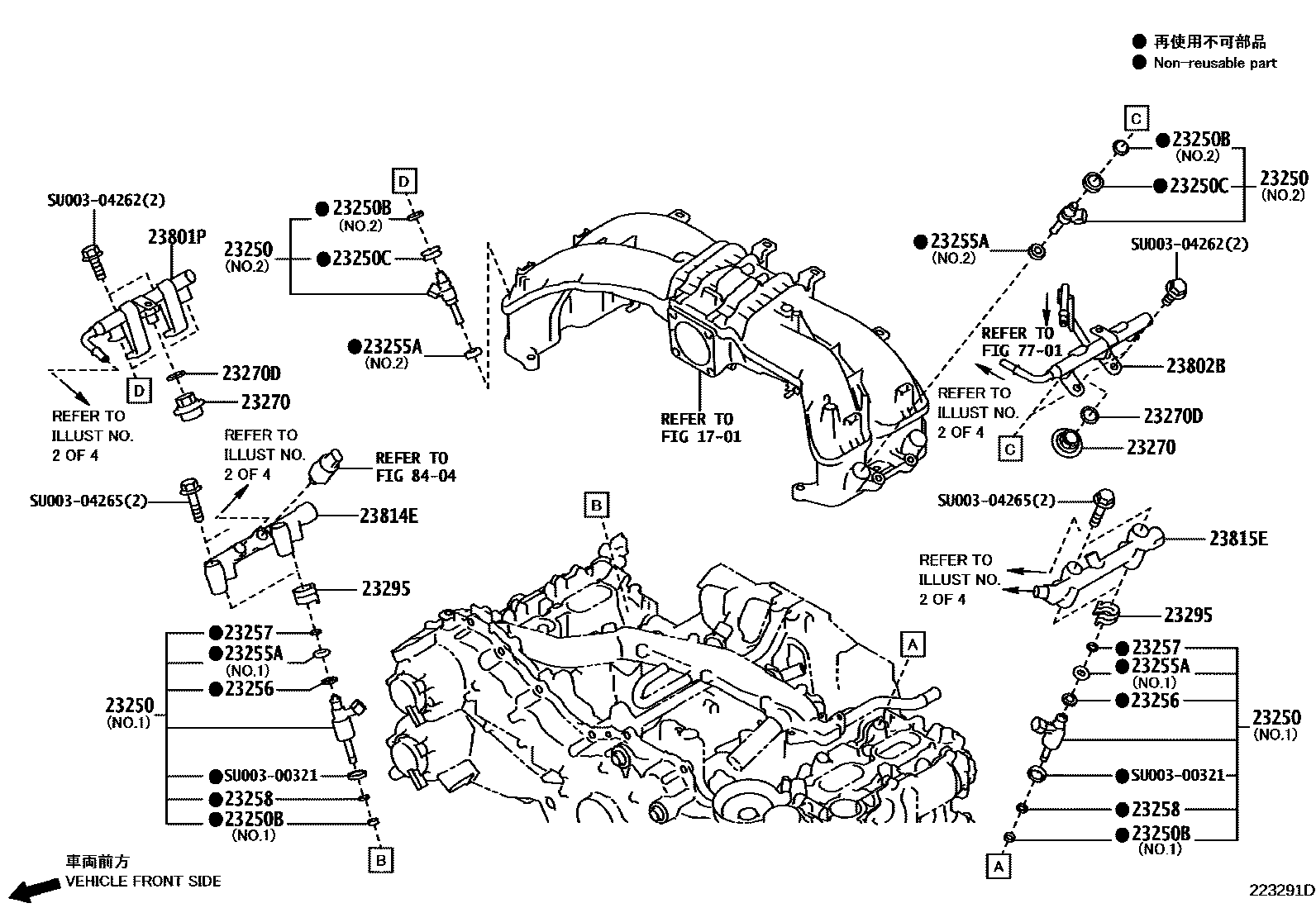

Toyota 86 — FUEL INJECTION SYSTEM

1701MANIFOLD

→ Go to FIG 17-01

23250INJECTOR ASSY, FUEL

mainSU00300325×4i201709-201804

mainSU00304460×4i201904-202104

mainSU00304461×4i201709-201804

mainSU00304462×4i201709-201804

23250BRING, O(FOR FUEL INJECTOR)

mainSU00300322×4i201805-201904

mainSU00300335×4i201608-201709

23250CGROMMET(FOR FUEL INJECTOR)

mainSU00300317×4i201608-201709

23255ASEAL, FUEL INJECTOR

mainSU00300323×4i201709-201804

mainSU00300324×4i201805-201904

23256RING, FUEL INJECTOR BACK-UP, NO.1

mainSU00300333×4i201805-201904

23257RING, FUEL INJECTOR BACK-UP, NO.2

mainSU00300334×4i201608-201709

23258RING, FUEL INJECTOR BACK-UP, NO.3

mainSU00305632×4i201608-201709

23270DAMPER ASSY, FUEL PRESSURE PULSATION

mainSU00300331×2i201608-201709

23270DGASKET(FOR PULSATION DAMPER)

mainSU00300346×2i201608-201709

23295HOLDER, INJECTOR, NO.1

mainSU00300320×4i201608-201709

23801PPIPE SUB-ASSY, FUEL, NO.1

mainSU00300338i201608-201709

23802BPIPE SUB-ASSY, FUEL, NO.2

mainSU00300339i201608-201709

23814EPIPE, FUEL DELIVERY, RH

mainSU00306459i201608-201709

23815PIPE, FUEL DELIVERY, NO.2

mainSU00300342i201608-201709

23815EPIPE, FUEL DELIVERY, LH

mainSU00300337i201608-201709

7701FUEL TANK & TUBE

→ Go to FIG 77-01

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

SU00300321

mainSU003-00321

SU00304262

mainSU003-04262

SU00304265

mainSU003-04265

21 parts on this diagram · 4 diagrams in section

FUEL INJECTION SYSTEM for Toyota 86
