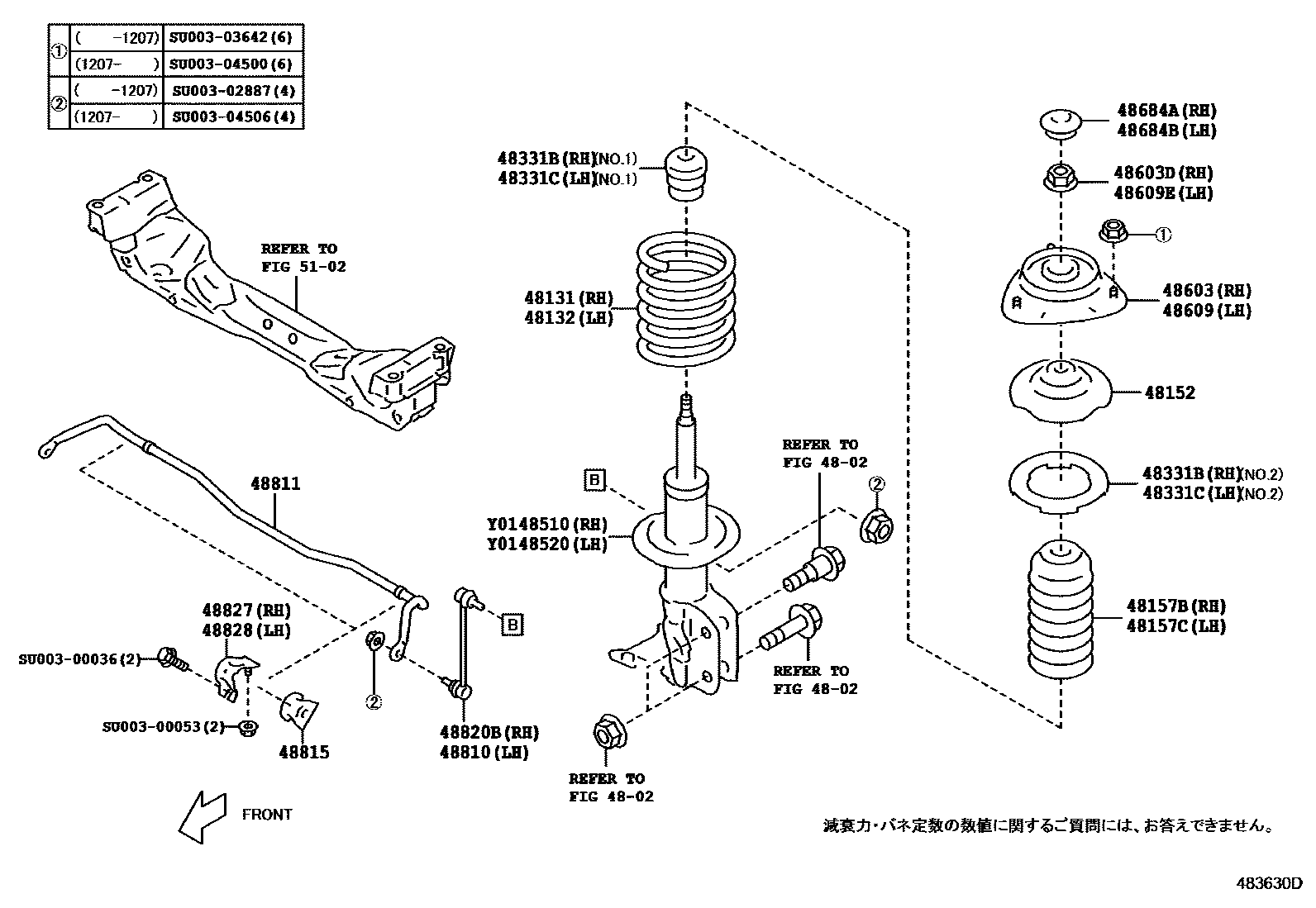

Toyota 86 — FRONT SPRING & SHOCK ABSORBER

4802

48131SPRING, FRONT COIL, RH

mainSU00304143iZN6..RCG201504-201607

mainSU00304144iZN6..6F..(G,GT)201203-201308

mainSU00304145iZN6..6FC..C201405-201503

48132SPRING, FRONT COIL, LH

mainSU00304143iZN6..RC,RCG201203-201308

mainSU00304144iZN6..6F..(CB,G,GT,GTAE,LIMD,TRDGT,YEL,YLA)201504-201607

mainSU00304145iZN6..6FC201504-201607

48152SEAT, FRONT SPRING

mainSU00300376×2iZN6..C201405-201503

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

mainSU00300375iZN6..B201308-201405

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

mainSU00300375iZN6201203-201308

48331BBUMPER, FRONT SPRING, RH

mainSU00300374iZN6..C201405-201503

mainSU00300377iZN6201203-201308

48331CBUMPER, FRONT SPRING, LH

mainSU00300374iZN6201504-201607

mainSU00300377iZN6201504-201607

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-0W070iZN6..GTAE,YLA201511

mainSU00300371iZN6201203-201308

subSU003-10819

mainSU00305256iZN6201504-201607

subSU003-10821

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-0W070iZN6..GTAE,YLA201511

mainSU00300372iZN6201203-201308

subSU003-10820

mainSU00305257iZN6..C201405-201503

subSU003-10822

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

mainSU00300373iZN6201203-201308

mainSU00305801iZN6201504-201607

subSU003-09509

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

mainSU00302868iZN6201203-201308

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

mainSU00300373iZN6201203-201308

mainSU00305801iZN6201407-201503

subSU003-09509

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

mainSU00302868iZN6201203-201308

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

mainSU00300378iZN6..C201405-201503

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

mainSU00300378iZN6201203-201308

48810LINK ASSY, FRONT STABILIZER, LH

mainSU00300394iZN6201203-201308

48811BAR, STABILIZER, FRONT

mainSU00300391iZN6201203-201308

48815BUSH, FRONT STABILIZER BAR, NO.1

mainSU00300392×2iZN6201203-201308

48820BLINK ASSY, FRONT STABILIZER, RH

mainSU00300394iZN6201203-201308

48827BRACKET, FRONT STABILIZER, NO.2 RH

mainSU00300393iZN6201203-201308

48828BRACKET, FRONT STABILIZER, NO.2 LH

mainSU00300393iZN6201203-201308

5102

SU00300036

mainSU003-00036

SU00300053

mainSU003-00053

SU00302887

mainSU003-02887

SU00303642

mainSU003-03642

SU00304500

mainSU003-04500

SU00304506

mainSU003-04506

29 parts on this diagram · 1 diagram in section
