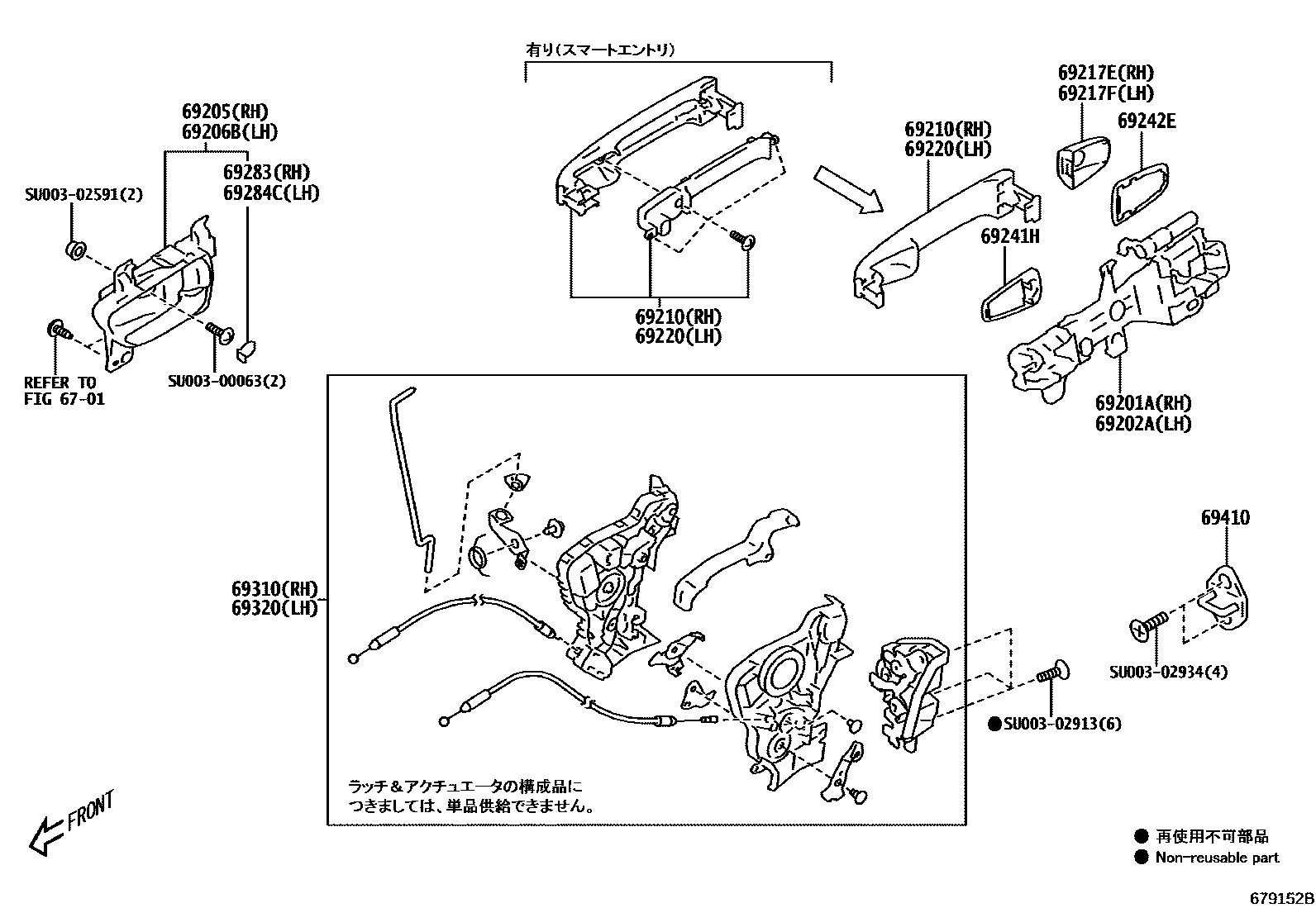

Toyota 86 — FRONT DOOR LOCK & HANDLE
6701FRONT DOOR PANEL & GLASS
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLACK
BLACK
BLACK
BLACK
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLACK
BLACK
BLACK
BLACK
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
DARK GRAY METALLIC,61K
ORANGE METALLIC,H8R
CRYSTAL BLACK SILICA,D4S
DARK GRAY METALLIC,61K
ORANGE METALLIC,H8R
CRYSTAL BLACK SILICA,D4S
ICE SILVER METALLIC,G1U
CRYSTAL WHITE PEARL,K1X
ICE SILVER METALLIC,G1U
CRYSTAL WHITE PEARL,K1X
LAPIS BLUE PEARL,K3X
PURE RED,M7Y
LAPIS BLUE PEARL,K3X
PURE RED,M7Y
SOLAR ORANGE
SOLID GRAY,PBA
SOLID GRAY,PBA
BRIGHT BLUE,DAR
BRIGHT BLUE,DAR
MAGNETITE GRAY M,P8Y
MAGNETITE GRAY M,P8Y
BRITISH RACING GREEN
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
DARK GRAY METALLIC,61K
ORANGE METALLIC,H8R
CRYSTAL BLACK SILICA,D4S
ICE SILVER METALLIC,G1U
CRYSTAL WHITE PEARL,K1X
LAPIS BLUE PEARL,K3X
PURE RED,M7Y
SOLAR ORANGE
SOLID GRAY,PBA
BRIGHT BLUE,DAR
MAGNETITE GRAY M,P8Y
BRITISH RACING GREEN
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
DARK GRAY METALLIC,61K
ORANGE METALLIC,H8R
CRYSTAL BLACK SILICA,D4S
ICE SILVER METALLIC,G1U
CRYSTAL WHITE PEARL,K1X
LAPIS BLUE PEARL,K3X
PURE RED,M7Y
SOLAR ORANGE
SOLID GRAY,PBA
BRIGHT BLUE,DAR
MAGNETITE GRAY M,P8Y
BRITISH RACING GREEN
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
DARK GRAY METALLIC,61K
ORANGE METALLIC,H8R
CRYSTAL BLACK SILICA,D4S
DARK GRAY METALLIC,61K
ORANGE METALLIC,H8R
CRYSTAL BLACK SILICA,D4S
ICE SILVER METALLIC,G1U
CRYSTAL WHITE PEARL,K1X
ICE SILVER METALLIC,G1U
CRYSTAL WHITE PEARL,K1X
LAPIS BLUE PEARL,K3X
PURE RED,M7Y
LAPIS BLUE PEARL,K3X
PURE RED,M7Y
SOLAR ORANGE
SOLID GRAY,PBA
SOLID GRAY,PBA
BRIGHT BLUE,DAR
BRIGHT BLUE,DAR
MAGNETITE GRAY M,P8Y
MAGNETITE GRAY M,P8Y
BRITISH RACING GREEN
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
BLACK
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
BLACK
69310LOCK ASSY, FRONT DOOR, RH
69320LOCK ASSY, FRONT DOOR, LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
SU00300063
mainSU003-00063
SU00302591
mainSU003-02591
SU00302913
mainSU003-02913
SU00302934
mainSU003-02934
20 parts on this diagram · 1 diagram in section
FRONT DOOR LOCK & HANDLE for Toyota 86
This section contains 20 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota 86. Key components include: FRONT DOOR PANEL & GLASS, FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH, FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH, HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH, HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH.
