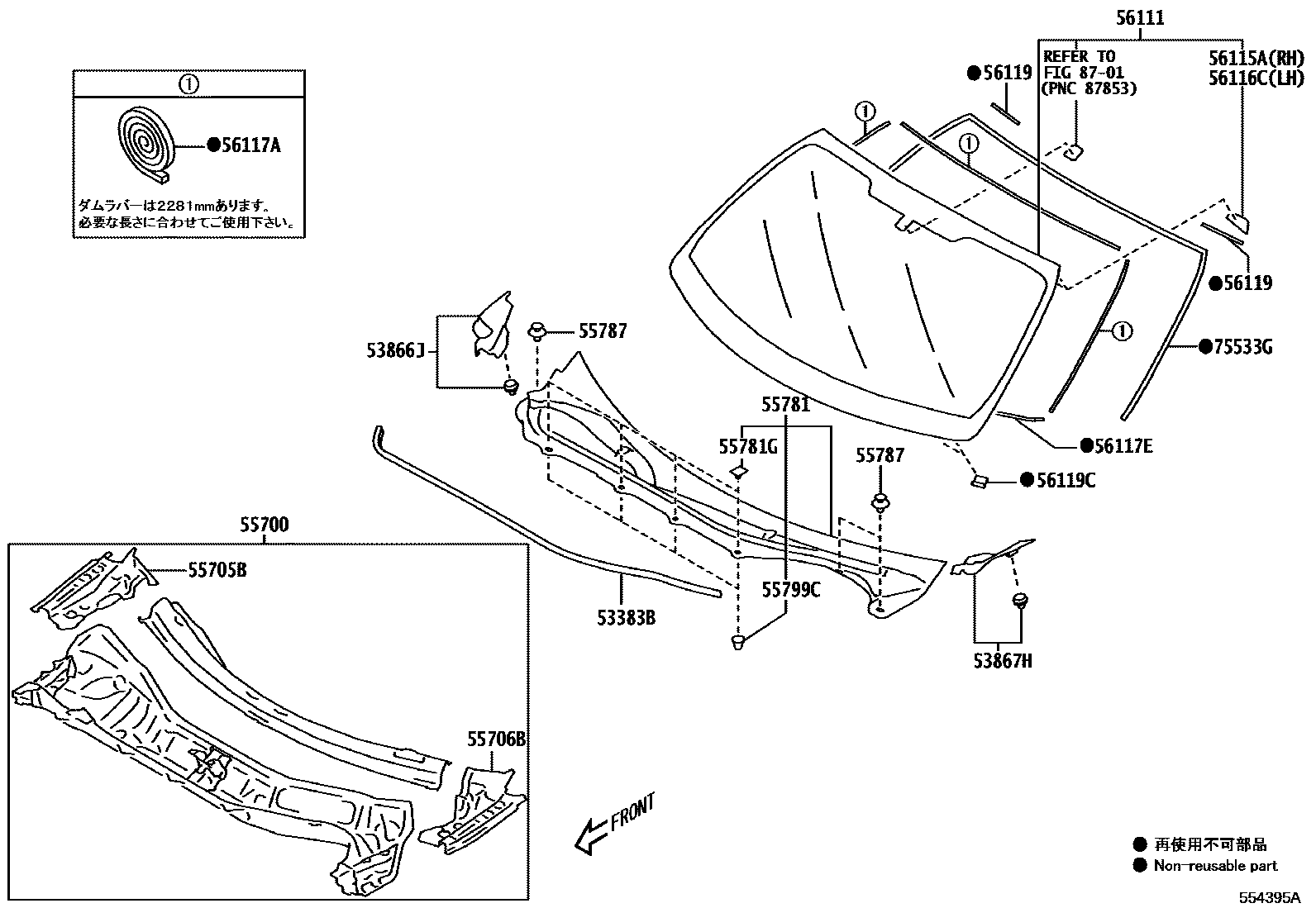

Toyota 86 — COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

mainSU00307339i201608-202104

53866JSEAL, FRONT FENDER TO COWL SIDE, RH

mainSU00305729i201608-202104

53867HSEAL, FRONT FENDER TO COWL SIDE, LH

mainSU00305730i201608-202104

55700PANEL ASSY, FRONT

mainSU00301235i201608-202104

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

mainSU00301237i201608-202104

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

mainSU00301238i201608-202104

55781LOUVER, COWL VENTILATOR

mainSU00303133i201608-202104

55781GCLIP, COWL TOP VENTILATOR LOUVER

mainSU00303141i201608-202104

55787CLIP, COWL VENTILATOR LOUVER, INNER

mainSU00302987i201608-202104

55799CCLIP, COWL TOP VENTILATOR LOUVER

mainSU00303140i201608-202104

56111GLASS, WINDSHIELD

mainSU003G0004i201608-201709

mainSU003G0005i201608-201709

mainSU003G0029i201709-202104

mainSU003G0030i201709-202104

56115ASTOPPER, WINDSHIELD GLASS, NO.1

mainSU00301888i201608-202104

56116CSTOPPER, WINDSHIELD GLASS, NO.2

mainSU00301889i201608-202104

56117ADAM, WINDOW GLASS ADHESIVE

mainSU00301890i201608-202104

56117EDAM, WINDOW GLASS ADHESIVE

mainSU00301892i201608-201804

mainSU00308048i201805-202104

56119SEAL, WINDSHIELD GLASS

mainSU00301894i201608-202104

56119CSEAL, WINDSHIELD GLASS

mainSU00301895i201608-202104

75533GMOULDING, WINDSHIELD, OUTSIDE

mainSU00301893i201608-202104

8701MIRROR

→ Go to FIG 87-01

19 parts on this diagram · 1 diagram in section

COWL PANEL & WINDSHIELD GLASS for Toyota 86

This section contains 19 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota 86. Key components include: SEAL, HOOD TO COWL TOP, SEAL, FRONT FENDER TO COWL SIDE, RH, SEAL, FRONT FENDER TO COWL SIDE, LH, PANEL ASSY, FRONT, PANEL SUB-ASSY, COWL TOP SIDE, RH.
