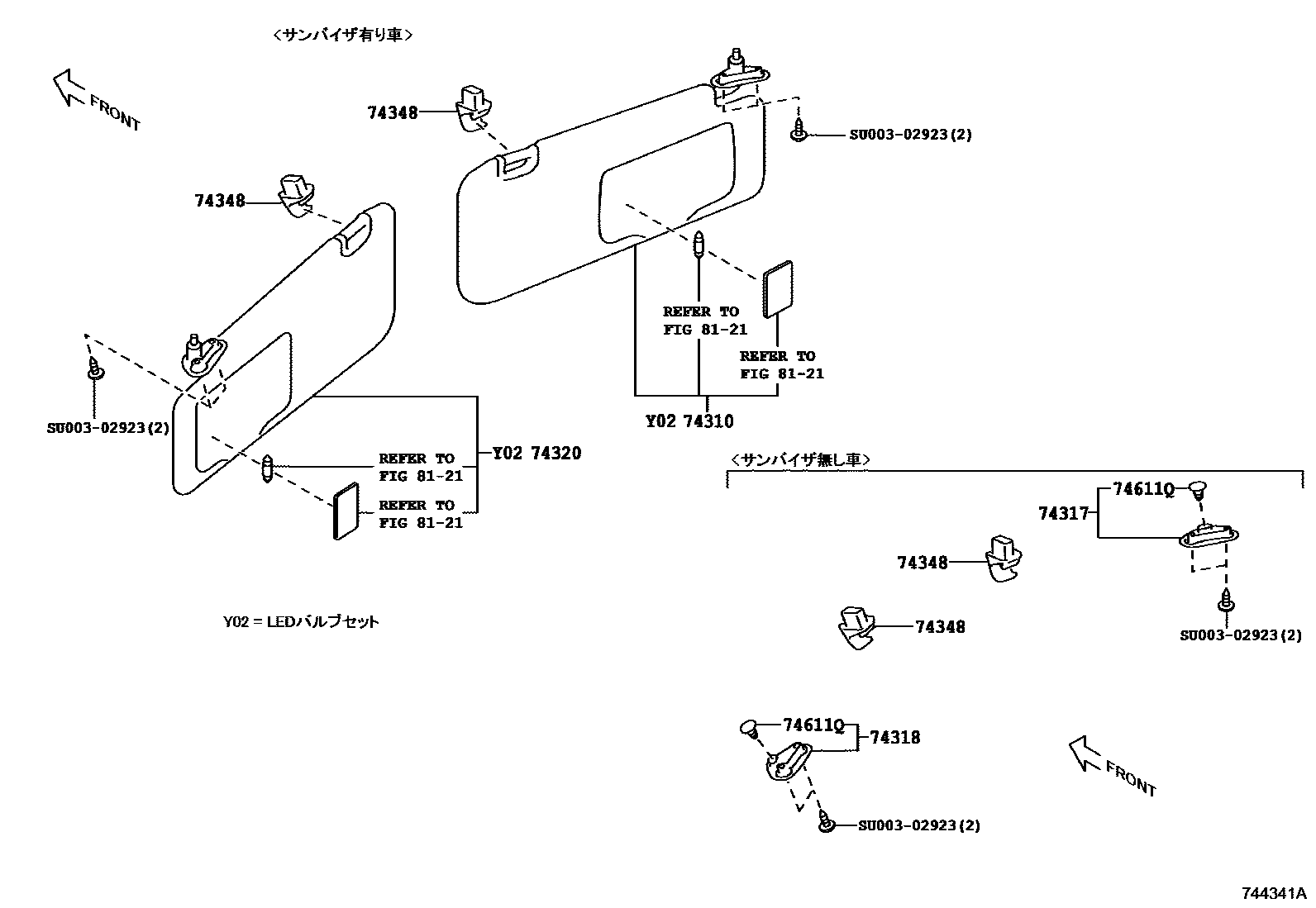

Toyota 86 — ARMREST & VISOR

74310VISOR ASSY, RH

mainSU00303146i201608-202104

BLACK

mainSU00303159i201608-202104

BLACK

74317COVER, VISOR BRACKET, RH

mainSU00304564i201608-202104

BLACK

74318COVER, VISOR BRACKET, LH

mainSU00304564i201608-202104

BLACK

74320VISOR ASSY, LH

mainSU00305602i201608-202104

BLACK

mainSU00305604i201608-202104

BLACK

74348HOLDER, VISOR

mainSU00303180i201608-202104

BLACK

74611QCLIP

mainSU00304228i201608-202104

BLACK

8121INTERIOR LAMP

→ Go to FIG 81-21

SU00302923

mainSU003-02923

8 parts on this diagram · 2 diagrams in section

ARMREST & VISOR for Toyota 86

This section contains 22 genuine Toyota parts for the ARMREST & VISOR system of the Toyota 86. Key components include: FRONT DOOR PANEL & GLASS, FRONT DOOR LOCK & HANDLE, ARMREST ASSY, FRONT, RH, ARMREST ASSY, FRONT, LH, COVER, DOOR ARMREST, RH.
