Toyota 86 — ANTENNA

86101CORD SUB-ASSY, ANTENNA

mainSU00302659i201308-201312

mainSU00305230i201504-201607

86101DCORD SUB-ASSY, ANTENNA, NO.3

mainSU00302661i201308-201312

mainSU00305232i201312-201405

86101JCORD SUB-ASSY, ANTENNA, NO.2

mainSU00302658i201203-201308

mainSU00305229i201405-201503

86300BANTENNA ASSY, AMPLIFIER, NO.1

mainSU00302654i201203-201308

mainSU00305507i201405-201503

GALAXY BLUE SILICA,E8H

mainSU00305508i201504-201607

DARK GRAY METALLIC,61K

mainSU00305509i201405-201503

ORANGE METALLIC,H8R

mainSU00305510i201405-201503

LIGHTNING RED,C7P

mainSU00305511i201405-201503

ICE SILVER METALLIC,G1U

mainSU00305512i201405-201503

CRYSTAL BLACK SILICA; CRYSTAL BLACK SILICA,D4S

mainSU00305513i201405-201503

CRYSTAL WHITE PEARL,K1X

mainSU00305968i201504-201607

LAPIS BLUE PEARL,K3X

mainSU00305969i201504-201607

PURE RED,M7Y

mainSU00306201i201504-201607

SUNRISE YELLOW,C2Z

main86300-WY020i201504-201606

main86300-WY030i201504-201606

86309EPOLE SUB-ASSY, ROOF ANTENNA

mainSU00302656i201203-201308

86396NUT, ANTENNA

mainSU00302662i201203-201308

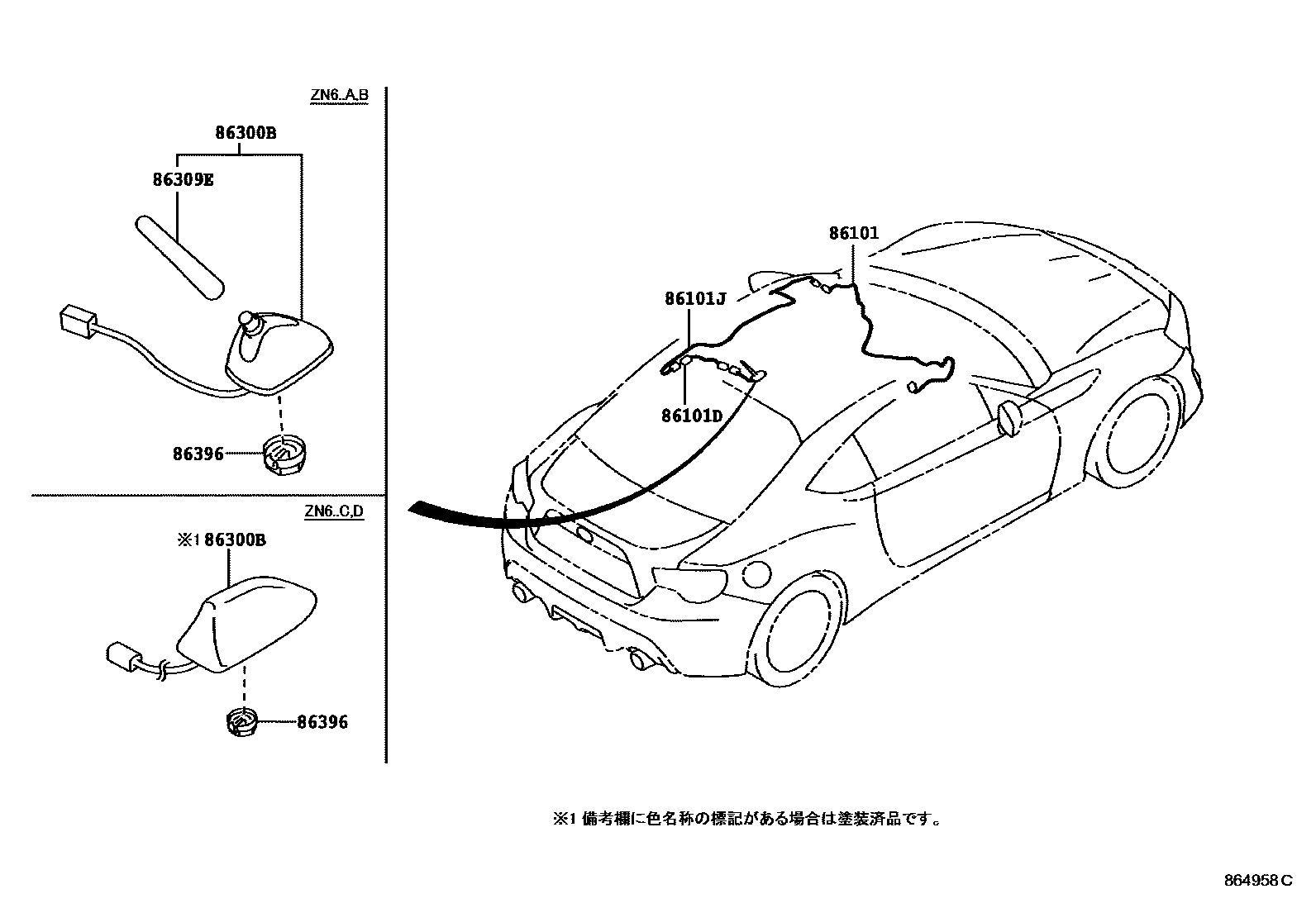

6 parts on this diagram · 1 diagram in section

ANTENNA for Toyota 86

This section contains 6 genuine Toyota parts for the ANTENNA system of the Toyota 86. Key components include: CORD SUB-ASSY, ANTENNA, CORD SUB-ASSY, ANTENNA, NO.3, CORD SUB-ASSY, ANTENNA, NO.2, ANTENNA ASSY, AMPLIFIER, NO.1, POLE SUB-ASSY, ROOF ANTENNA.
