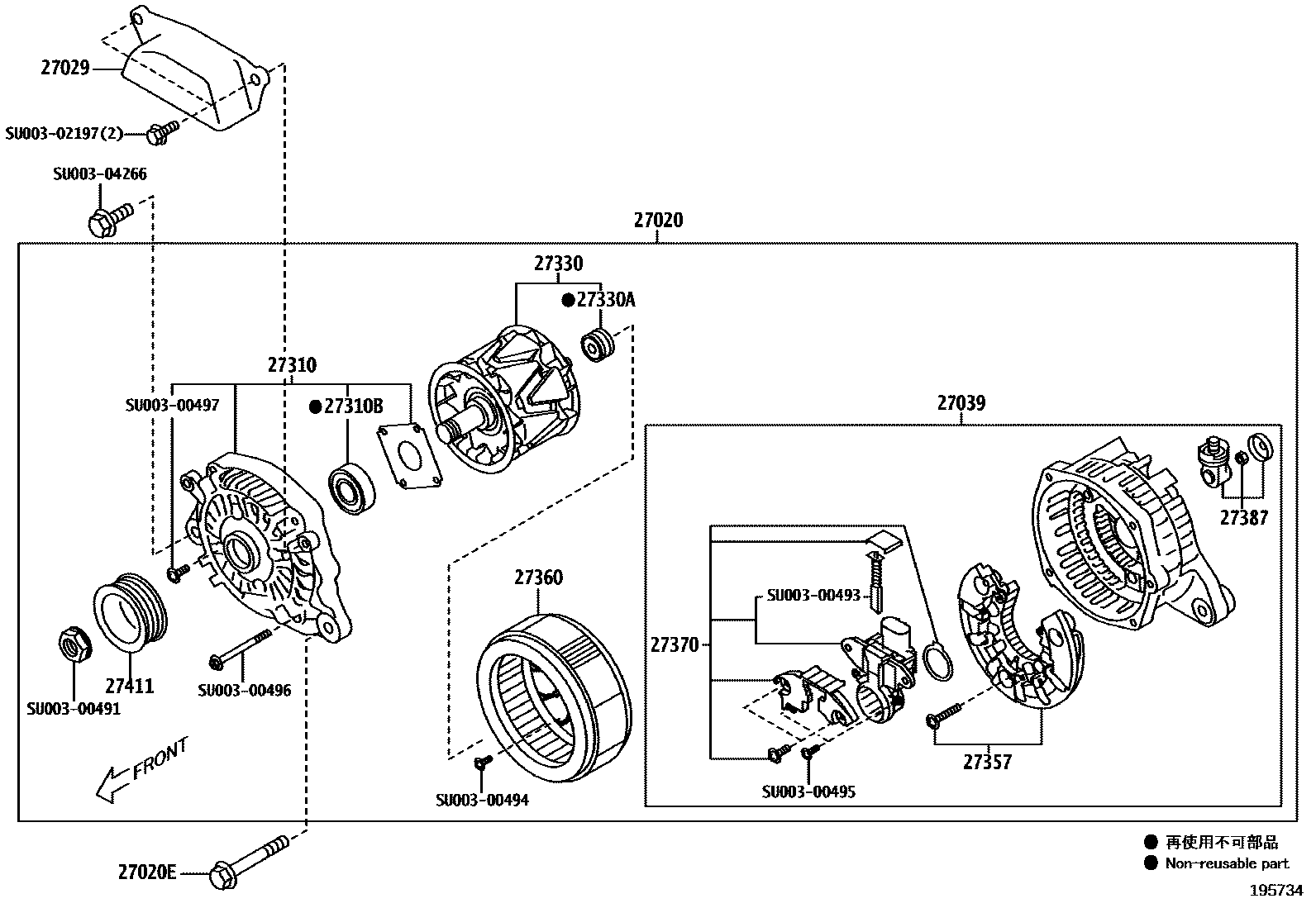

Toyota 86 — ALTERNATOR

27020ALTERNATOR ASSY

mainSU00305860i201608-201709

27020EBOLT(FOR ALTERNATOR)

mainSU00304474i201608-201709

27029COVER, ALTERNATOR

mainSU00300506i201608-201709

27039COVER, ALTERNATOR REAR END

mainSU00300490i201608-201709

27310FRAME ASSY, DRIVE END, ALTERNATOR

mainSU00307180i201608-201709

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

mainSU00305861i201608-201709

27330ROTOR ASSY, ALTERNATOR

mainSU00307179i201608-201709

mainSU00307827i201709-201804

27330ABEARING(FOR ALTERNATOR ROTOR)

mainSU00305862i201608-201709

27357HOLDER, ALTERNATOR, W/RECTIFIER

mainSU00300513i201608-201709

27360COIL ASSY, ALTERNATOR

mainSU00300486i201608-201709

27370HOLDER ASSY, ALTERNATOR BRUSH

mainSU00300512i201608-201709

27387INSULATOR, TERMINAL

mainSU00300511i201608-201709

27411PULLEY, ALTERNATOR

mainSU00300492i201608-201709

SU00300491

mainSU003-00491

SU00300493

mainSU003-00493

SU00300494

mainSU003-00494

SU00300495

mainSU003-00495

SU00300496

mainSU003-00496

SU00300497

mainSU003-00497

SU00302197

mainSU003-02197

SU00304266

mainSU003-04266

21 parts on this diagram · 1 diagram in section

ALTERNATOR for Toyota 86

This section contains 21 genuine Toyota parts for the ALTERNATOR system of the Toyota 86. Key components include: ALTERNATOR ASSY, BOLT(FOR ALTERNATOR), COVER, ALTERNATOR, COVER, ALTERNATOR REAR END, FRAME ASSY, DRIVE END, ALTERNATOR.
