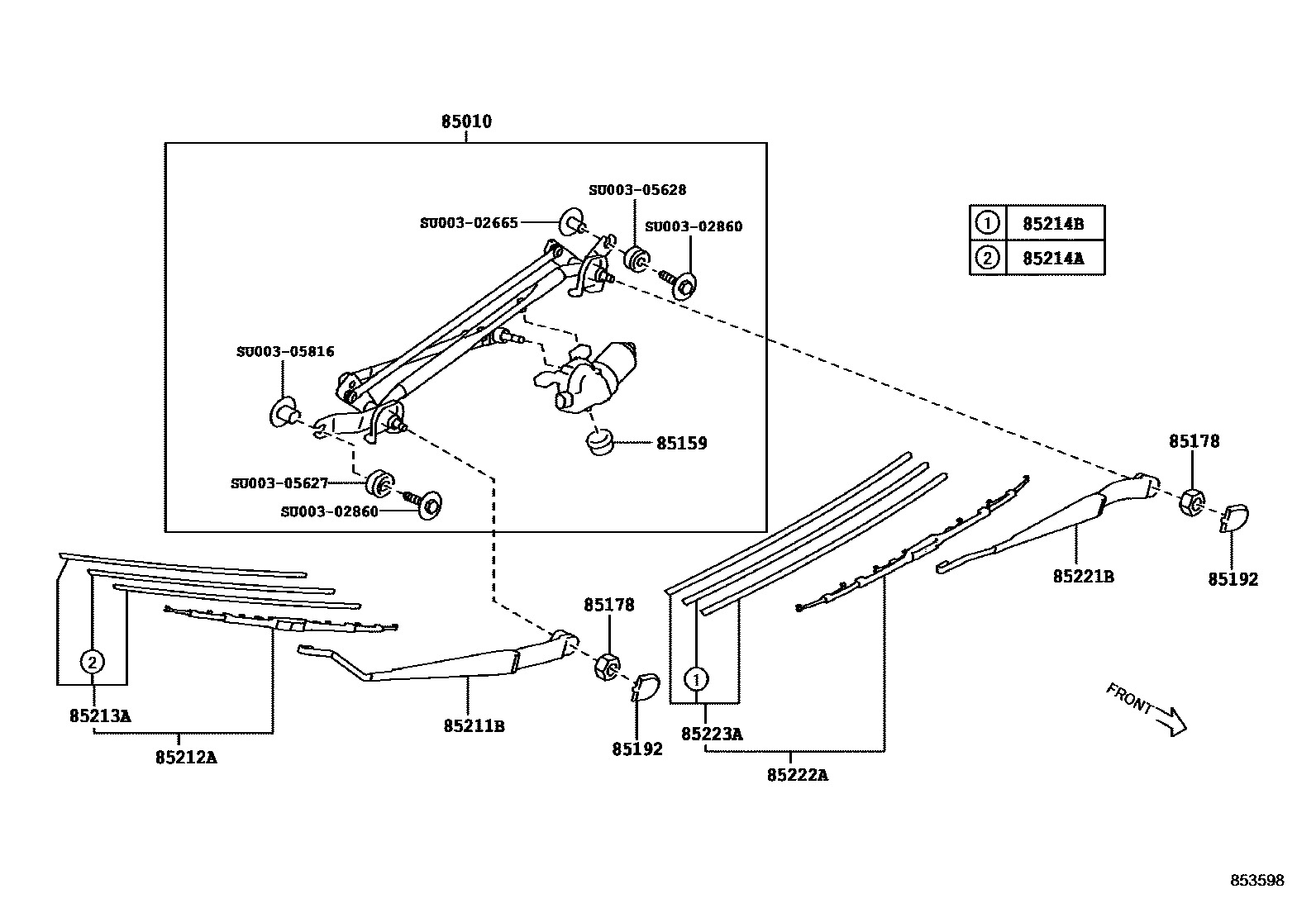

Toyota 86 — WINDSHIELD WIPER

0001 1 0002 1

85010MOTOR & LINK ASSY, FR WIPER

mainSU00305709iZN6..RHD201608-201709

mainSU00305710iZN6..LHD..H201903-202104

85159CUSHION, WINDSHIELD WIPER MOTOR

mainSU00302686iZN6201608-201709

85178NUT (FOR FRONT WIPER ARM SETTING)

mainSU00304731×2iZN6201608-201709

85192COVER, WINDSHIELD WIPER ARM

mainSU00302675×2iZN6..H201903-202104

85211BARM, FRONT WIPER, RH

mainSU00302667iZN6..RHD..G201804-201904

mainSU00302672iZN6..LHD201608-201709

85212ABLADE, FR WIPER, RH

mainSU00302676iZN6..RHD201608-201709

sub85212-53070

mainSU00302681iZN6..LHD201608-201709

sub85212-12470

mainSU00309449iZN6..RHD202006-202104

mainSU00309452iZN6..LHD202006-202104

85213ARUBBER, WIPER BLADE, RH

mainSU00304213iZN6..RHD..H201903-202104

mainSU00304214iZN6..LHD201608-201709

85214ARUBBER, WIPER, RH

mainSU00304215iZN6..RHD201710-201803

sub85214-53080

mainSU00304216iZN6..LHD..H201903-202104

sub85214-53090

85214BRUBBER, WIPER, LH

mainSU00304215iZN6..LHD201608-201709

sub85214-53080

mainSU00304216iZN6..RHD..G201804-201904

sub85214-53090

85221BARM, FRONT WIPER, LH

mainSU00302668iZN6..LHD201608-201709

mainSU00302671iZN6..RHD201710-201803

85222ABLADE, FR WIPER, LH

mainSU00302677iZN6..LHD..H201903-202005

mainSU00302680iZN6..RHD..H201903-202004

sub85222-12880

mainSU00309450iZN6..LHD202006-202104

mainSU00309451iZN6..RHD202004-202104

85223ARUBBER, FRONT WIPER BLADE, LH

mainSU00304213iZN6..LHD..G201804-201904

mainSU00304214iZN6..RHD..H201903-202104

SU00302665

mainSU003-02665

SU00302860

mainSU003-02860

SU00305627

mainSU003-05627

SU00305628

mainSU003-05628

SU00305816

mainSU003-05816

17 parts on this diagram · 2 diagrams in section
