Toyota 86 — V-BELT

1105CYLINDER BLOCK

→ Go to FIG 11-05

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

1601WATER PUMP

→ Go to FIG 16-01

16361ABELT, V(FOR FAN & ALTERNATOR)

mainSU00302202i201608-201709

1903ALTERNATOR

→ Go to FIG 19-03

5 parts on this diagram · 1 diagram in section

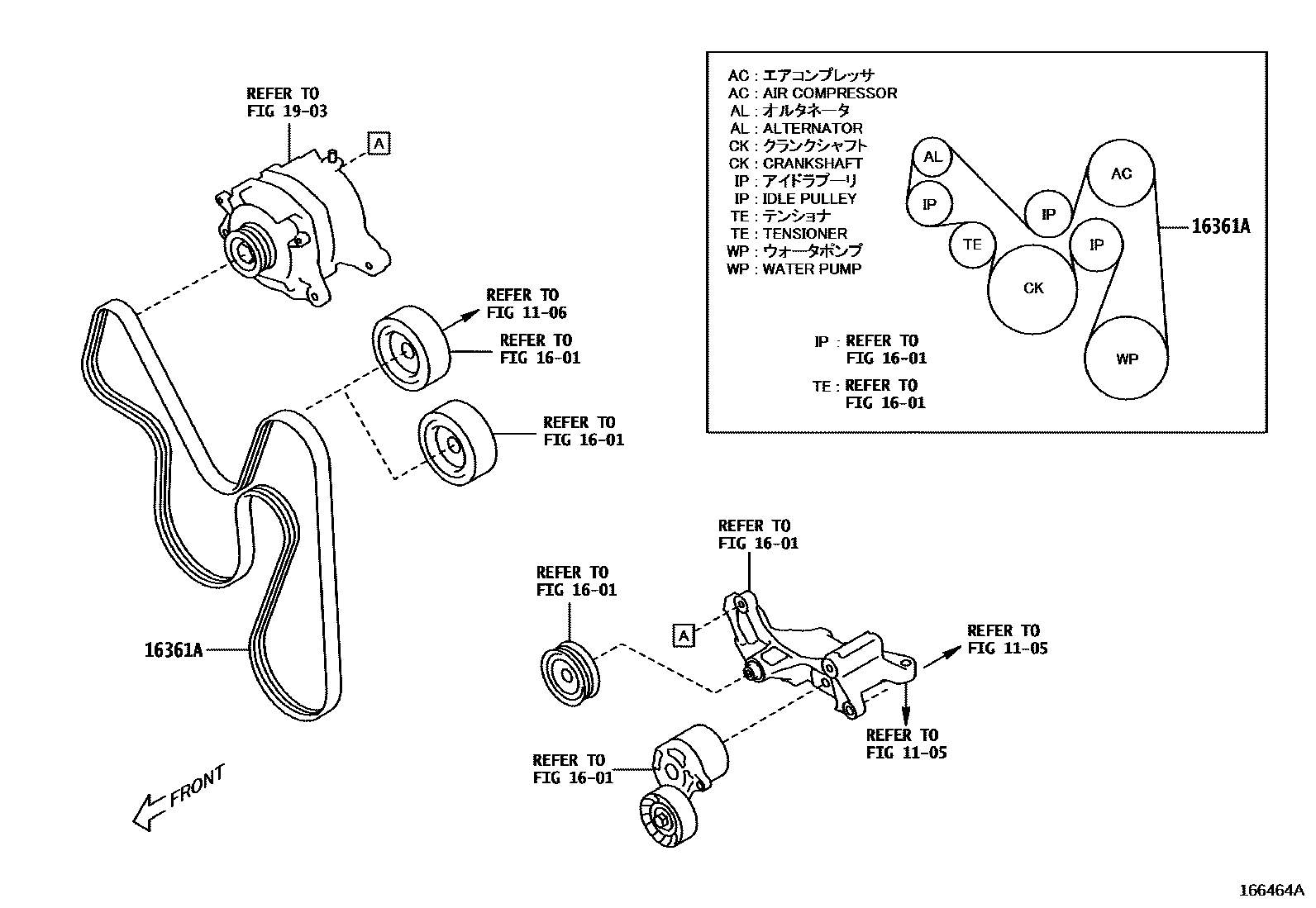

V-BELT for Toyota 86

This section contains 5 genuine Toyota parts for the V-BELT system of the Toyota 86. Key components include: CYLINDER BLOCK, TIMING GEAR COVER & REAR END PLATE, WATER PUMP, BELT, V(FOR FAN & ALTERNATOR), ALTERNATOR.
