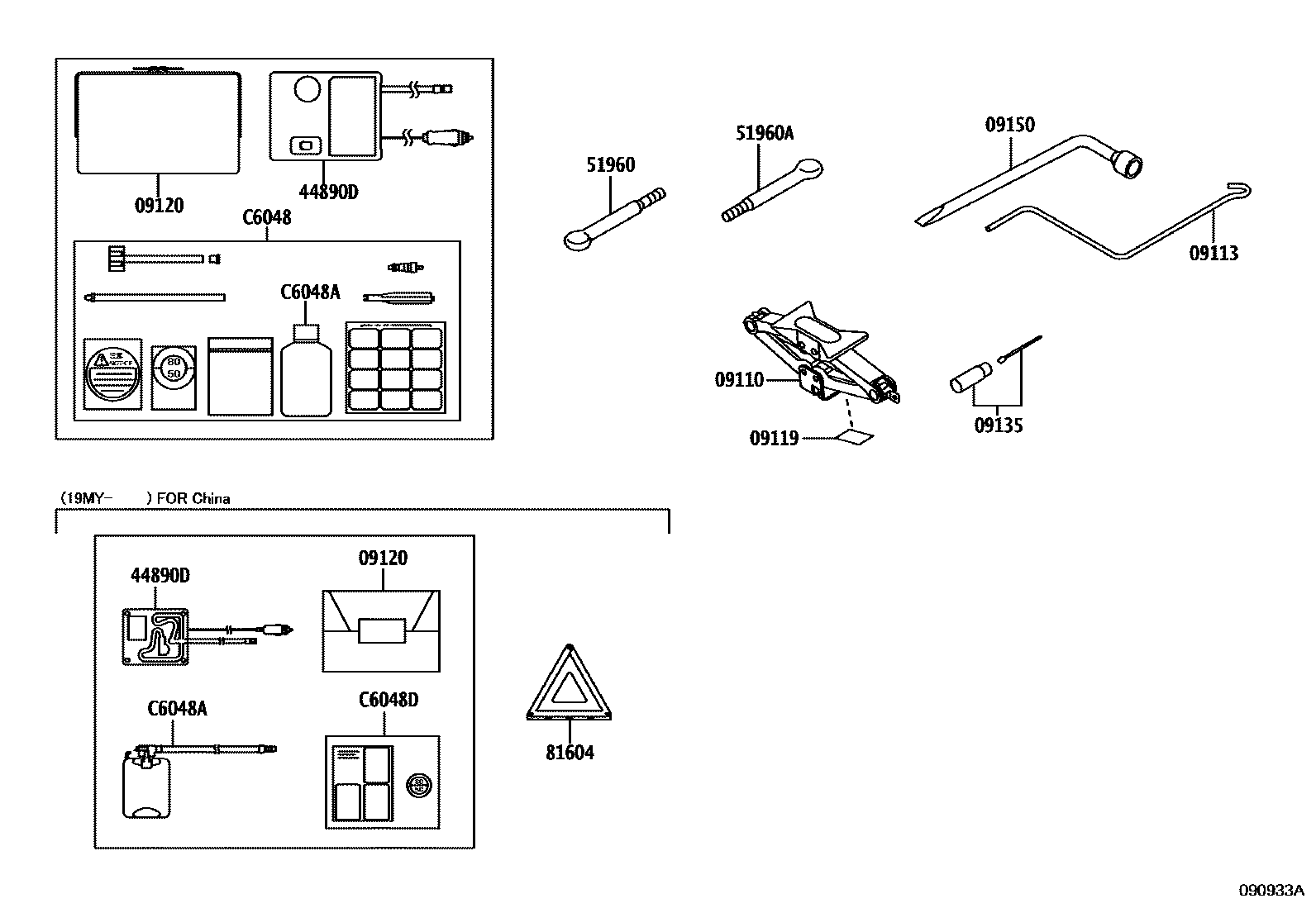

Toyota 86 — STANDARD TOOL

09110JACK ASSY

mainSU00305745iZN6201608-201709

subSU003-09481

09113HANDLE, JACK

mainSU00303402iZN6201608-201709

09119LABEL, JACK CAUTION

mainSU00307261iZN6201608-201704

mainSU00307588iZN6201704-201709

09120BAG, TOOL

mainSU00304285iZN6..6F..EUR;ZN6..LHD..6FC..EUR201608-201709

mainSU00308082iZN6..CHI5201903-202104

09135DRIVER, SCREW

mainSU00301988iZN6201608-201709

subSU003-03448

09150WRENCH, HUB NUT BOX

mainSU00303400iZN6201608-201709

44890DCOMPRESSOR ASSY, AIR

mainSU00304282iZN6..6F..EUR;ZN6..LHD..6FC..EUR201608-201709

subSU003-11612

mainSU00308080iZN6..CHI5201903-202104

subSU003-10919

51960HOOK ASSY, FRONT

mainSU00301544iZN6201608-201709

51960AHOOK ASSY, REAR

mainSU00304614×2iZN6201608-201709

81604REFLECTOR SET, TRIANGLE

mainSU00308076iZN6..CHI5201903-202104

C6048REPAIR SET, TIRE

mainSU00305880iZN6..6F..EUR;ZN6..LHD..6FC..EUR201608-201709

subSU003-11417

C6048ASEALANT, REPAIR TIRE

mainSU00305881iZN6..6F..EUR;ZN6..LHD..6FC..EUR201608-201709

subSU003-11418

mainSU00308081iZN6..CHI5201903-202104

C6048DLABEL & MANUAL

mainSU00308083iZN6..CHI5201903-202104

13 parts on this diagram · 1 diagram in section
