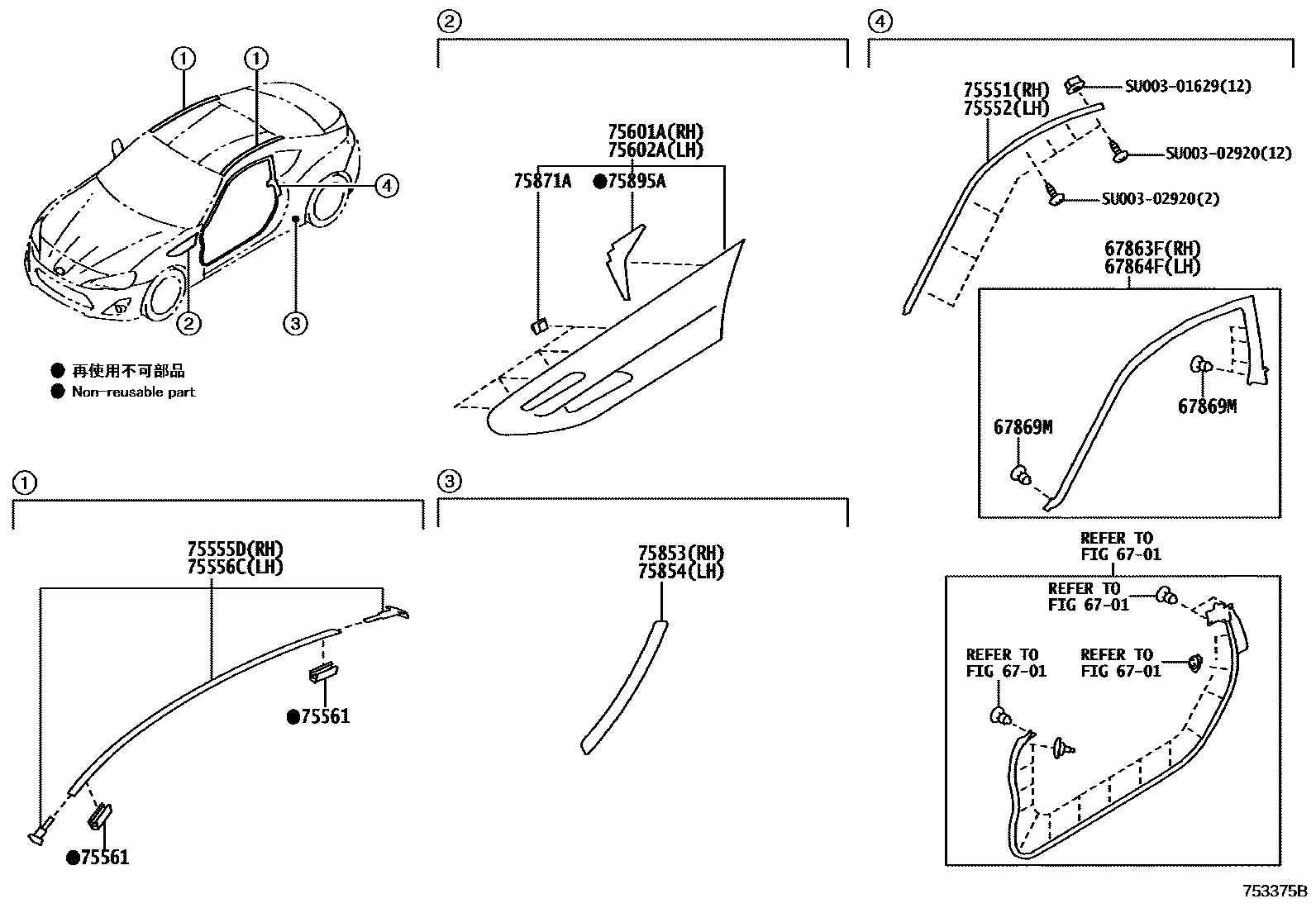

Toyota 86 — SIDE MOULDING

6701FRONT DOOR PANEL & GLASS

→ Go to FIG 67-01

67863FWEATHERSTRIP, FRONT DOOR, NO.2 RH

mainSU00301633i201608-201709

67864FWEATHERSTRIP, FRONT DOOR, NO.2 LH

mainSU00301634i201608-201709

67869MCLIP, DOOR WEATHERSTRIP

mainSU00304053×10i201608-201709

75551MOULDING, ROOF DRIP SIDE FINISH, RH

mainSU00307280i201608-201709

NO PAINT REQ

75552MOULDING, ROOF DRIP SIDE FINISH, LH

mainSU00307281i201608-201709

NO PAINT REQ

75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH

mainSU00307259i201608-201709

75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH

mainSU00307260i201608-201709

75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1

mainSU00304499×4i201608-201709

75601AMOULDING SUB-ASSY, FRONT FENDER, RH

mainSU00306663i201608-201709

MATERIAL COLOR,61K,D4S,G1U,H8R,K1X,K3X,M7Y,NBB

75602AMOULDING SUB-ASSY, FRONT FENDER, LH

mainSU00306671i201608-201709

MATERIAL COLOR,61K,D4S,G1U,H8R,K1X,K3X,M7Y,NBB

75853PROTECTOR, REAR FENDER, RH

mainSU00303130i201608-201709

75854PROTECTOR, REAR FENDER, LH

mainSU00303131i201608-201709

75871ACLIP (FOR FRONT FENDER MOULDING NO.1)

mainSU00303092×12i201608-201709

75895ATAPE, MOULDING, NO.1

mainSU00303132×2i201608-201709

SU00301629

mainSU003-01629

SU00302920

mainSU003-02920

17 parts on this diagram · 1 diagram in section

SIDE MOULDING for Toyota 86

This section contains 17 genuine Toyota parts for the SIDE MOULDING system of the Toyota 86. Key components include: FRONT DOOR PANEL & GLASS, WEATHERSTRIP, FRONT DOOR, NO.2 RH, WEATHERSTRIP, FRONT DOOR, NO.2 LH, CLIP, DOOR WEATHERSTRIP, MOULDING, ROOF DRIP SIDE FINISH, RH.
