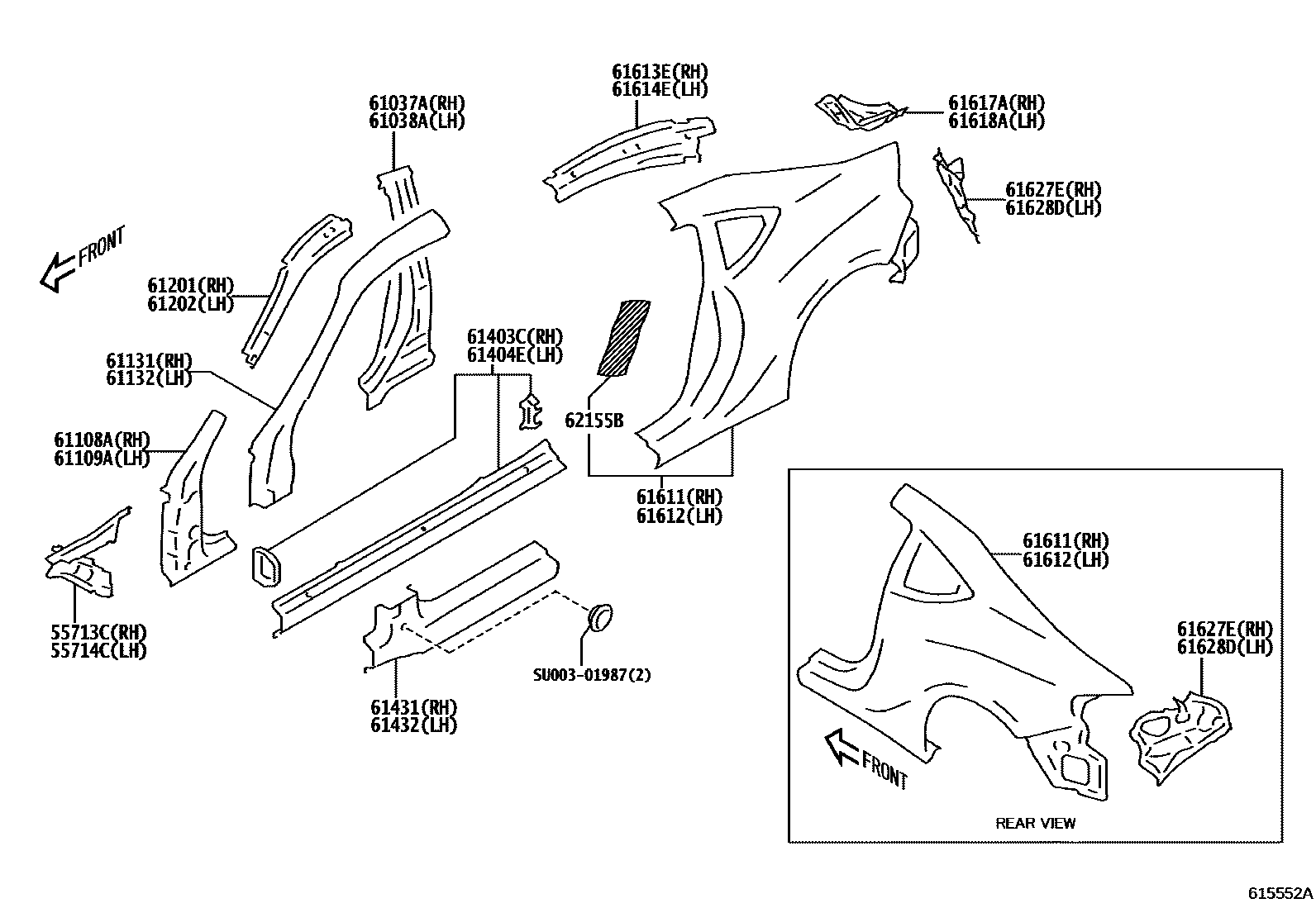

Toyota 86 — SIDE MEMBER
55713CPANEL, COWL TOP SIDE, RH
55714CPANEL, COWL TOP SIDE, LH
61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61038AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH
61131PILLAR, FRONT BODY, UPPER OUTER RH
61132PILLAR, FRONT BODY, UPPER OUTER LH
61201RAIL SUB-ASSY, ROOF SIDE, RH
61202RAIL SUB-ASSY, ROOF SIDE, LH
61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH
61404EREINFORCE SUB-ASSY, ROCKER, OUTER LH
61431PANEL, ROCKER, OUTER REAR RH
61432PANEL, ROCKER, OUTER REAR LH
61611PANEL, QUARTER, RH
61612PANEL, QUARTER, LH
61613EPANEL, QUARTER, INNER RH
61614EPANEL, QUARTER, INNER LH
61617APANEL, QUARTER INNER, REAR RH
61618APANEL, QUARTER, INNER REAR LH
61627EEXTENSION, QUARTER PANEL, REAR LOWER RH
61628DEXTENSION, QUARTER PANEL, REAR LOWER LH
62155BPAD, QUARTER PANEL
SU00301987
mainSU003-01987
24 parts on this diagram · 3 diagrams in section
SIDE MEMBER for Toyota 86
This section contains 54 genuine Toyota parts for the SIDE MEMBER system of the Toyota 86. Key components include: PANEL, COWL TOP SIDE, RH, PANEL, COWL TOP SIDE, LH, PILLAR SUB-ASSY, FRONT BODY, INNER RH, PILLAR SUB-ASSY, FRONT BODY, INNER LH, PILLAR SUB-ASSY, NO.1 INNER, RH.
