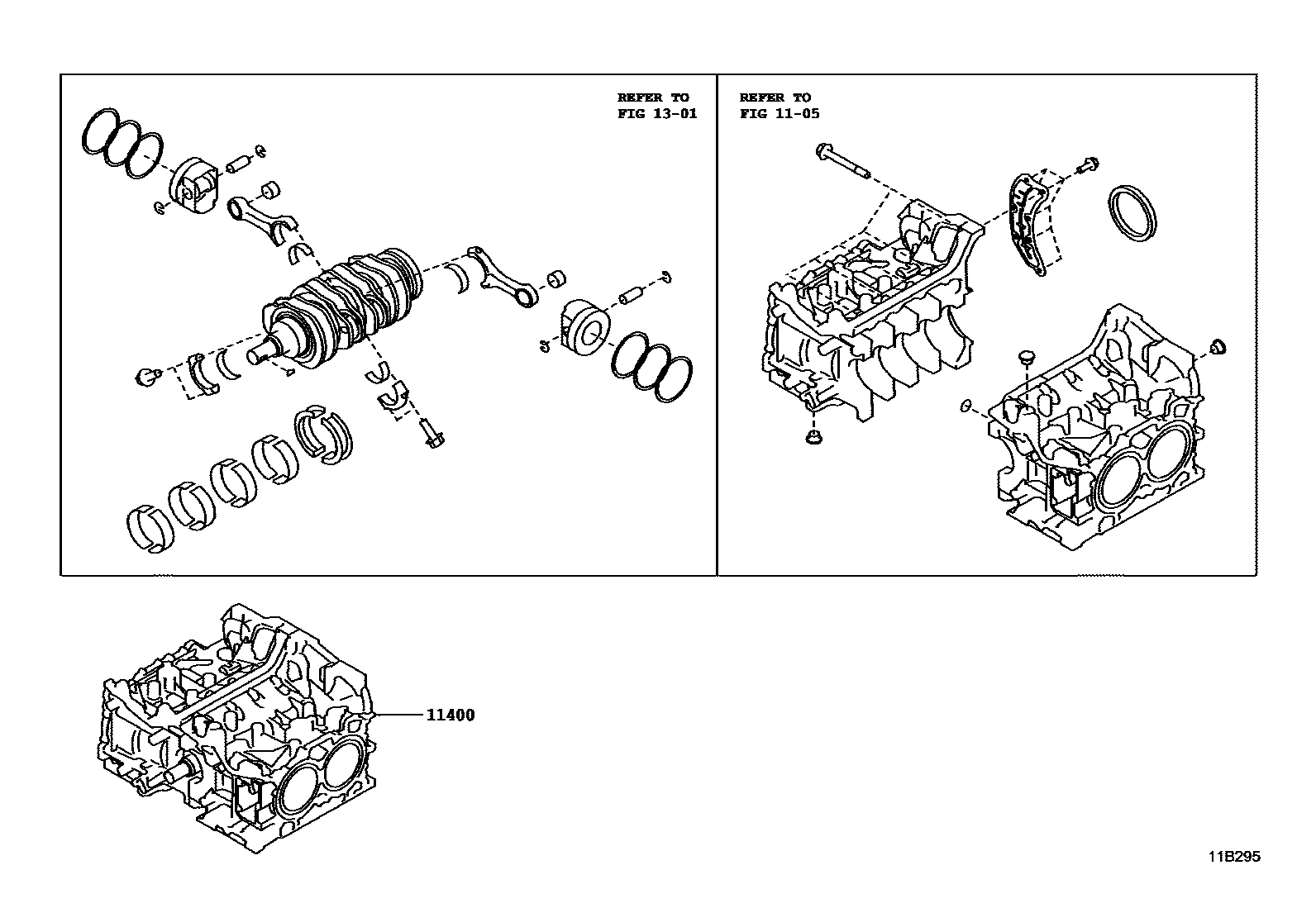

Toyota 86 — SHORT BLOCK ASSEMBLY
1105CYLINDER BLOCK
11400BLOCK ASSY, SHORT
mainSU00307263iFA20..ZN6..6FC;FA20..ZN6..LHD..6F; FA20..ZN6..RHD..6F; FA20..ZN6..RHD..6F..(BASE,HI)201608-201709
DESTINATION CODE=EK; DESTINATION CODE=EN; DESTINATION CODE=ER; DESTINATION CODE=K8; DESTINATION CODE=KC; DESTINATION CODE=KE; DESTINATION CODE=KY
DESTINATION CODE=KA
1301CRANKSHAFT & PISTON
3 parts on this diagram · 1 diagram in section
SHORT BLOCK ASSEMBLY for Toyota 86
This section contains 3 genuine Toyota parts for the SHORT BLOCK ASSEMBLY system of the Toyota 86. Key components include: CYLINDER BLOCK, BLOCK ASSY, SHORT, CRANKSHAFT & PISTON.
