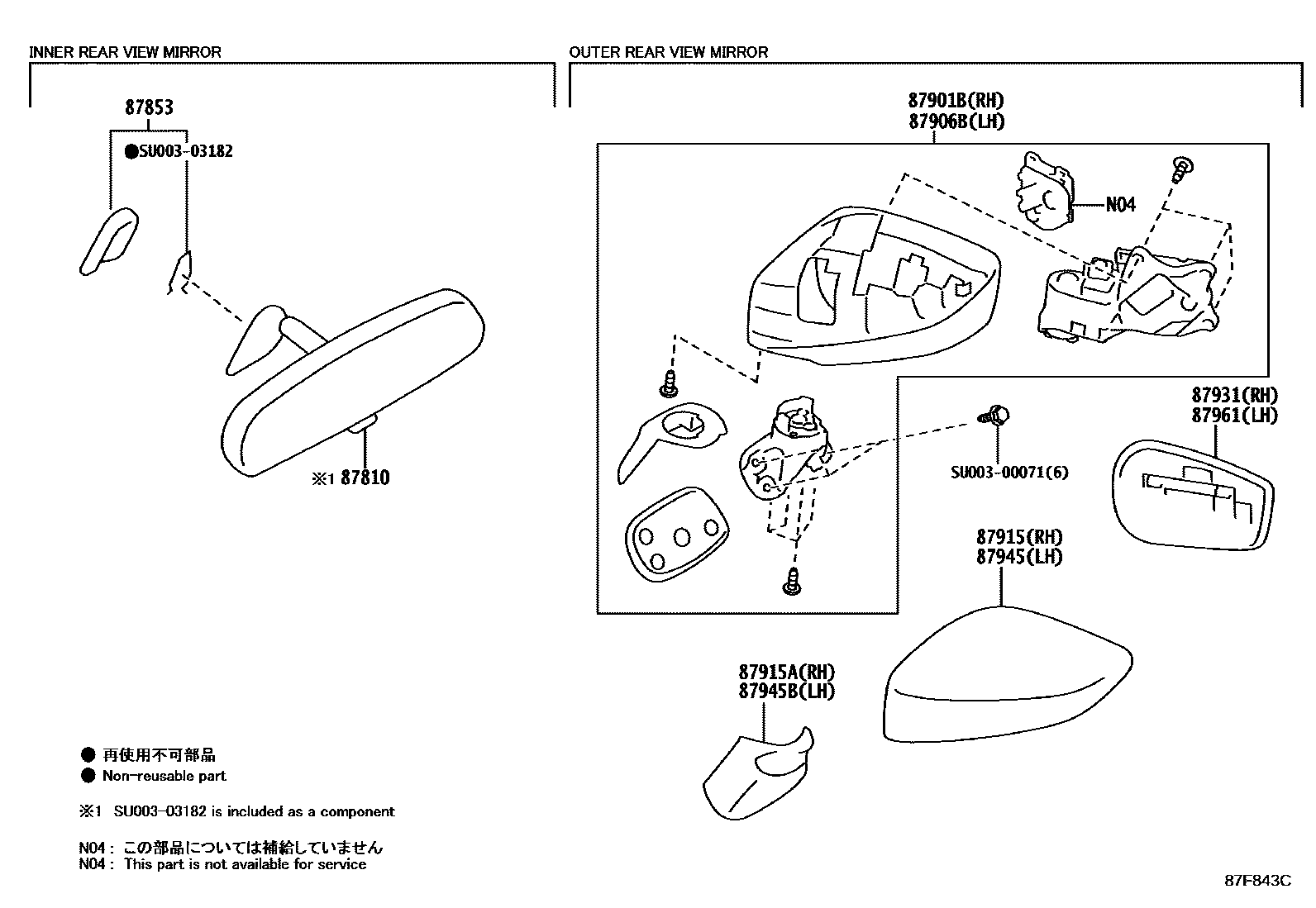

Toyota 86 — MIRROR
87810MIRROR ASSY, INNER REAR VIEW
87853BASE, INNER REAR VIEW MIRROR
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
DESTINATION CODE=EB
DESTINATION CODE=K8
DESTINATION CODE=ER
DESTINATION CODE=K4
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
DESTINATION CODE=EB
DESTINATION CODE=K8
DESTINATION CODE=ER
DESTINATION CODE=E3
87915COVER, OUTER MIRROR, RH
DARK GRAY METALLIC,61K
ORANGE METALLIC,H8R
CRYSTAL BLACK SILICA,D4S,NBB
ICE SILVER METALLIC,G1U
CRYSTAL WHITE PEARL,K1X
LAPIS BLUE PEARL,K3X
PURE RED,M7Y
SOLID GRAY,PBA
BRIGHT BLUE,DAR
MAGNETITE GRAY M,P8Y
87915ACOVER, OUTER MIRROR, RH
87931OUTER MIRROR, RH
DESTINATION CODE=ER
DESTINATION CODE=KV
DESTINATION CODE=KR
87945COVER, OUTER MIRROR, LH
DARK GRAY METALLIC,61K
ORANGE METALLIC,H8R
CRYSTAL BLACK SILICA,D4S,NBB
ICE SILVER METALLIC,G1U
CRYSTAL WHITE PEARL,K1X
LAPIS BLUE PEARL,K3X
PURE RED,M7Y
SOLID GRAY,PBA
BRIGHT BLUE,DAR
MAGNETITE GRAY M,P8Y
87945BCOVER, OUTER MIRROR, LH
87961MIRROR OUTER, LH
DESTINATION CODE=ER
DESTINATION CODE=KV
DESTINATION CODE=KR
SU00300071
mainSU003-00071
SU00303182
mainSU003-03182
12 parts on this diagram · 1 diagram in section
