Toyota 86 — METER

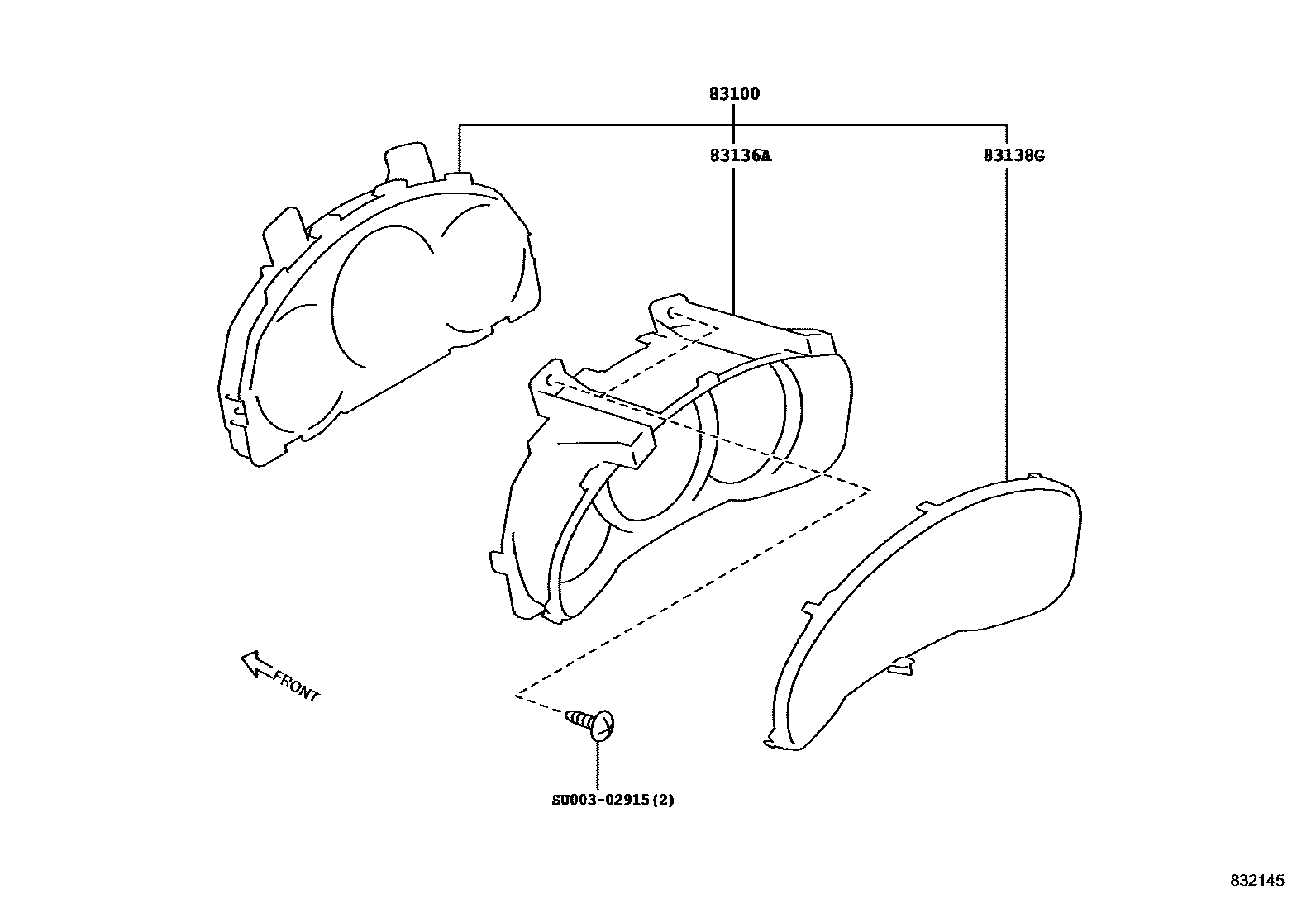

Parts diagram
83100METER ASSY, COMBINATION
mainSU00307011i201608-201709
DENSO
subSU003-10905
mainSU00307014i201608-201709
DENSO,DESTINATION CODE=E2
mainSU00307021i201608-201709
DENSO
mainSU00307004i201710-201803
DENSO,DESTINATION CODE=E2
mainSU00307005i201608-201709
DENSO,DESTINATION CODE=EK
mainSU00307006i201608-201709
DENSO,DESTINATION CODE=K8
mainSU00307007i201804-201904
DENSO,DESTINATION CODE=KA
mainSU00307008i201804-201904
DENSO,DESTINATION CODE=E6
mainSU00307009i201710-201803
DENSO,DESTINATION CODE=E1
subSU003-10904
mainSU00307010i201608-201709
DENSO,DESTINATION CODE=ER
mainSU00307015i201804-201904
DENSO,DESTINATION CODE=EK
mainSU00307016i201608-201709
DENSO,DESTINATION CODE=KA
mainSU00307017i201608-201709
DENSO,DESTINATION CODE=KS
mainSU00307018i201710-201803
DENSO,DESTINATION CODE=E6
mainSU00307019i201608-201709
DENSO,DESTINATION CODE=E1
mainSU00307020i201903-202104
DENSO,DESTINATION CODE=ER
mainSU00307095i201608-201709
DENSO,DESTINATION CODE=KS
mainSU00307096i201710-201803
DENSO,DESTINATION CODE=K8
mainSU00307707i201903-202104
DENSO,DESTINATION CODE=KS
mainSU00308160i201903-202104
DESTINATION CODE=EP
mainSU00308161i201903-202104
DESTINATION CODE=EK
mainSU00308162i201903-202104
DESTINATION CODE=K8
mainSU00308163i201903-202104
DESTINATION CODE=KA
mainSU00308164i201903-202104
DESTINATION CODE=KS
mainSU00308165i201903-202104
DESTINATION CODE=KF
mainSU00308166i201903-202104
DESTINATION CODE=ER
83136ACOVER, COMBINATION METER
mainSU00302617i201710-201803
DESTINATION CODE=EK
mainSU00307022i201804-201904
mainSU00302618i201804-201904
DESTINATION CODE=KA
83138GGLASS, COMBINATION METER
mainSU00302619i201710-201803
SU00302915
mainSU003-02915

4 parts on this diagram · 1 diagram in section
