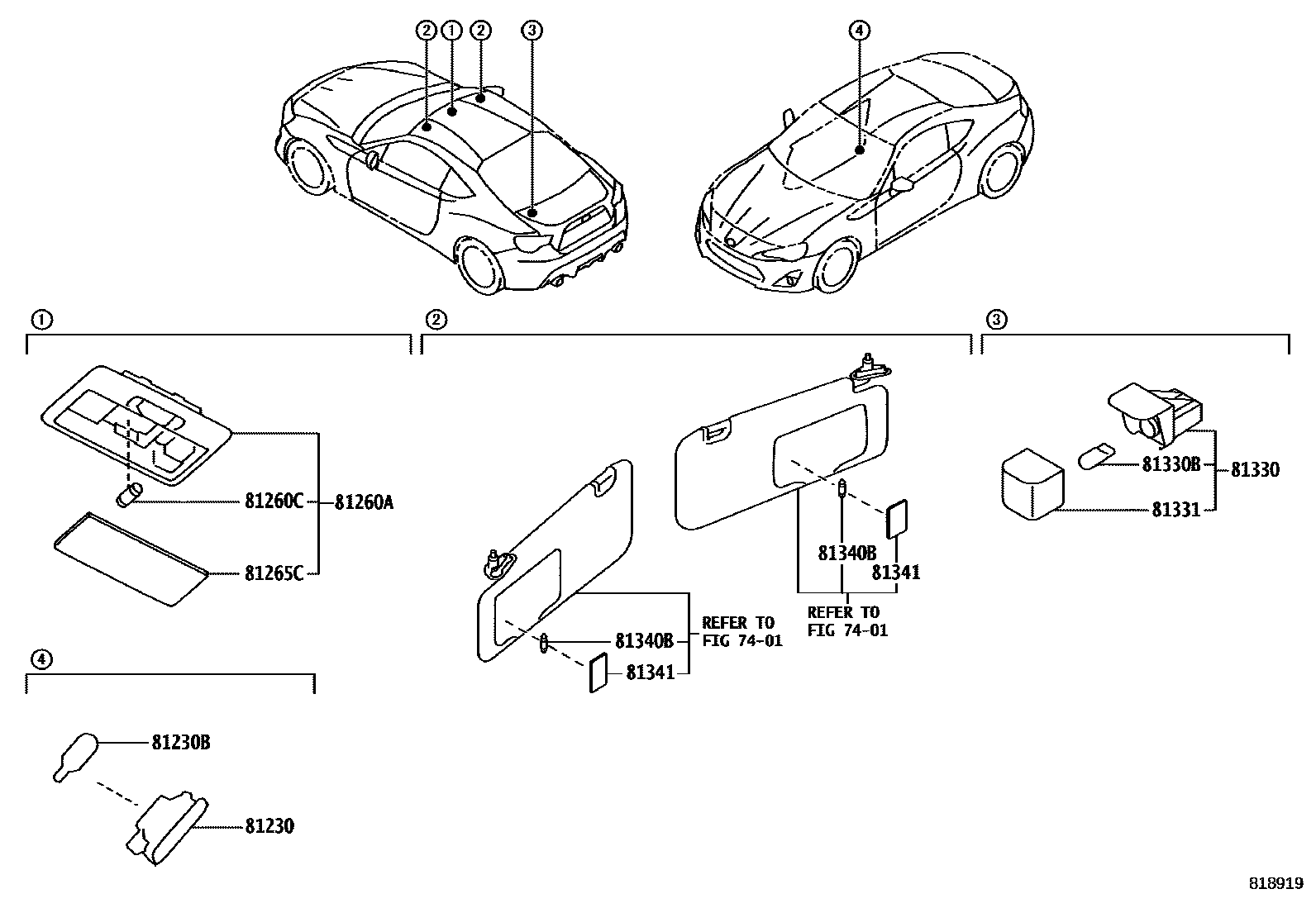

Toyota 86 — INTERIOR LAMP

7401ARMREST & VISOR

→ Go to FIG 74-01

81230LAMP ASSY, COURTESY

mainSU00303290×2i201608-201709

81230BBULB(FOR COURTESY LAMP)

mainSU00303297×2i201608-201709

12V 5W

81260ALAMP ASSY, MAP

mainSU00302522i201608-201709

BLACK

81260CBULB(FOR MAP LAMP)

mainSU00302569i201608-201709

12V 10W

81265CLENS, MAP LAMP, NO.1

mainSU00302526i201608-201709

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

mainSU00302521i201608-201709

mainSU00308197i201903-201904

mainSU00308734i202006-202104

81330BBULB, LUGGAGE COMPARTMENT LAMP

mainSU00301984i201608-201709

12V 5W

mainSU00302129i202006-202104

12V 5W

81331LENS, LUGGAGE COMPARTMENT LAMP

mainSU00302527i201608-201709

81340BBULB (FOR VANITY LAMP)

mainSU00305707×2i201608-201709

12V 2W

81341LENS, VANITY LAMP

mainSU00303185×2i201608-201709

11 parts on this diagram · 1 diagram in section

INTERIOR LAMP for Toyota 86

This section contains 11 genuine Toyota parts for the INTERIOR LAMP system of the Toyota 86. Key components include: ARMREST & VISOR, LAMP ASSY, COURTESY, BULB(FOR COURTESY LAMP), LAMP ASSY, MAP, BULB(FOR MAP LAMP).
