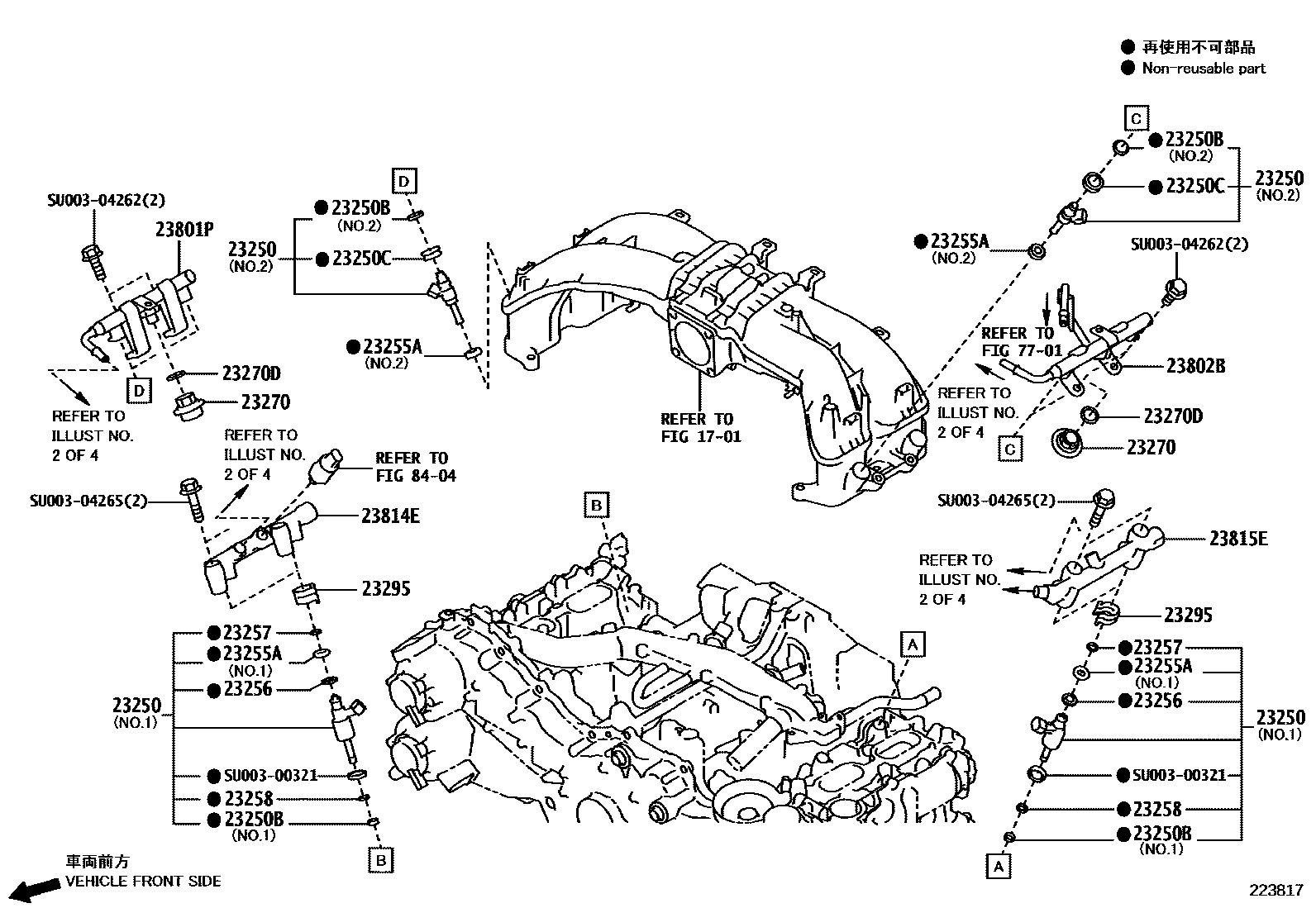

Toyota 86 — FUEL INJECTION SYSTEM
1701MANIFOLD
23250INJECTOR ASSY, FUEL
NO.2
MARK 1,NO.1
MARK 2,NO.1
MARK 3,NO.1
23250BRING, O(FOR FUEL INJECTOR)
NO.1
NO.2
23250CGROMMET(FOR FUEL INJECTOR)
23255ASEAL, FUEL INJECTOR
NO.1
NO.2
23256RING, FUEL INJECTOR BACK-UP, NO.1
23257RING, FUEL INJECTOR BACK-UP, NO.2
23258RING, FUEL INJECTOR BACK-UP, NO.3
23270DAMPER ASSY, FUEL PRESSURE PULSATION
23270DGASKET(FOR PULSATION DAMPER)
23295HOLDER, INJECTOR, NO.1
23801PPIPE SUB-ASSY, FUEL, NO.1
23802BPIPE SUB-ASSY, FUEL, NO.2
23814EPIPE, FUEL DELIVERY, RH
23815PIPE, FUEL DELIVERY, NO.2
23815EPIPE, FUEL DELIVERY, LH
7701FUEL TANK & TUBE
8404ELECTRONIC FUEL INJECTION SYSTEM
SU00300321
mainSU003-00321
SU00304262
mainSU003-04262
SU00304265
mainSU003-04265
21 parts on this diagram · 3 diagrams in section
FUEL INJECTION SYSTEM for Toyota 86
This section contains 35 genuine Toyota parts for the FUEL INJECTION SYSTEM system of the Toyota 86. Key components include: MANIFOLD, VACUUM PIPING, BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR, GASKET, THROTTLE BODY, PUMP ASSY, FUEL (ENGINE ROOM SIDE).
