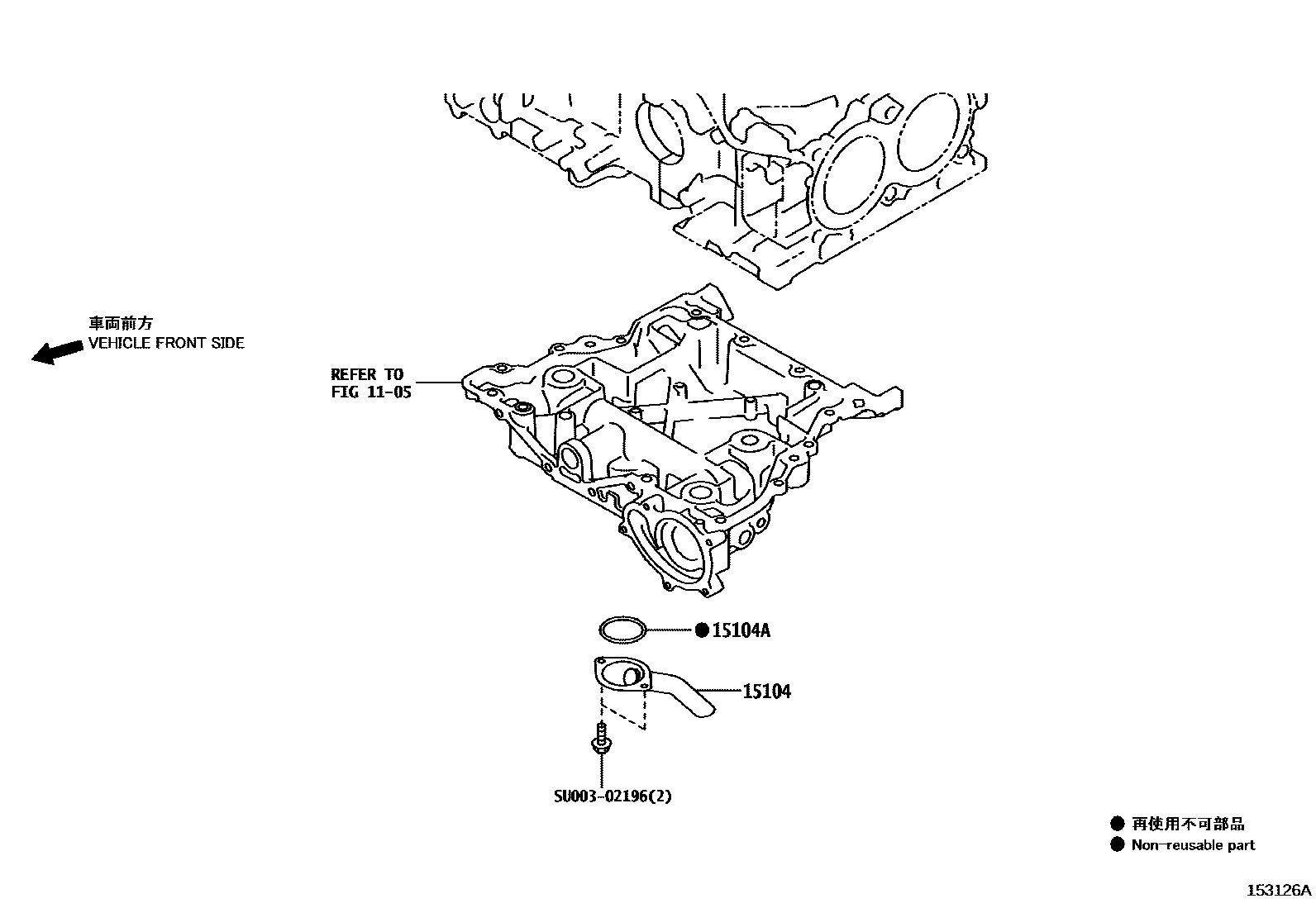

Toyota 86 — ENGINE OIL PUMP

1105CYLINDER BLOCK

→ Go to FIG 11-05

15104STRAINER SUB-ASSY, OIL

mainSU00300305i201608-201709

15104ARING, O(FOR OIL STRAINER)

mainSU00302192i201608-201709

SU00302196

mainSU003-02196

4 parts on this diagram · 1 diagram in section

ENGINE OIL PUMP for Toyota 86

This section contains 4 genuine Toyota parts for the ENGINE OIL PUMP system of the Toyota 86. Key components include: CYLINDER BLOCK, STRAINER SUB-ASSY, OIL, RING, O(FOR OIL STRAINER).
