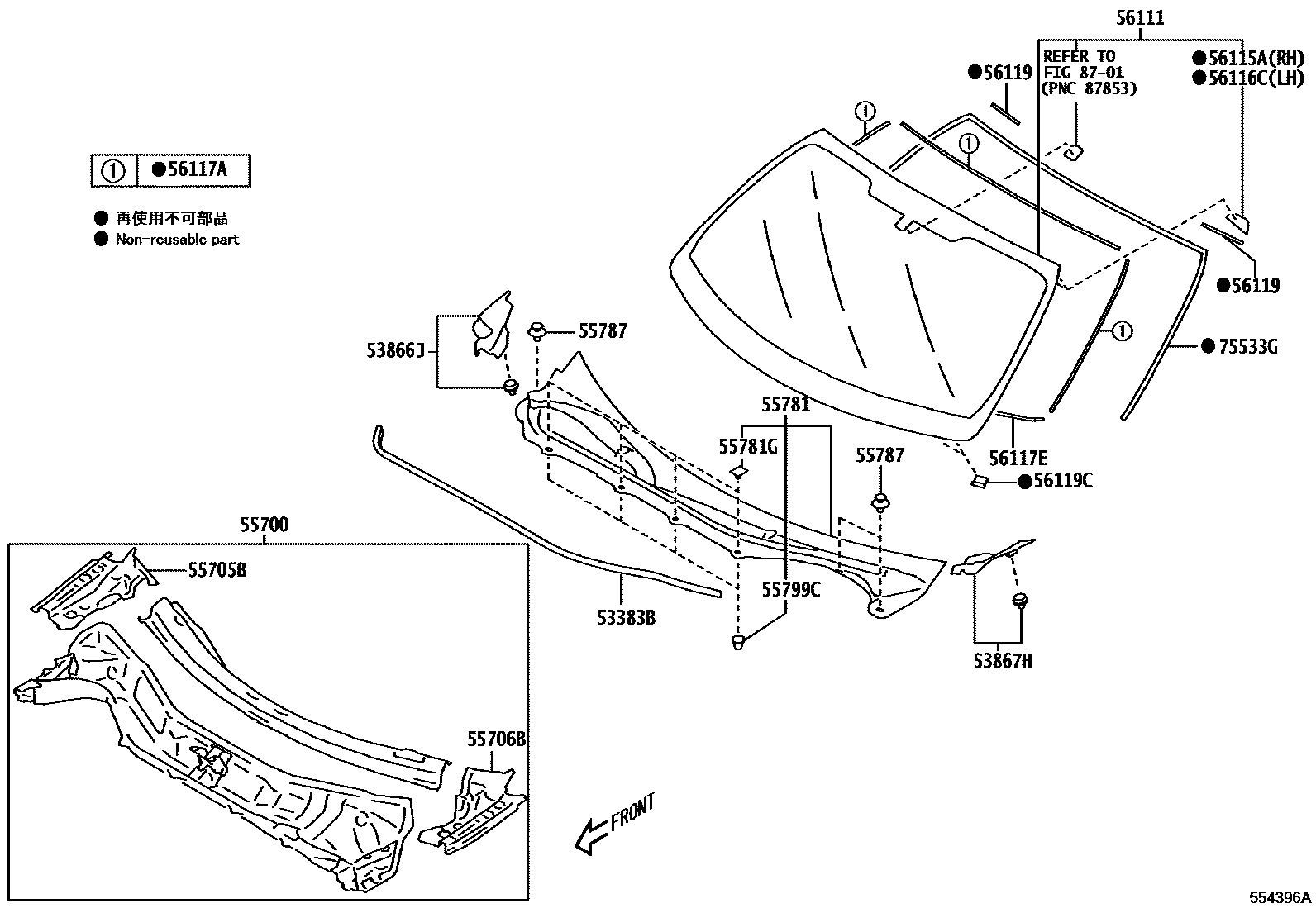

Toyota 86 — COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

mainSU00307339iZN6..G201804-201904

53866JSEAL, FRONT FENDER TO COWL SIDE, RH

mainSU00305729iZN6201608-201709

53867HSEAL, FRONT FENDER TO COWL SIDE, LH

mainSU00305730iZN6..G201804-201904

55700PANEL ASSY, FRONT

mainSU00301235iZN6..RHD201608-201709

mainSU00301236iZN6..LHD..H201903-202104

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

mainSU00301237iZN6201608-201709

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

mainSU00301238iZN6201710-201803

55781LOUVER, COWL VENTILATOR

mainSU00303133iZN6..RHD..G201804-201904

mainSU00303134iZN6..LHD201608-201709

55781GCLIP, COWL TOP VENTILATOR LOUVER

mainSU00303141×4iZN6201608-201709

55787CLIP, COWL VENTILATOR LOUVER, INNER

mainSU00302987×3iZN6..G201804-201904

55799CCLIP, COWL TOP VENTILATOR LOUVER

mainSU00303140×4iZN6201710-201803

56111GLASS, WINDSHIELD

mainSU003G0006iZN6..BASE..H201903-202104

mainSU003G0007iZN6..(HI,SPE)..G201804-201904

56115ASTOPPER, WINDSHIELD GLASS, NO.1

mainSU00301888iZN6..G201804-201904

56116CSTOPPER, WINDSHIELD GLASS, NO.2

mainSU00301889iZN6201608-201709

56117ADAM, WINDOW GLASS ADHESIVE

mainSU00301890iZN6201608-201709

L=2281

56117EDAM, WINDOW GLASS ADHESIVE

mainSU00301892iZN6201608-201709

L=1497.2

mainSU00308048iZN6..G201805-201904

L=1497.2

56119SEAL, WINDSHIELD GLASS

mainSU00301894×2iZN6201608-201709

56119CSEAL, WINDSHIELD GLASS

mainSU00301895×2iZN6201608-201709

75533GMOULDING, WINDSHIELD, OUTSIDE

mainSU00301893iZN6201608-201709

8701

19 parts on this diagram · 1 diagram in section
