Toyota 86 — BACK UP LAMP

81210EBULB, REAR FOG LAMP

mainSU00302567i201710-201803

12V 21W

81670BBULB(FOR BACK-UP LAMP)

mainSU00302130×2i201710-201803

12V 16W

81671ALENS & BODY, BACK-UP LAMP

mainSU00302529i201710-201803

DESTINATION CODE=E1; DESTINATION CODE=E2; DESTINATION CODE=E6; DESTINATION CODE=EA; DESTINATION CODE=EB; DESTINATION CODE=EC; DESTINATION CODE=EP; DESTINATION CODE=KR; DESTINATION CODE=KS

mainSU00302528i201710-201803

DESTINATION CODE=E3; DESTINATION CODE=K4; DESTINATION CODE=KF

81675SOCKET & WIRE, BACK-UP LAMP

mainSU00307120i201608-201709

DESTINATION CODE=E1; DESTINATION CODE=E2; DESTINATION CODE=E6; DESTINATION CODE=E9; DESTINATION CODE=EA; DESTINATION CODE=EB; DESTINATION CODE=EC; DESTINATION CODE=EP; DESTINATION CODE=KR; DESTINATION CODE=KS

mainSU00302575i201608-201709

DESTINATION CODE=E3; DESTINATION CODE=K4; DESTINATION CODE=KF

SU00302800

mainSU003-02800

SU00302984

mainSU003-02984

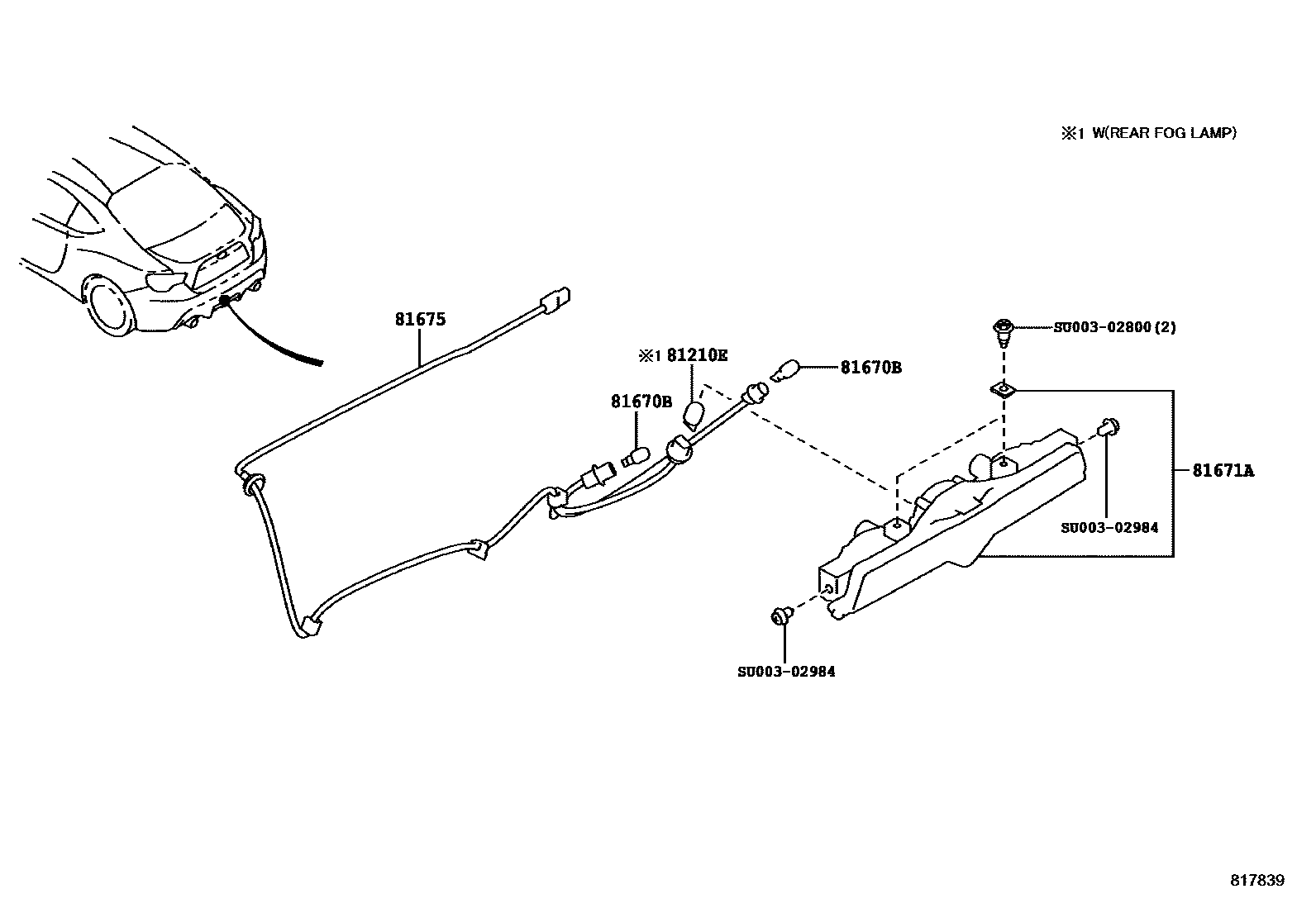

6 parts on this diagram · 1 diagram in section

BACK UP LAMP for Toyota 86

This section contains 6 genuine Toyota parts for the BACK UP LAMP system of the Toyota 86. Key components include: BULB, REAR FOG LAMP, BULB(FOR BACK-UP LAMP), LENS & BODY, BACK-UP LAMP, SOCKET & WIRE, BACK-UP LAMP.
