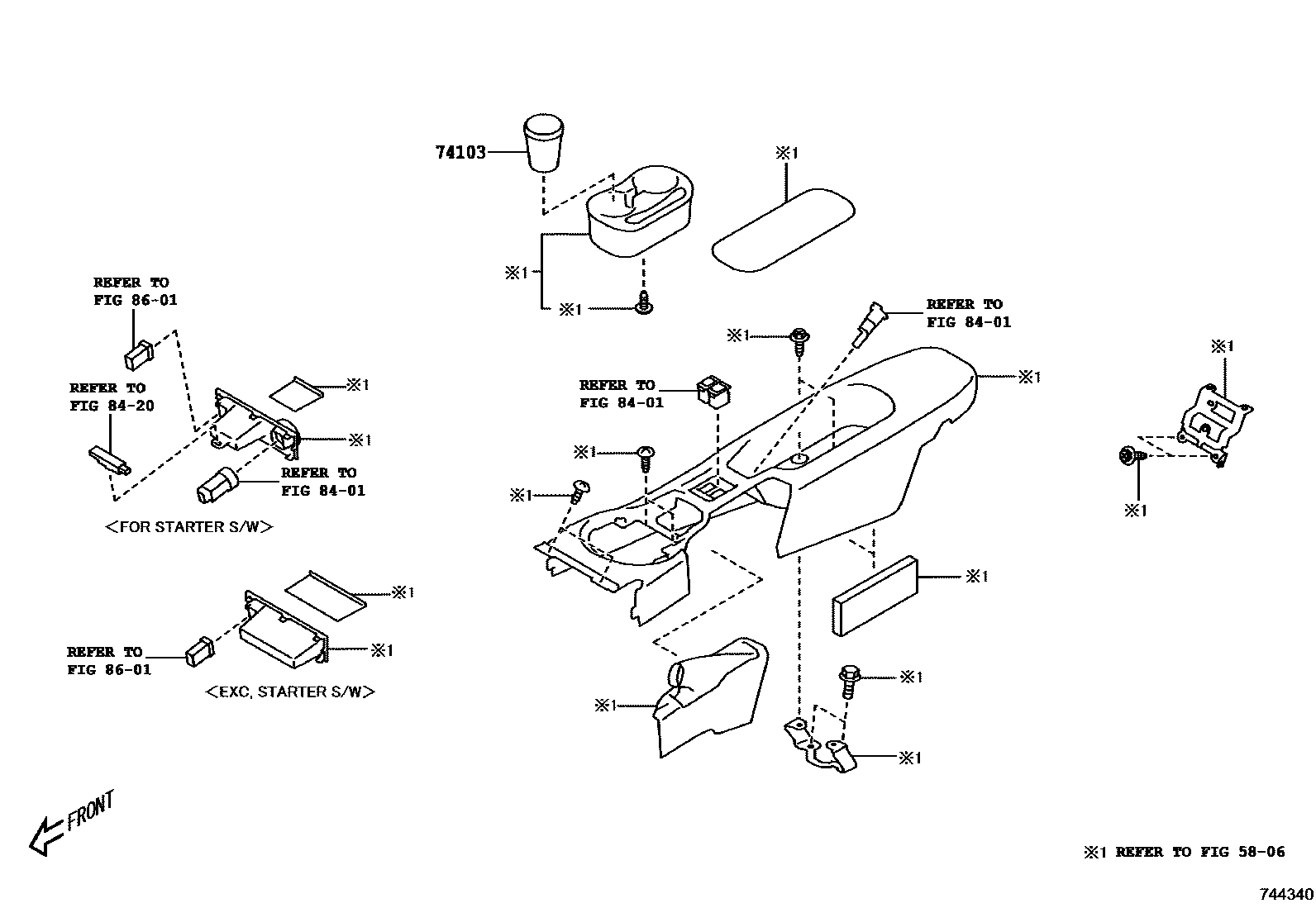

Toyota 86 — ASH RECEPTACLE

5806CONSOLE BOX & BRACKET

→ Go to FIG 58-06

74103RECEPTACLE SUB-ASSY, ASH, NO.1

mainSU00303210i201608-201709

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8420WIRELESS DOOR LOCK

→ Go to FIG 84-20

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

5 parts on this diagram · 1 diagram in section

ASH RECEPTACLE for Toyota 86

This section contains 5 genuine Toyota parts for the ASH RECEPTACLE system of the Toyota 86. Key components include: CONSOLE BOX & BRACKET, RECEPTACLE SUB-ASSY, ASH, NO.1, SWITCH & RELAY & COMPUTER, WIRELESS DOOR LOCK, RADIO RECEIVER & AMPLIFIER & CONDENSER.
