Toyota 86 — FRONT DOOR LOCK & HANDLE

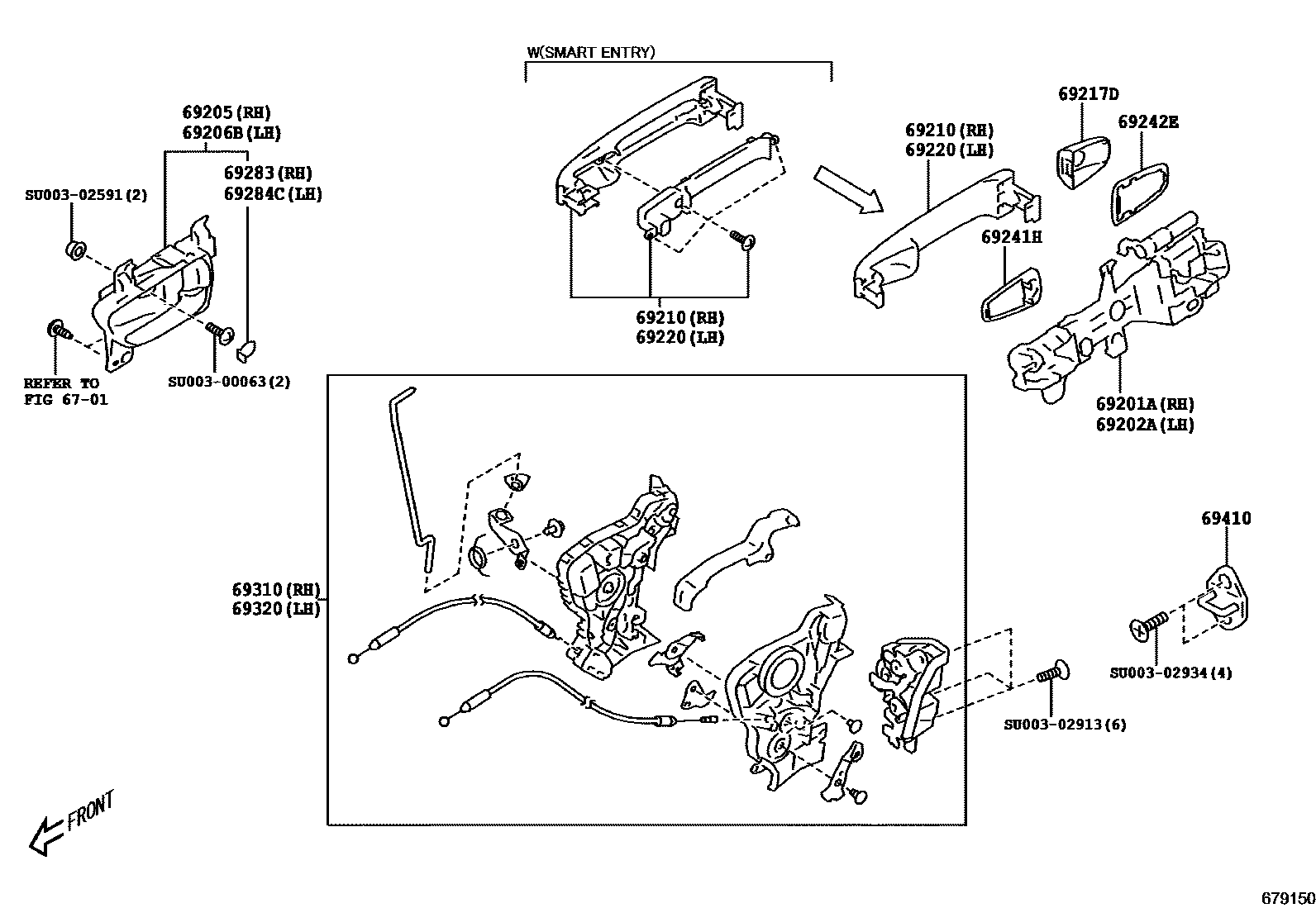

Parts diagram
6701FRONT DOOR PANEL & GLASS
→ Go to FIG 67-01
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
mainSU00301584i201710-201803
DESTINATION CODE=EN; DESTINATION CODE=K2; DESTINATION CODE=K8; DESTINATION CODE=KA; DESTINATION CODE=KC; DESTINATION CODE=KV; DESTINATION CODE=KY
mainSU00301586i201710-201803
DESTINATION CODE=EK; DESTINATION CODE=ER
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
mainSU00301585i201903-202104
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
mainSU00301562i201608-201709
BLACK; DESTINATION CODE=KA,BLACK
mainSU00304769i201608-201709
BLACK; DESTINATION CODE=EK,BLACK; DESTINATION CODE=EN,BLACK; DESTINATION CODE=ER,BLACK; DESTINATION CODE=K8,BLACK; DESTINATION CODE=KC,BLACK; DESTINATION CODE=KE,BLACK; DESTINATION CODE=KY,BLACK
mainSU00308369i202009-202104
BLACK; DESTINATION CODE=EK,BLACK; DESTINATION CODE=ER,BLACK; DESTINATION CODE=K8,BLACK; DESTINATION CODE=KC,BLACK; DESTINATION CODE=KY,BLACK
mainSU00308367i202009-202104
DESTINATION CODE=KA,BLACK
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
mainSU00301563i201608-201709
BLACK; DESTINATION CODE=KA,BLACK
mainSU00304770i201608-201709
BLACK; DESTINATION CODE=EK,BLACK; DESTINATION CODE=EN,BLACK; DESTINATION CODE=ER,BLACK; DESTINATION CODE=K8,BLACK; DESTINATION CODE=KC,BLACK; DESTINATION CODE=KE,BLACK; DESTINATION CODE=KY,BLACK
mainSU00308370i202009-202104
BLACK; DESTINATION CODE=EK,BLACK; DESTINATION CODE=ER,BLACK; DESTINATION CODE=K8,BLACK; DESTINATION CODE=KC,BLACK; DESTINATION CODE=KY,BLACK
mainSU00308368i202009-202104
DESTINATION CODE=KA,BLACK
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
mainSU00301588i201804-201904
DARK GRAY METALLIC,61K
mainSU00301589i201608-201709
ORANGE METALLIC,H8R
mainSU00301592i201903-202104
CRYSTAL BLACK SILICA,D4S
mainSU00301595i201608-201709
DARK GRAY METALLIC,61K
mainSU00301596i201608-201709
ORANGE METALLIC,H8R
mainSU00301599i201608-201709
CRYSTAL BLACK SILICA,D4S
mainSU00305304i201903-202104
ICE SILVER METALLIC,G1U
mainSU00305305i201903-202104
CRYSTAL WHITE PEARL,K1X
mainSU00305306i201710-201803
ICE SILVER METALLIC,G1U
mainSU00305307i201608-201709
CRYSTAL WHITE PEARL,K1X
mainSU00305919i201903-202104
LAPIS BLUE PEARL,K3X
mainSU00305920i201804-201904
PURE RED,M7Y
mainSU00305921i201710-201803
LAPIS BLUE PEARL,K3X
mainSU00305922i201710-201803
PURE RED,M7Y
mainSU00307387i201608-201709
SOLAR ORANGE
mainSU00307728i201710-201803
SOLID GRAY,PBA
mainSU00307729i201710-201803
SOLID GRAY,PBA
mainSU00307860i201804-201904
BRIGHT BLUE,DAR
mainSU00307861i201903-202104
BRIGHT BLUE,DAR
mainSU00308137i201903-202104
MAGNETITE GRAY M,P8Y
mainSU00308138i201903-202104
MAGNETITE GRAY M,P8Y
69217DCOVER, FRONT DOOR OUTSIDE HANDLE
mainSU00301569i201608-201709
DARK GRAY METALLIC,61K,DRIVER SIDE; DESTINATION CODE=EK,DARK GRAY METALLIC,61K,DRIVER SIDE; DESTINATION CODE=EN,DARK GRAY METALLIC,61K,DRIVER SIDE; DESTINATION CODE=ER,DARK GRAY METALLIC,61K,DRIVER SIDE; DESTINATION CODE=K8,DARK GRAY METALLIC,61K,DRIVER SIDE; DESTINATION CODE=KA,DARK GRAY METALLIC,61K,DRIVER SIDE; DESTINATION CODE=KC,DARK GRAY METALLIC,61K,DRIVER SIDE; DESTINATION CODE=KE,DARK GRAY METALLIC,61K,DRIVER SIDE; DESTINATION CODE=KY,DARK GRAY METALLIC,61K,DRIVER SIDE
mainSU00301570i201608-201709
DESTINATION CODE=EK,ORANGE METALLIC,H8R,DRIVER SIDE; DESTINATION CODE=EN,ORANGE METALLIC,H8R,DRIVER SIDE; DESTINATION CODE=ER,ORANGE METALLIC,H8R,DRIVER SIDE; DESTINATION CODE=K8,ORANGE METALLIC,H8R,DRIVER SIDE; DESTINATION CODE=KA,ORANGE METALLIC,H8R,DRIVER SIDE; DESTINATION CODE=KC,ORANGE METALLIC,H8R,DRIVER SIDE; DESTINATION CODE=KE,ORANGE METALLIC,H8R,DRIVER SIDE; DESTINATION CODE=KY,ORANGE METALLIC,H8R,DRIVER SIDE; ORANGE METALLIC,H8R,DRIVER SIDE
mainSU00301573i201608-201709
CRYSTAL BLACK SILICA,D4S,DRIVER SIDE; DESTINATION CODE=EK,CRYSTAL BLACK SILICA,D4S,DRIVER SIDE; DESTINATION CODE=EN,CRYSTAL BLACK SILICA,D4S,DRIVER SIDE; DESTINATION CODE=ER,CRYSTAL BLACK SILICA,D4S,DRIVER SIDE; DESTINATION CODE=K8,CRYSTAL BLACK SILICA,D4S,DRIVER SIDE; DESTINATION CODE=KA,CRYSTAL BLACK SILICA,D4S,DRIVER SIDE; DESTINATION CODE=KC,CRYSTAL BLACK SILICA,D4S,DRIVER SIDE; DESTINATION CODE=KE,CRYSTAL BLACK SILICA,D4S,DRIVER SIDE; DESTINATION CODE=KY,CRYSTAL BLACK SILICA,D4S,DRIVER SIDE
mainSU00301576i201608-201709
DARK GRAY METALLIC,61K,PASSENGER SIDE; DESTINATION CODE=EK,DARK GRAY METALLIC,61K,PASSENGER SIDE; DESTINATION CODE=EN,DARK GRAY METALLIC,61K,PASSENGER SIDE; DESTINATION CODE=ER,DARK GRAY METALLIC,61K,PASSENGER SIDE; DESTINATION CODE=K8,DARK GRAY METALLIC,61K,PASSENGER SIDE; DESTINATION CODE=KA,DARK GRAY METALLIC,61K,PASSENGER SIDE; DESTINATION CODE=KC,DARK GRAY METALLIC,61K,PASSENGER SIDE; DESTINATION CODE=KE,DARK GRAY METALLIC,61K,PASSENGER SIDE; DESTINATION CODE=KY,DARK GRAY METALLIC,61K,PASSENGER SIDE
mainSU00301577i201608-201709
DESTINATION CODE=EK,ORANGE METALLIC,H8R,PASSENGER SIDE; DESTINATION CODE=EN,ORANGE METALLIC,H8R,PASSENGER SIDE; DESTINATION CODE=ER,ORANGE METALLIC,H8R,PASSENGER SIDE; DESTINATION CODE=K8,ORANGE METALLIC,H8R,PASSENGER SIDE; DESTINATION CODE=KA,ORANGE METALLIC,H8R,PASSENGER SIDE; DESTINATION CODE=KC,ORANGE METALLIC,H8R,PASSENGER SIDE; DESTINATION CODE=KE,ORANGE METALLIC,H8R,PASSENGER SIDE; DESTINATION CODE=KY,ORANGE METALLIC,H8R,PASSENGER SIDE; ORANGE METALLIC,H8R,PASSENGER SIDE
mainSU00301580i201804-201904
CRYSTAL BLACK SILICA,D4S,PASSENGER SIDE; DESTINATION CODE=EK,CRYSTAL BLACK SILICA,D4S,PASSENGER SIDE; DESTINATION CODE=EN,CRYSTAL BLACK SILICA,D4S,PASSENGER SIDE; DESTINATION CODE=ER,CRYSTAL BLACK SILICA,D4S,PASSENGER SIDE; DESTINATION CODE=K2,CRYSTAL BLACK SILICA,D4S,PASSENGER SIDE; DESTINATION CODE=K8,CRYSTAL BLACK SILICA,D4S,PASSENGER SIDE; DESTINATION CODE=KA,CRYSTAL BLACK SILICA,D4S,PASSENGER SIDE; DESTINATION CODE=KC,CRYSTAL BLACK SILICA,D4S,PASSENGER SIDE; DESTINATION CODE=KV,CRYSTAL BLACK SILICA,D4S,PASSENGER SIDE; DESTINATION CODE=KY,CRYSTAL BLACK SILICA,D4S,PASSENGER SIDE
mainSU00305300i201608-201709
DESTINATION CODE=EK,ICE SILVER METALLIC,G1U,DRIVER SIDE; DESTINATION CODE=EN,ICE SILVER METALLIC,G1U,DRIVER SIDE; DESTINATION CODE=ER,ICE SILVER METALLIC,G1U,DRIVER SIDE; DESTINATION CODE=K8,ICE SILVER METALLIC,G1U,DRIVER SIDE; DESTINATION CODE=KA,ICE SILVER METALLIC,G1U,DRIVER SIDE; DESTINATION CODE=KC,ICE SILVER METALLIC,G1U,DRIVER SIDE; DESTINATION CODE=KE,ICE SILVER METALLIC,G1U,DRIVER SIDE; DESTINATION CODE=KY,ICE SILVER METALLIC,G1U,DRIVER SIDE; ICE SILVER METALLIC,G1U,DRIVER SIDE
mainSU00305301i201710-201803
CRYSTAL WHITE PEARL,K1X,DRIVER SIDE; DESTINATION CODE=EK,CRYSTAL WHITE PEARL,K1X,DRIVER SIDE; DESTINATION CODE=EN,CRYSTAL WHITE PEARL,K1X,DRIVER SIDE; DESTINATION CODE=ER,CRYSTAL WHITE PEARL,K1X,DRIVER SIDE; DESTINATION CODE=K2,CRYSTAL WHITE PEARL,K1X,DRIVER SIDE; DESTINATION CODE=K8,CRYSTAL WHITE PEARL,K1X,DRIVER SIDE; DESTINATION CODE=KA,CRYSTAL WHITE PEARL,K1X,DRIVER SIDE; DESTINATION CODE=KC,CRYSTAL WHITE PEARL,K1X,DRIVER SIDE; DESTINATION CODE=KV,CRYSTAL WHITE PEARL,K1X,DRIVER SIDE; DESTINATION CODE=KY,CRYSTAL WHITE PEARL,K1X,DRIVER SIDE
mainSU00305302i201608-201709
DESTINATION CODE=EK,ICE SILVER METALLIC,G1U,PASSENGER SIDE; DESTINATION CODE=EN,ICE SILVER METALLIC,G1U,PASSENGER SIDE; DESTINATION CODE=ER,ICE SILVER METALLIC,G1U,PASSENGER SIDE; DESTINATION CODE=K8,ICE SILVER METALLIC,G1U,PASSENGER SIDE; DESTINATION CODE=KA,ICE SILVER METALLIC,G1U,PASSENGER SIDE; DESTINATION CODE=KC,ICE SILVER METALLIC,G1U,PASSENGER SIDE; DESTINATION CODE=KE,ICE SILVER METALLIC,G1U,PASSENGER SIDE; DESTINATION CODE=KY,ICE SILVER METALLIC,G1U,PASSENGER SIDE; ICE SILVER METALLIC,G1U,PASSENGER SIDE
mainSU00305303i201903-202104
CRYSTAL WHITE PEARL,K1X,PASSENGER SIDE; DESTINATION CODE=EK,CRYSTAL WHITE PEARL,K1X,PASSENGER SIDE; DESTINATION CODE=ER,CRYSTAL WHITE PEARL,K1X,PASSENGER SIDE; DESTINATION CODE=K2,CRYSTAL WHITE PEARL,K1X,PASSENGER SIDE; DESTINATION CODE=K8,CRYSTAL WHITE PEARL,K1X,PASSENGER SIDE; DESTINATION CODE=KA,CRYSTAL WHITE PEARL,K1X,PASSENGER SIDE; DESTINATION CODE=KC,CRYSTAL WHITE PEARL,K1X,PASSENGER SIDE; DESTINATION CODE=KV,CRYSTAL WHITE PEARL,K1X,PASSENGER SIDE; DESTINATION CODE=KY,CRYSTAL WHITE PEARL,K1X,PASSENGER SIDE
mainSU00305915i201903-202104
DESTINATION CODE=EK,LAPIS BLUE PEARL,K3X,DRIVER SIDE; DESTINATION CODE=ER,LAPIS BLUE PEARL,K3X,DRIVER SIDE; DESTINATION CODE=K2,LAPIS BLUE PEARL,K3X,DRIVER SIDE; DESTINATION CODE=K8,LAPIS BLUE PEARL,K3X,DRIVER SIDE; DESTINATION CODE=KA,LAPIS BLUE PEARL,K3X,DRIVER SIDE; DESTINATION CODE=KC,LAPIS BLUE PEARL,K3X,DRIVER SIDE; DESTINATION CODE=KV,LAPIS BLUE PEARL,K3X,DRIVER SIDE; DESTINATION CODE=KY,LAPIS BLUE PEARL,K3X,DRIVER SIDE; LAPIS BLUE PEARL,K3X,DRIVER SIDE
mainSU00305916i201903-202104
DESTINATION CODE=EK,PURE RED,M7Y,DRIVER SIDE; DESTINATION CODE=ER,PURE RED,M7Y,DRIVER SIDE; DESTINATION CODE=K2,PURE RED,M7Y,DRIVER SIDE; DESTINATION CODE=K8,PURE RED,M7Y,DRIVER SIDE; DESTINATION CODE=KA,PURE RED,M7Y,DRIVER SIDE; DESTINATION CODE=KC,PURE RED,M7Y,DRIVER SIDE; DESTINATION CODE=KV,PURE RED,M7Y,DRIVER SIDE; DESTINATION CODE=KY,PURE RED,M7Y,DRIVER SIDE; PURE RED,M7Y,DRIVER SIDE
mainSU00305917i201608-201709
DESTINATION CODE=EK,LAPIS BLUE PEARL,K3X,PASSENGER SIDE; DESTINATION CODE=EN,LAPIS BLUE PEARL,K3X,PASSENGER SIDE; DESTINATION CODE=ER,LAPIS BLUE PEARL,K3X,PASSENGER SIDE; DESTINATION CODE=K8,LAPIS BLUE PEARL,K3X,PASSENGER SIDE; DESTINATION CODE=KA,LAPIS BLUE PEARL,K3X,PASSENGER SIDE; DESTINATION CODE=KC,LAPIS BLUE PEARL,K3X,PASSENGER SIDE; DESTINATION CODE=KE,LAPIS BLUE PEARL,K3X,PASSENGER SIDE; DESTINATION CODE=KY,LAPIS BLUE PEARL,K3X,PASSENGER SIDE; LAPIS BLUE PEARL,K3X,PASSENGER SIDE
mainSU00305918i201710-201803
DESTINATION CODE=EK,PURE RED,M7Y,PASSENGER SIDE; DESTINATION CODE=EN,PURE RED,M7Y,PASSENGER SIDE; DESTINATION CODE=ER,PURE RED,M7Y,PASSENGER SIDE; DESTINATION CODE=K2,PURE RED,M7Y,PASSENGER SIDE; DESTINATION CODE=K8,PURE RED,M7Y,PASSENGER SIDE; DESTINATION CODE=KA,PURE RED,M7Y,PASSENGER SIDE; DESTINATION CODE=KC,PURE RED,M7Y,PASSENGER SIDE; DESTINATION CODE=KV,PURE RED,M7Y,PASSENGER SIDE; DESTINATION CODE=KY,PURE RED,M7Y,PASSENGER SIDE; PURE RED,M7Y,PASSENGER SIDE
mainSU00307385i201608-201709
DESTINATION CODE=EK,SOLAR ORANGE,DRIVER SIDE; DESTINATION CODE=KA,SOLAR ORANGE,DRIVER SIDE; DESTINATION CODE=KE,SOLAR ORANGE,DRIVER SIDE; SOLAR ORANGE,DRIVER SIDE
mainSU00307386i201608-201709
DESTINATION CODE=EK,SOLAR ORANGE,PASSENGER SIDE; DESTINATION CODE=KA,SOLAR ORANGE,PASSENGER SIDE; DESTINATION CODE=KE,SOLAR ORANGE,PASSENGER SIDE; SOLAR ORANGE,PASSENGER SIDE
mainSU00307726i201710-201803
DESTINATION CODE=EK,SOLID GRAY,PBA,DRIVER SIDE; DESTINATION CODE=EN,SOLID GRAY,PBA,DRIVER SIDE; DESTINATION CODE=ER,SOLID GRAY,PBA,DRIVER SIDE; DESTINATION CODE=K2,SOLID GRAY,PBA,DRIVER SIDE; DESTINATION CODE=K8,SOLID GRAY,PBA,DRIVER SIDE; DESTINATION CODE=KA,SOLID GRAY,PBA,DRIVER SIDE; DESTINATION CODE=KC,SOLID GRAY,PBA,DRIVER SIDE; DESTINATION CODE=KV,SOLID GRAY,PBA,DRIVER SIDE; DESTINATION CODE=KY,SOLID GRAY,PBA,DRIVER SIDE; SOLID GRAY,PBA,DRIVER SIDE
mainSU00307727i201710-201803
DESTINATION CODE=EK,SOLID GRAY,PBA,PASSENGER SIDE; DESTINATION CODE=EN,SOLID GRAY,PBA,PASSENGER SIDE; DESTINATION CODE=ER,SOLID GRAY,PBA,PASSENGER SIDE; DESTINATION CODE=K2,SOLID GRAY,PBA,PASSENGER SIDE; DESTINATION CODE=K8,SOLID GRAY,PBA,PASSENGER SIDE; DESTINATION CODE=KA,SOLID GRAY,PBA,PASSENGER SIDE; DESTINATION CODE=KC,SOLID GRAY,PBA,PASSENGER SIDE; DESTINATION CODE=KV,SOLID GRAY,PBA,PASSENGER SIDE; DESTINATION CODE=KY,SOLID GRAY,PBA,PASSENGER SIDE; SOLID GRAY,PBA,PASSENGER SIDE
mainSU00307858i201804-201904
BRIGHT BLUE,DAR,DRIVER SIDE; DESTINATION CODE=EK,BRIGHT BLUE,DAR,DRIVER SIDE; DESTINATION CODE=EN,BRIGHT BLUE,DAR,DRIVER SIDE; DESTINATION CODE=ER,BRIGHT BLUE,DAR,DRIVER SIDE; DESTINATION CODE=K2,BRIGHT BLUE,DAR,DRIVER SIDE; DESTINATION CODE=K8,BRIGHT BLUE,DAR,DRIVER SIDE; DESTINATION CODE=KA,BRIGHT BLUE,DAR,DRIVER SIDE; DESTINATION CODE=KC,BRIGHT BLUE,DAR,DRIVER SIDE; DESTINATION CODE=KV,BRIGHT BLUE,DAR,DRIVER SIDE; DESTINATION CODE=KY,BRIGHT BLUE,DAR,DRIVER SIDE
mainSU00307859i201804-201904
BRIGHT BLUE,DAR,PASSENGER SIDE; DESTINATION CODE=EK,BRIGHT BLUE,DAR,PASSENGER SIDE; DESTINATION CODE=EN,BRIGHT BLUE,DAR,PASSENGER SIDE; DESTINATION CODE=ER,BRIGHT BLUE,DAR,PASSENGER SIDE; DESTINATION CODE=K2,BRIGHT BLUE,DAR,PASSENGER SIDE; DESTINATION CODE=K8,BRIGHT BLUE,DAR,PASSENGER SIDE; DESTINATION CODE=KA,BRIGHT BLUE,DAR,PASSENGER SIDE; DESTINATION CODE=KC,BRIGHT BLUE,DAR,PASSENGER SIDE; DESTINATION CODE=KV,BRIGHT BLUE,DAR,PASSENGER SIDE; DESTINATION CODE=KY,BRIGHT BLUE,DAR,PASSENGER SIDE
mainSU00308133i201903-202104
DESTINATION CODE=EK,MAGNETITE GRAY M,P8Y,DRIVER SIDE; DESTINATION CODE=ER,MAGNETITE GRAY M,P8Y,DRIVER SIDE; DESTINATION CODE=K2,MAGNETITE GRAY M,P8Y,DRIVER SIDE; DESTINATION CODE=K8,MAGNETITE GRAY M,P8Y,DRIVER SIDE; DESTINATION CODE=KA,MAGNETITE GRAY M,P8Y,DRIVER SIDE; DESTINATION CODE=KC,MAGNETITE GRAY M,P8Y,DRIVER SIDE; DESTINATION CODE=KV,MAGNETITE GRAY M,P8Y,DRIVER SIDE; DESTINATION CODE=KY,MAGNETITE GRAY M,P8Y,DRIVER SIDE; MAGNETITE GRAY M,P8Y,DRIVER SIDE
mainSU00308135i201903-202104
DESTINATION CODE=EK,MAGNETITE GRAY M,P8Y,PASSENGER SIDE; DESTINATION CODE=ER,MAGNETITE GRAY M,P8Y,PASSENGER SIDE; DESTINATION CODE=K2,MAGNETITE GRAY M,P8Y,PASSENGER SIDE; DESTINATION CODE=K8,MAGNETITE GRAY M,P8Y,PASSENGER SIDE; DESTINATION CODE=KA,MAGNETITE GRAY M,P8Y,PASSENGER SIDE; DESTINATION CODE=KC,MAGNETITE GRAY M,P8Y,PASSENGER SIDE; DESTINATION CODE=KV,MAGNETITE GRAY M,P8Y,PASSENGER SIDE; DESTINATION CODE=KY,MAGNETITE GRAY M,P8Y,PASSENGER SIDE; MAGNETITE GRAY M,P8Y,PASSENGER SIDE
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
mainSU00301588i201710-201803
DARK GRAY METALLIC,61K
mainSU00301589i201608-201709
ORANGE METALLIC,H8R
mainSU00301592i201608-201709
CRYSTAL BLACK SILICA,D4S
mainSU00301595i201608-201709
DARK GRAY METALLIC,61K
mainSU00301596i201608-201709
ORANGE METALLIC,H8R
mainSU00301599i201608-201709
CRYSTAL BLACK SILICA,D4S
mainSU00305304i201710-201803
ICE SILVER METALLIC,G1U
mainSU00305305i201804-201904
CRYSTAL WHITE PEARL,K1X
mainSU00305306i201903-202104
ICE SILVER METALLIC,G1U
mainSU00305307i201608-201709
CRYSTAL WHITE PEARL,K1X
mainSU00305919i201804-201904
LAPIS BLUE PEARL,K3X
mainSU00305920i201710-201803
PURE RED,M7Y
mainSU00305921i201710-201803
LAPIS BLUE PEARL,K3X
mainSU00305922i201608-201709
PURE RED,M7Y
mainSU00307387i201608-201709
SOLAR ORANGE
mainSU00307728i201710-201803
SOLID GRAY,PBA
mainSU00307729i201710-201803
SOLID GRAY,PBA
mainSU00307860i201903-202104
BRIGHT BLUE,DAR
mainSU00307861i201804-201904
BRIGHT BLUE,DAR
mainSU00308137i201903-202104
MAGNETITE GRAY M,P8Y
mainSU00308138i201903-202104
MAGNETITE GRAY M,P8Y
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
mainSU00301614×2i201804-201904
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
mainSU00301615×2i201710-201803
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
mainSU00301566i201608-201709
BLACK
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
mainSU00301566i201903-202104
BLACK
69310LOCK ASSY, FRONT DOOR, RH
mainSU00304108i201903-202104
mainSU00304110i201804-201904
mainSU00304104i201710-201803
DESTINATION CODE=EN; DESTINATION CODE=K8; DESTINATION CODE=KA; DESTINATION CODE=KC; DESTINATION CODE=KY
mainSU00304106i201710-201803
DESTINATION CODE=EN; DESTINATION CODE=K2; DESTINATION CODE=K8; DESTINATION CODE=KA; DESTINATION CODE=KC; DESTINATION CODE=KV; DESTINATION CODE=KY
mainSU00304116i201710-201803
DESTINATION CODE=EK; DESTINATION CODE=ER
69320LOCK ASSY, FRONT DOOR, LH
mainSU00304109i201608-201709
mainSU00304111i201608-201709
mainSU00304105i201608-201709
DESTINATION CODE=EN; DESTINATION CODE=K8; DESTINATION CODE=KA; DESTINATION CODE=KC; DESTINATION CODE=KE; DESTINATION CODE=KY
mainSU00304107i201903-202104
DESTINATION CODE=K2; DESTINATION CODE=K8; DESTINATION CODE=KA; DESTINATION CODE=KC; DESTINATION CODE=KV; DESTINATION CODE=KY
mainSU00304117i201804-201904
DESTINATION CODE=EK; DESTINATION CODE=ER
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
mainSU00304119×2i201608-201709
SU00300063
mainSU003-00063
SU00302591
mainSU003-02591
SU00302913
mainSU003-02913
SU00302934
mainSU003-02934

19 parts on this diagram · 1 diagram in section

FRONT DOOR LOCK & HANDLE for Toyota 86

This section contains 19 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota 86. Key components include: FRONT DOOR PANEL & GLASS, FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH, FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH, HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH, HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH.
