Toyota 86 GRMN — WINDSHIELD WIPER
85010MOTOR & LINK ASSY, FR WIPER
85159CUSHION, WINDSHIELD WIPER MOTOR
85178NUT (FOR FRONT WIPER ARM SETTING)
85192COVER, WINDSHIELD WIPER ARM
85211BARM, FRONT WIPER, RH
85212ABLADE, FR WIPER, RH
85213ARUBBER, WIPER BLADE, RH
85214ARUBBER, WIPER, RH
85214BRUBBER, WIPER, LH
85221BARM, FRONT WIPER, LH
85222ABLADE, FR WIPER, LH
85223ARUBBER, FRONT WIPER BLADE, LH
SU00302665
mainSU003-02665
SU00302674
mainSU003-02674
SU00302860
mainSU003-02860
SU00305627
mainSU003-05627
SU00305628
mainSU003-05628
SU00305816
mainSU003-05816

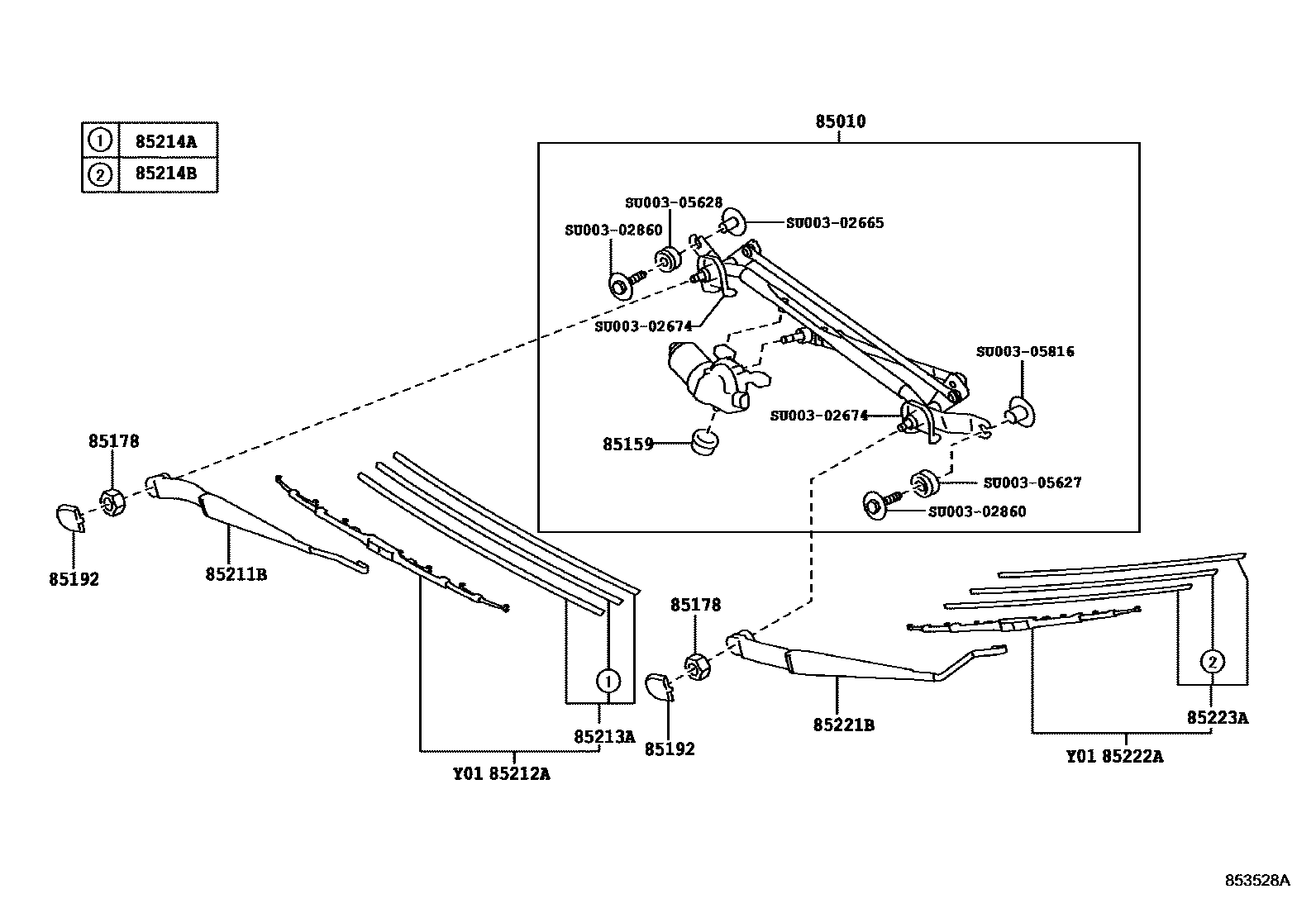

18 parts on this diagram · 1 diagram in section
WINDSHIELD WIPER for Toyota 86 GRMN
This section contains 18 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota 86 GRMN. Key components include: MOTOR & LINK ASSY, FR WIPER, CUSHION, WINDSHIELD WIPER MOTOR, NUT (FOR FRONT WIPER ARM SETTING), COVER, WINDSHIELD WIPER ARM, ARM, FRONT WIPER, RH.
