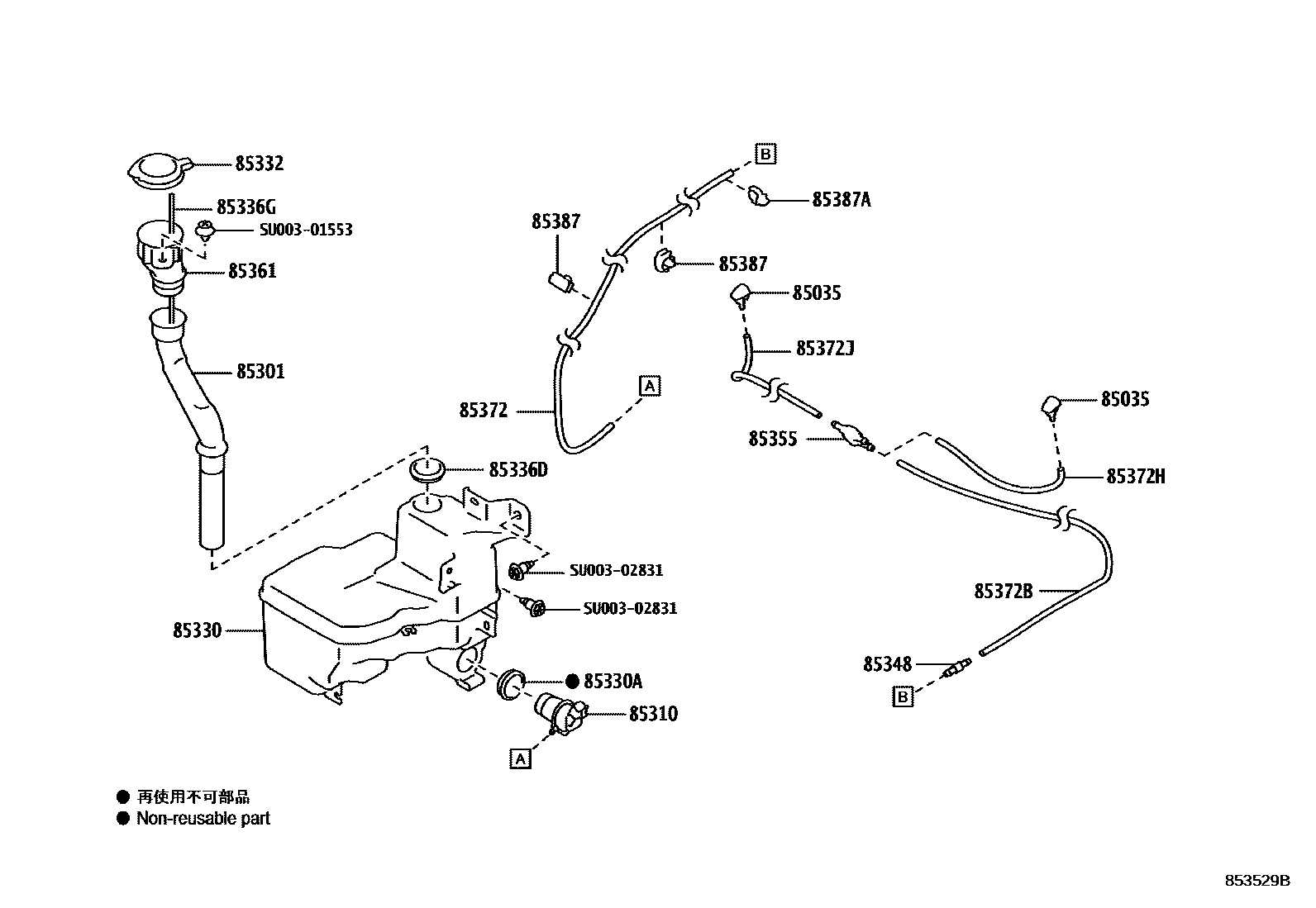

Toyota 86 GRMN — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

mainSU00302700×2i201602

85301INLET SUB-ASSY, WASHER

mainSU00302694i201602

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

mainSU00302687i201602

85330JAR ASSY, WINDSHIELD WASHER

mainSU00302697i201602

85330ABUSH, WINDSHIELD WASHER JAR

mainSU00302695i201602

85332CAP, WINDSHIELD WASHER JAR

mainSU00302690i201602

85336DPACKING, WINDSHIELD WASHER JAR

mainSU00302696i201602

85336GGAGE, WATER LEVEL

mainSU00302692i201602

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

mainSU00302717i201602

85355VALVE, WINDSHIELD WASHER HOSE

mainSU00302699i201602

85361HOLDER, WINDSHIELD WASHER

mainSU00302727i201602

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

mainSU00302725i201602

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

mainSU00302721i201602

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

mainSU00302720i201602

85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4

mainSU00302719i201602

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

mainSU00303006×2i201602

85387ACLAMP, WASHER, NO.2

mainSU00302691i201602

SU00301553

mainSU003-01553

SU00302831

mainSU003-02831

19 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota 86 GRMN

This section contains 19 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota 86 GRMN. Key components include: NOZZLE SUB-ASSY, WASHER, INLET SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR.
