Toyota 86 GRMN — STARTER

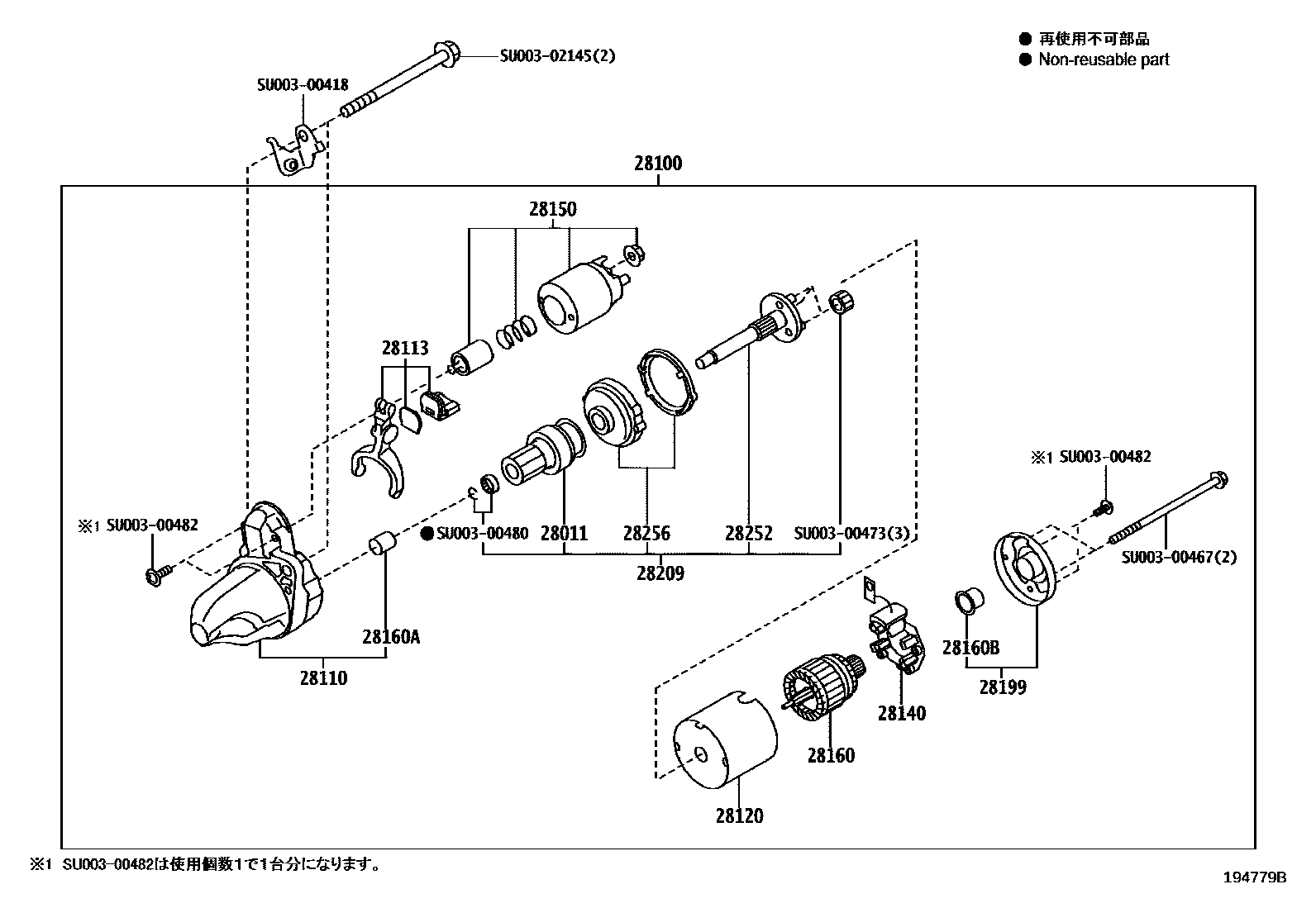

Parts diagram

28011CLUTCH SUB-ASSY, STARTER

mainSU00300456i201602

28100STARTER ASSY

mainSU00300451i201602

28110HOUSING ASSY, STARTER DRIVE

mainSU00300457i201602

28113LEVER, STARTER PINION DRIVE

mainSU00300460i201602

28120YOKE ASSY, STARTER

mainSU00300452i201602

28140HOLDER ASSY, STARTER BRUSH

mainSU00300478i201602

28150SWITCH ASSY, MAGNET STARTER

mainSU00300471i201602

28160ARMATURE ASSY, STARTER

mainSU00300454i201602

28160ABEARING, STARTER ARMATURE

mainSU00300458i201602

28160BBEARING, STARTER ARMATURE, NO.2

mainSU00300459i201602

28199COVER, STARTER

mainSU00300465i201602

28209SHAFT SUB-ASSY, STARTER

mainSU00300461i201602

28252GEAR, STARTER IDLE

mainSU00300462i201602

28256GEAR, STARTER INTERNAL

mainSU00300464i201602

SU00300418

mainSU003-00418

SU00300467

mainSU003-00467

SU00300473

mainSU003-00473

SU00300480

mainSU003-00480

SU00300482

mainSU003-00482

SU00302145

mainSU003-02145

20 parts on this diagram · 1 diagram in section

STARTER for Toyota 86 GRMN

This section contains 20 genuine Toyota parts for the STARTER system of the Toyota 86 GRMN. Key components include: CLUTCH SUB-ASSY, STARTER, STARTER ASSY, HOUSING ASSY, STARTER DRIVE, LEVER, STARTER PINION DRIVE, YOKE ASSY, STARTER.
