Toyota 86 GRMN — SPEAKER

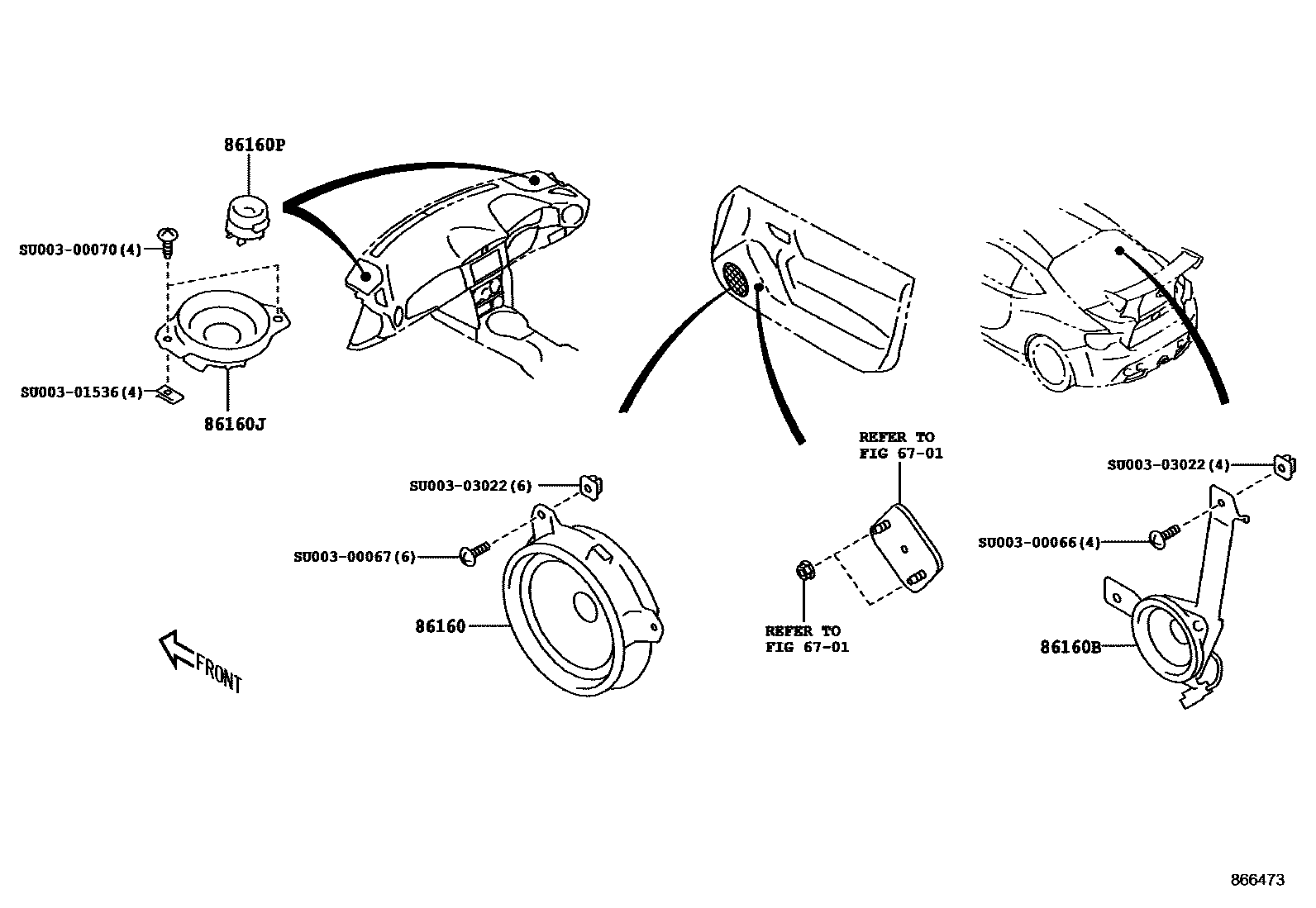

Parts diagram

6701FRONT DOOR PANEL & GLASS

→ Go to FIG 67-01

86160SPEAKER ASSY, FRONT NO.1

mainSU00302646×2i201602

86160BSPEAKER ASSY, REAR

mainSU00305966i201602

mainSU00305967i201602

86160JSPEAKER ASSY, FRONT NO.3

mainSU00302650i201602

mainSU00302651i201602

86160PSPEAKER ASSY, FRONT NO.2

mainSU00302649×2i201602

SU00300066

mainSU003-00066

SU00300067

mainSU003-00067

SU00300070

mainSU003-00070

SU00301536

mainSU003-01536

SU00303022

mainSU003-03022

10 parts on this diagram · 1 diagram in section

SPEAKER for Toyota 86 GRMN

This section contains 10 genuine Toyota parts for the SPEAKER system of the Toyota 86 GRMN. Key components include: FRONT DOOR PANEL & GLASS, SPEAKER ASSY, FRONT NO.1, SPEAKER ASSY, REAR, SPEAKER ASSY, FRONT NO.3, SPEAKER ASSY, FRONT NO.2.
