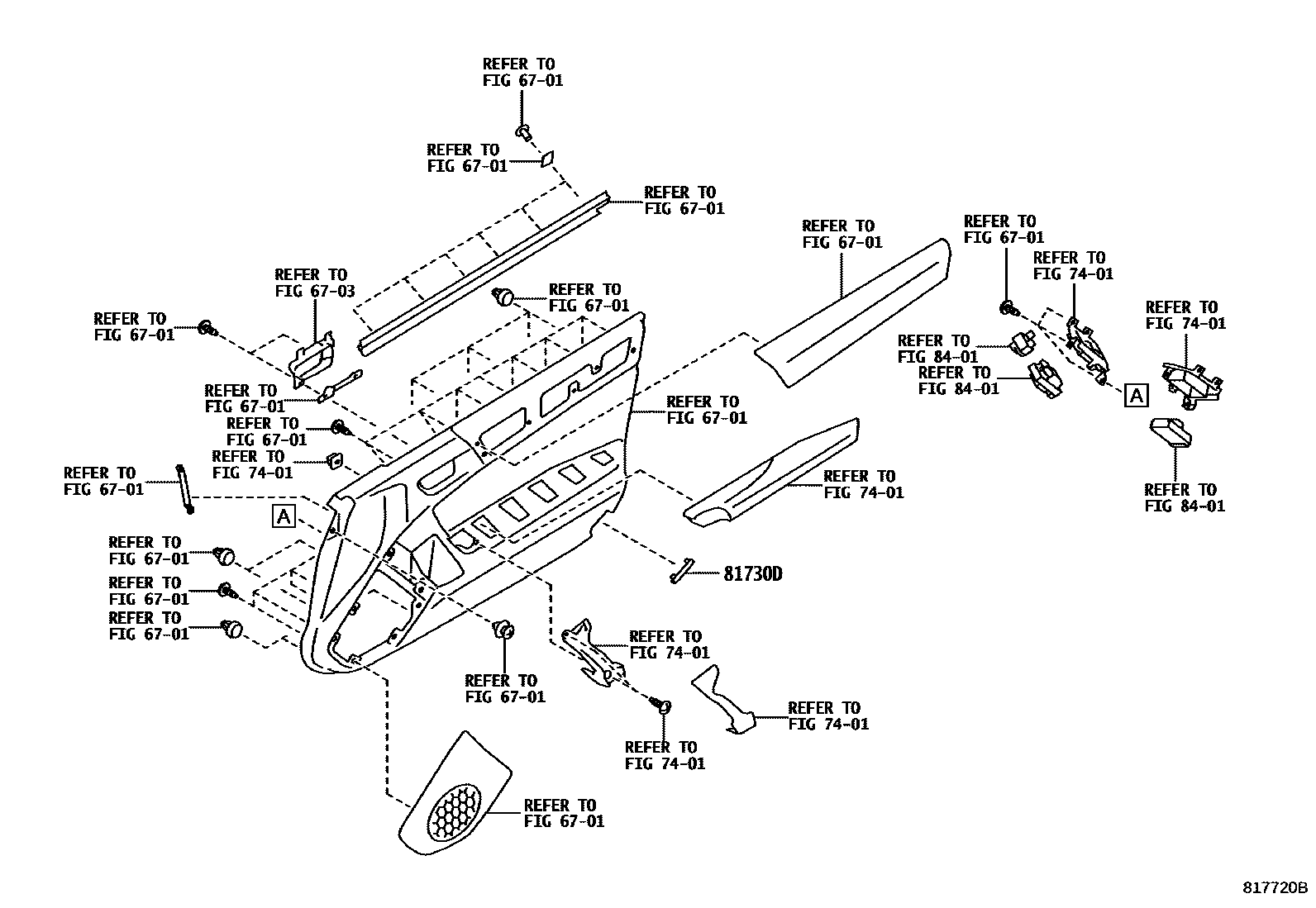

Toyota 86 GRMN — REFLEX REFLECTOR

6701FRONT DOOR PANEL & GLASS

→ Go to FIG 67-01

6703FRONT DOOR LOCK & HANDLE

→ Go to FIG 67-03

7401ARMREST & VISOR

→ Go to FIG 74-01

81730DREFLECTOR, REFLEX, FRONT SIDE

mainSU00303316×2i201602

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

5 parts on this diagram · 1 diagram in section

REFLEX REFLECTOR for Toyota 86 GRMN

This section contains 5 genuine Toyota parts for the REFLEX REFLECTOR system of the Toyota 86 GRMN. Key components include: FRONT DOOR PANEL & GLASS, FRONT DOOR LOCK & HANDLE, ARMREST & VISOR, REFLECTOR, REFLEX, FRONT SIDE, SWITCH & RELAY & COMPUTER.
