Toyota 86 GRMN — IGNITION COIL & SPARK PLUG / GLOW PLUG

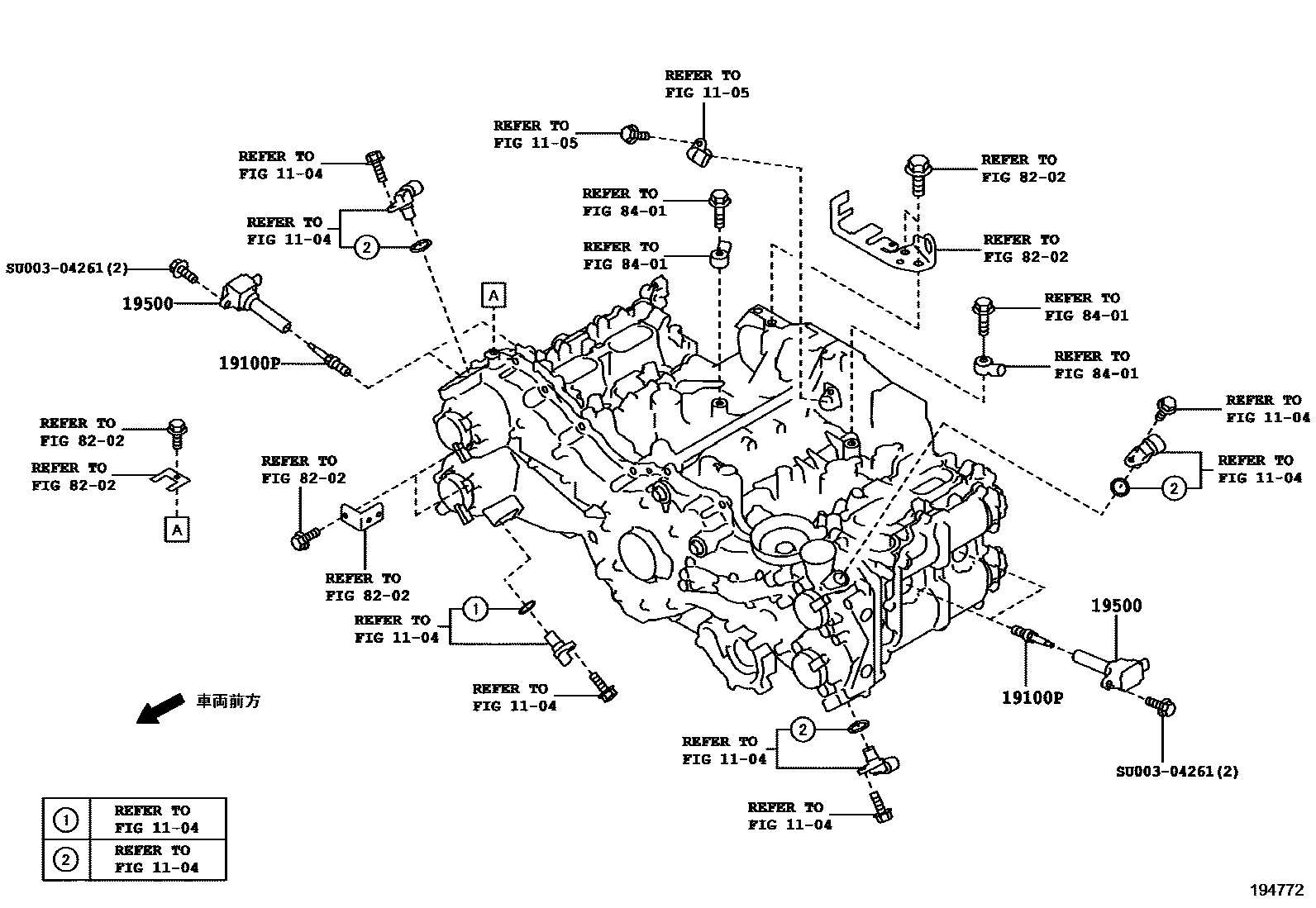

Parts diagram

1104CYLINDER HEAD

→ Go to FIG 11-04

1105CYLINDER BLOCK

→ Go to FIG 11-05

19100PPLUG, SPARK

mainSU00304931×4i201602

19500COIL ASSY, IGNITION

mainSU00305259×4i201602

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

SU00304261

mainSU003-04261

7 parts on this diagram · 1 diagram in section

IGNITION COIL & SPARK PLUG / GLOW PLUG for Toyota 86 GRMN

This section contains 7 genuine Toyota parts for the IGNITION COIL & SPARK PLUG / GLOW PLUG system of the Toyota 86 GRMN. Key components include: CYLINDER HEAD, CYLINDER BLOCK, PLUG, SPARK, COIL ASSY, IGNITION, WIRING & CLAMP.
