Toyota 86 GRMN — FRONT SPRING & SHOCK ABSORBER

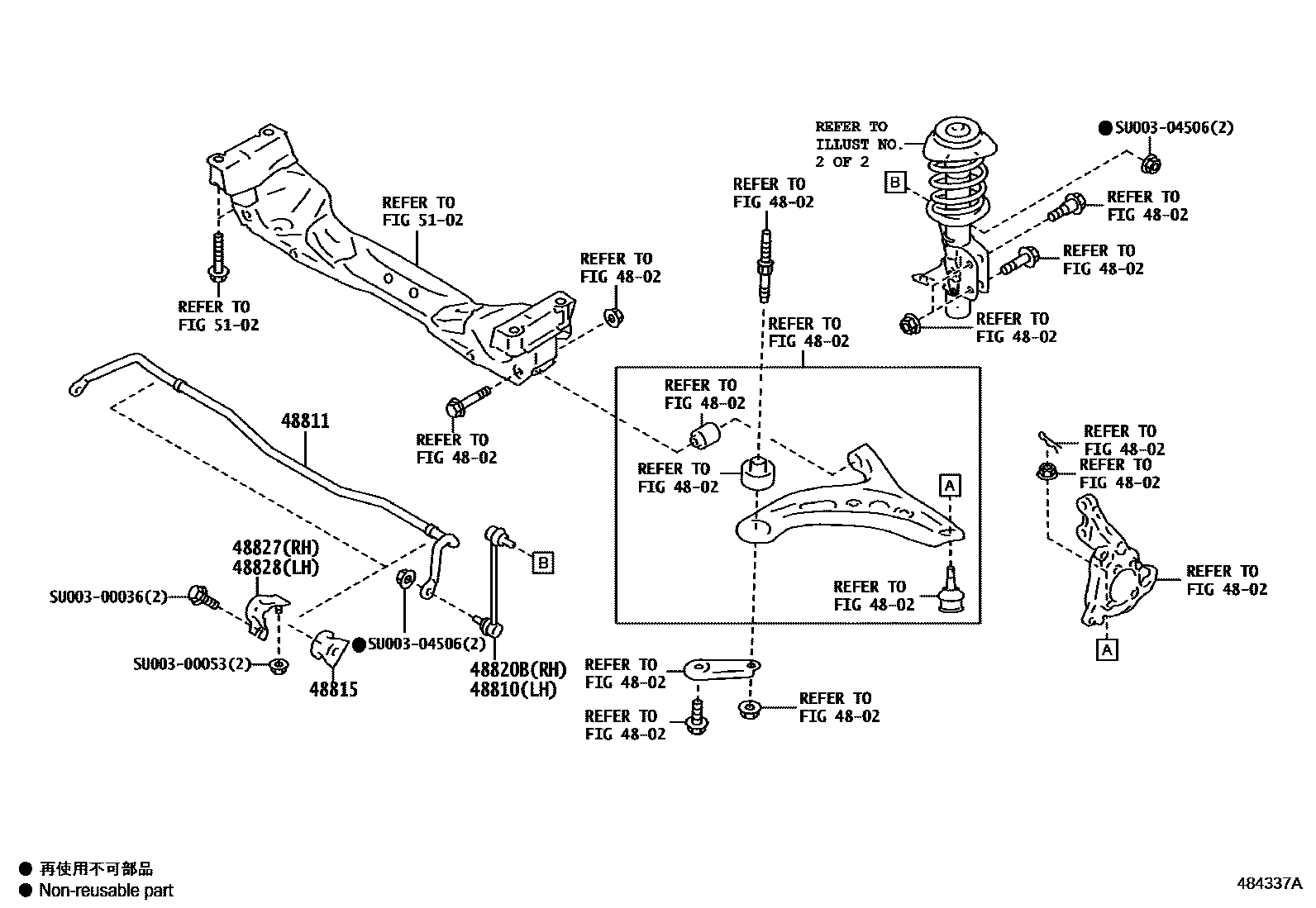

Parts diagram

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

48810LINK ASSY, FRONT STABILIZER, LH

mainSU00300394i201602

48811BAR, STABILIZER, FRONT

mainSU00300391i201602

48815BUSH, FRONT STABILIZER BAR, NO.1

mainSU00300392×2i201602

48820BLINK ASSY, FRONT STABILIZER, RH

mainSU00300394i201602

48827BRACKET, FRONT STABILIZER, NO.2 RH

mainSU00300393i201602

48828BRACKET, FRONT STABILIZER, NO.2 LH

mainSU00300393i201602

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

SU00300036

mainSU003-00036

SU00300053

mainSU003-00053

SU00304506

mainSU003-04506

11 parts on this diagram · 2 diagrams in section

FRONT SPRING & SHOCK ABSORBER for Toyota 86 GRMN

This section contains 27 genuine Toyota parts for the FRONT SPRING & SHOCK ABSORBER system of the Toyota 86 GRMN. Key components include: FRONT AXLE ARM & STEERING KNUCKLE, SPRING, FRONT COIL, RH, SPRING, FRONT COIL, LH, SEAT, FRONT SPRING, INSULATOR, FRONT COIL SPRING, UPPER RH.
