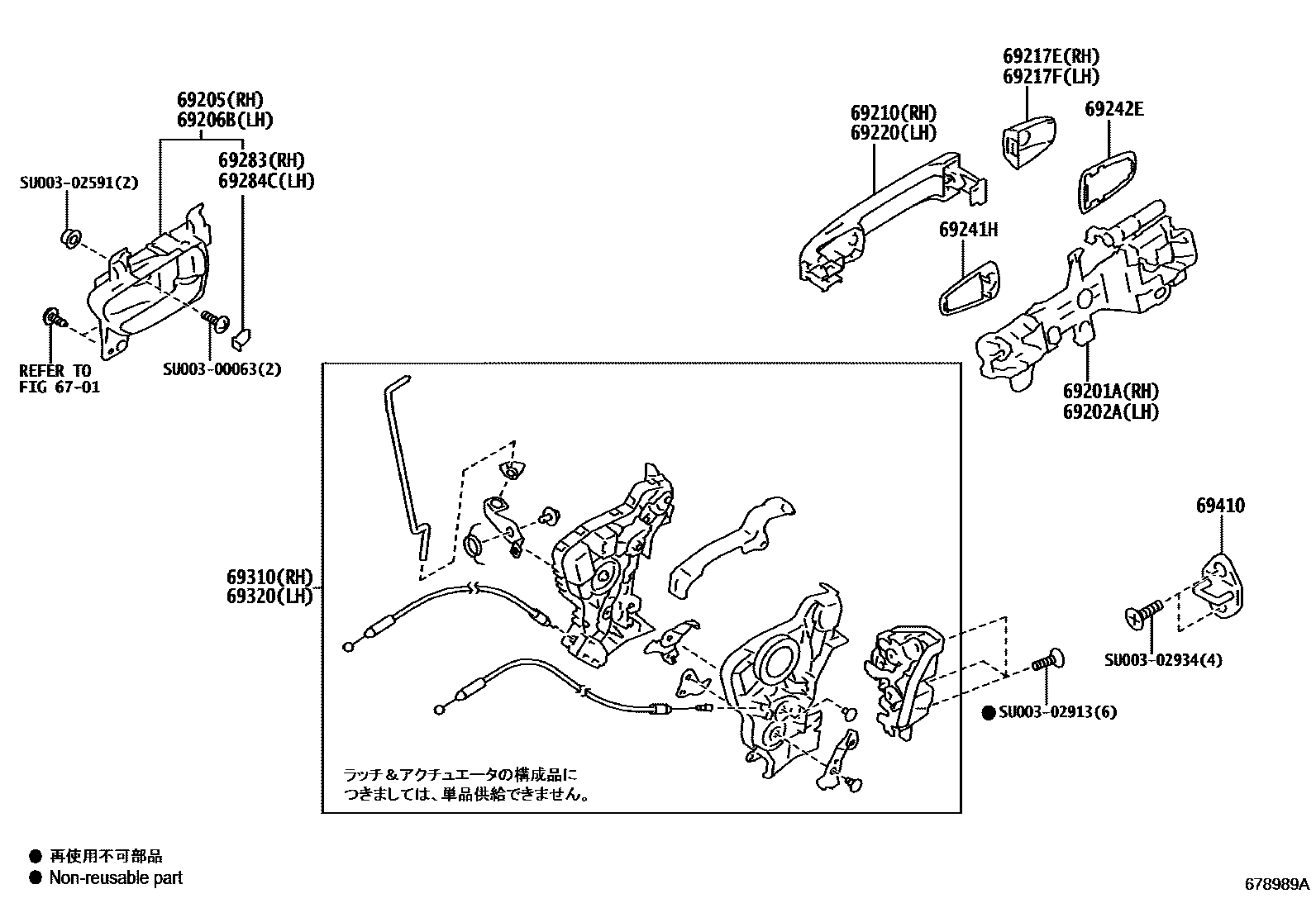

Toyota 86 GRMN — FRONT DOOR LOCK & HANDLE
6701FRONT DOOR PANEL & GLASS
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
WHITE PEARL CS.
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
WHITE PEARL CS.
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
WHITE PEARL CS.
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
WHITE PEARL CS.
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
69310LOCK ASSY, FRONT DOOR, RH
69320LOCK ASSY, FRONT DOOR, LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
SU00300063
mainSU003-00063
SU00302591
mainSU003-02591
SU00302913
mainSU003-02913
SU00302934
mainSU003-02934
20 parts on this diagram · 1 diagram in section
FRONT DOOR LOCK & HANDLE for Toyota 86 GRMN
This section contains 20 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota 86 GRMN. Key components include: FRONT DOOR PANEL & GLASS, FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH, FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH, HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH, HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH.
