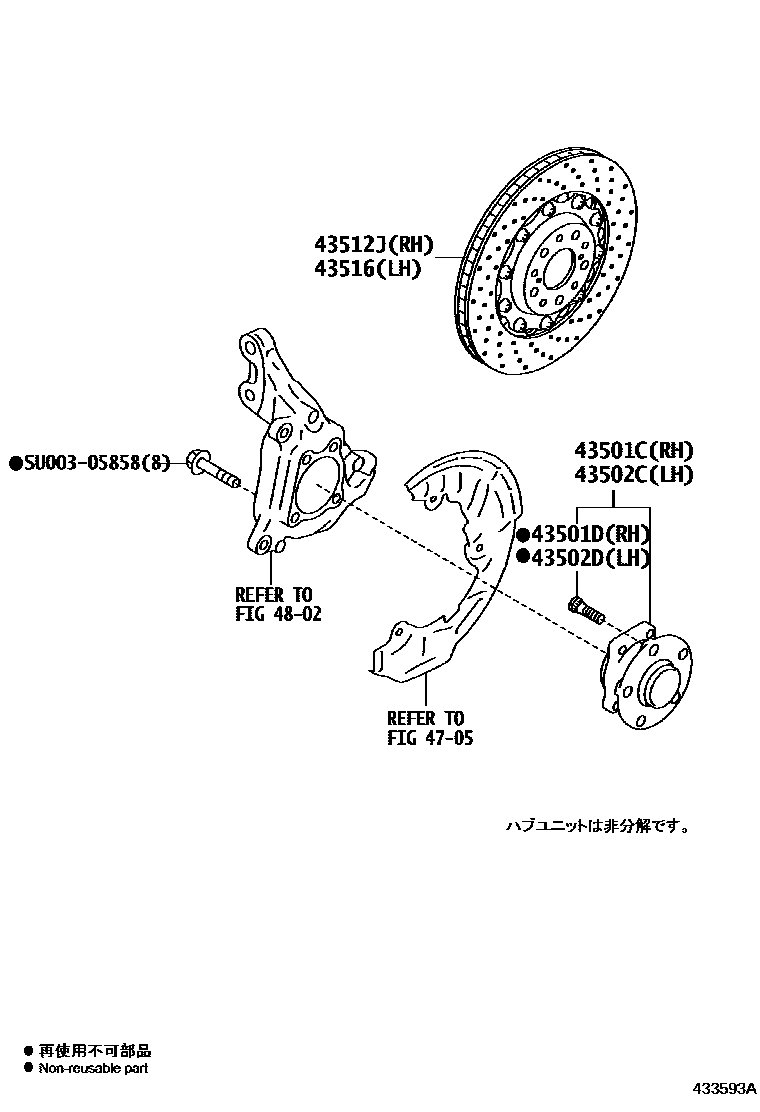

Toyota 86 GRMN — FRONT AXLE HUB

43501CHUB SUB-ASSY, FRONT AXLE, RH

mainSU00300782i201602

43501DBOLT, HUB (FOR FRONT AXLE RH)

mainSU00300781×5i201602

43502CHUB SUB-ASSY, FRONT AXLE, LH

mainSU00300782i201602

43502DBOLT, HUB (FOR FRONT AXLE LH)

mainSU00300781×5i201602

43512JDISC, FRONT RH

main43512-18010i201602

43516DISC, FRONT LH

main43516-18010i201602

SU00305858

mainSU003-05858

7 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota 86 GRMN

This section contains 7 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota 86 GRMN. Key components include: HUB SUB-ASSY, FRONT AXLE, RH, BOLT, HUB (FOR FRONT AXLE RH), HUB SUB-ASSY, FRONT AXLE, LH, BOLT, HUB (FOR FRONT AXLE LH), DISC, FRONT RH.
